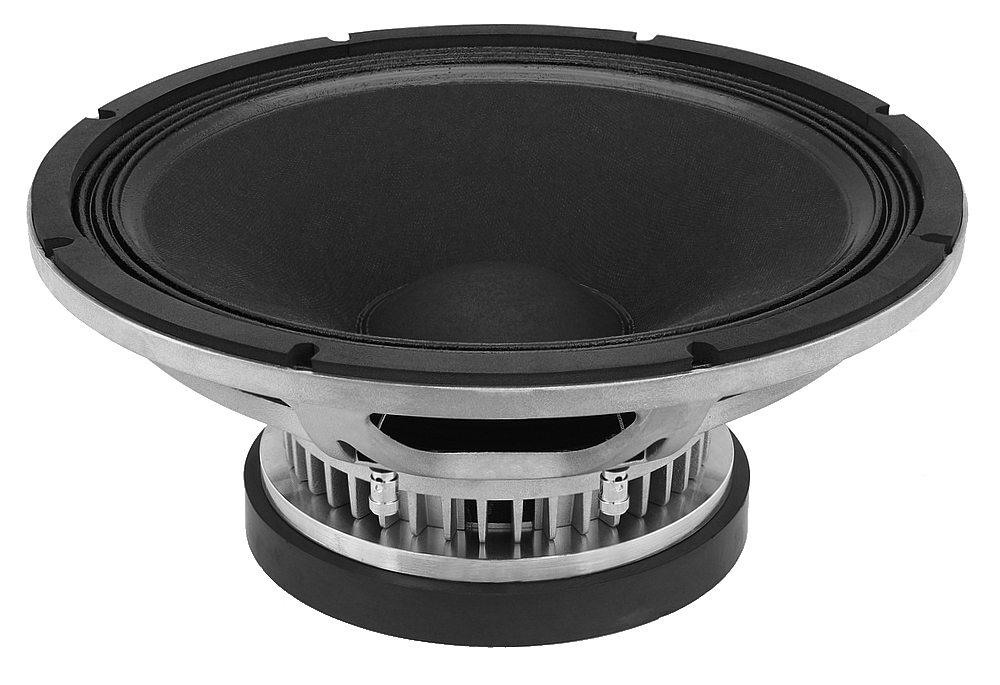

Oberton 15XL600 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
234,00 €*
|
| Bis 4 |
232,00 €*
|
| Bis 6 |
230,00 €*
|
| Ab 7 |
228,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11489
Produktinformationen "Oberton 15XL600 8 Ohm"
- Oberton 15XL600
- 100 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich aluminium voice coil
- 1200 W AES program power
- Powerful, vented 220 mm magnet structure
- Aluminium demodulating ring for lower distortion and improved heat dissipation
- Double silicone spiders for improved excursion control and linearity
Oberton 15XL600 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/385 inch/mm 8 Ohm 6.7 Ohm 600 W 1200 W (200-2000 Hz) 100 dB/W/m 50 – 3000 Hz 100 mm Aluminum Kapton™ 16 mm 11 mm Kevlar Paper Die Cast Aluminium Ferrite 1.25 T |
THIELE-SMALL PARAMETERS
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
40.9 Hz 10.9 0.220 0.216 150.32 Litres 96.91 grams 5.40Ohms 829.6 cm2 ±5.25 mm 0.156 mm/N 24.70 T.m 1.09 mH |

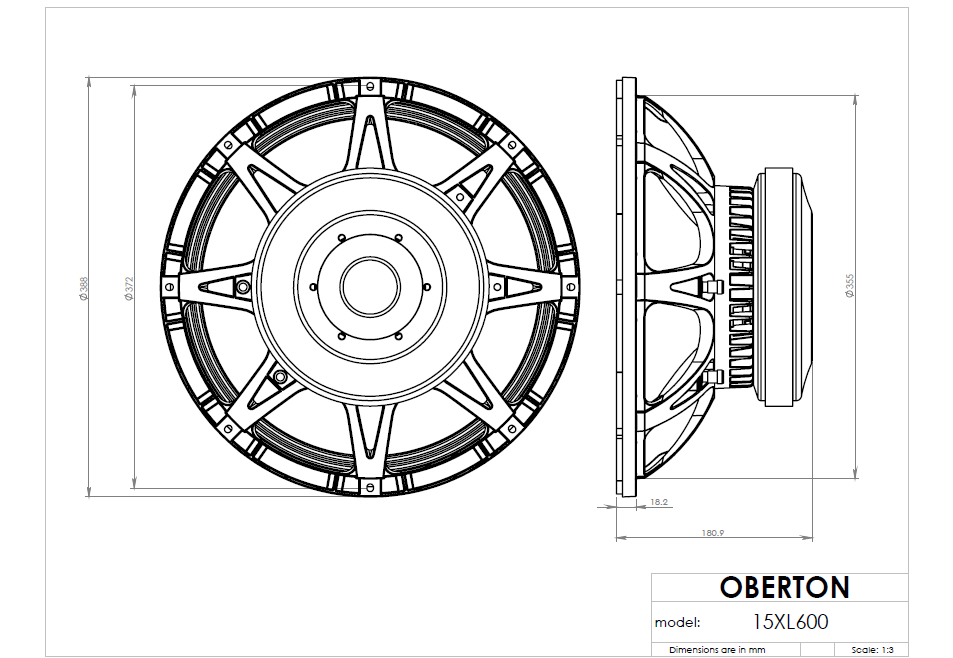

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 355 mm 8 with dia. 7mm 370/372 mm 181 mm 10.85 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
