Oberton 15XL400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
186,00 €*
|
| Bis 4 |
184,00 €*
|
| Bis 6 |
183,00 €*
|
| Ab 7 |
181,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11493
Produktinformationen "Oberton 15XL400 8 Ohm"

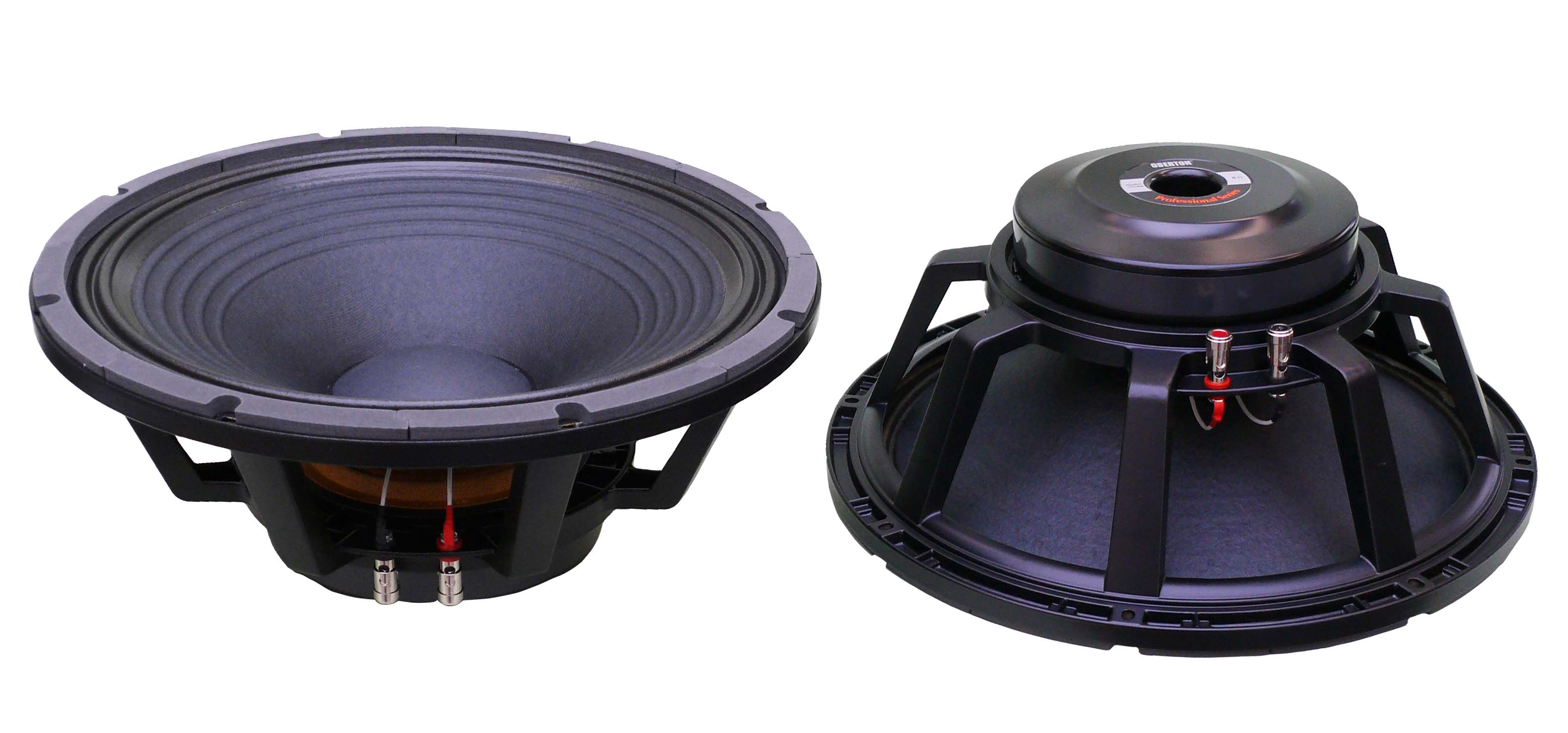

- Oberton 15XL400
- 102 db 1W / 1m average sensitivity
- 77 mm high temperature aluminium voice coil
- 800 W AES program power
- Powerful, ferrite 180 mm magnet structure
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 15XL400 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/388 inch/mm 8 Ohm 6.39 Ohm 400 W 800 W (200-2000 Hz) 102 dB/W/m 50 - 3500 Hz 77 mm Aluminium Kapton™ 15 mm 9 mm Paper with glassfiber Die cast aluminium Ferrite 1.33 T |
THIELE-SMALL PARAMETERS 15XL400
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
48.78 Hz 9.30 0.350 0.337 140.00 Litres 73.05 grams 5.6 Ohms 829.6 cm2 ± 5.25 mm 0.146 mm/N 18.92 T.m 0.76 mH |

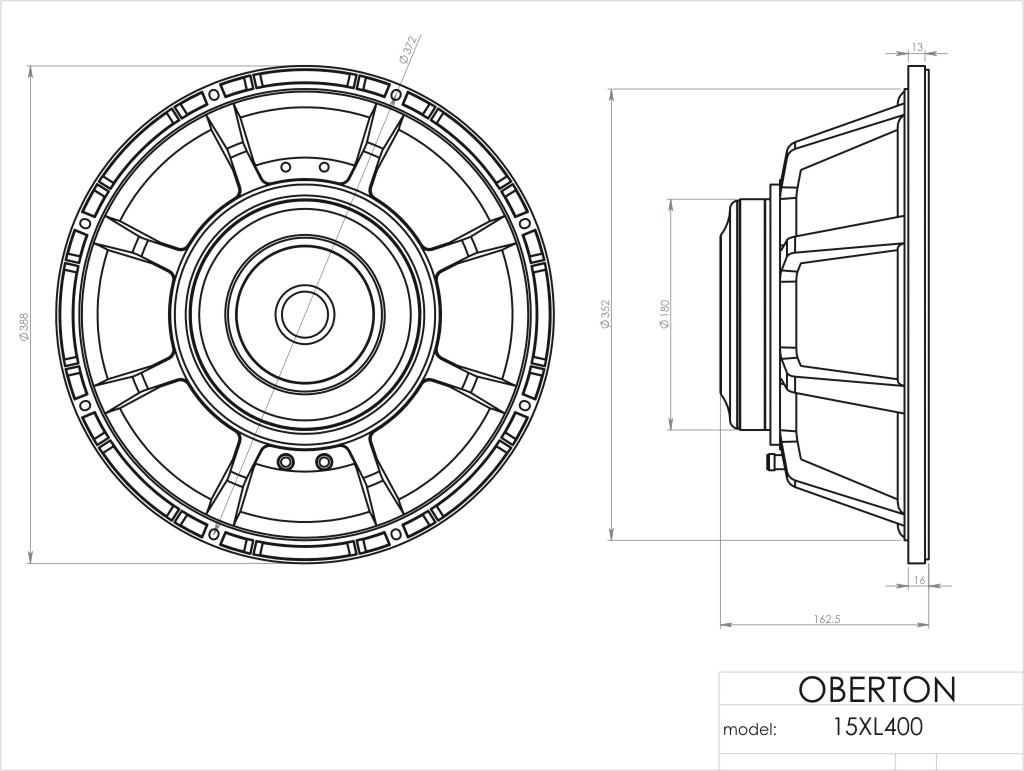

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 352 mm 8 eliptic 7x8 mm 370/372 mm 162.5 mm 7.5 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
