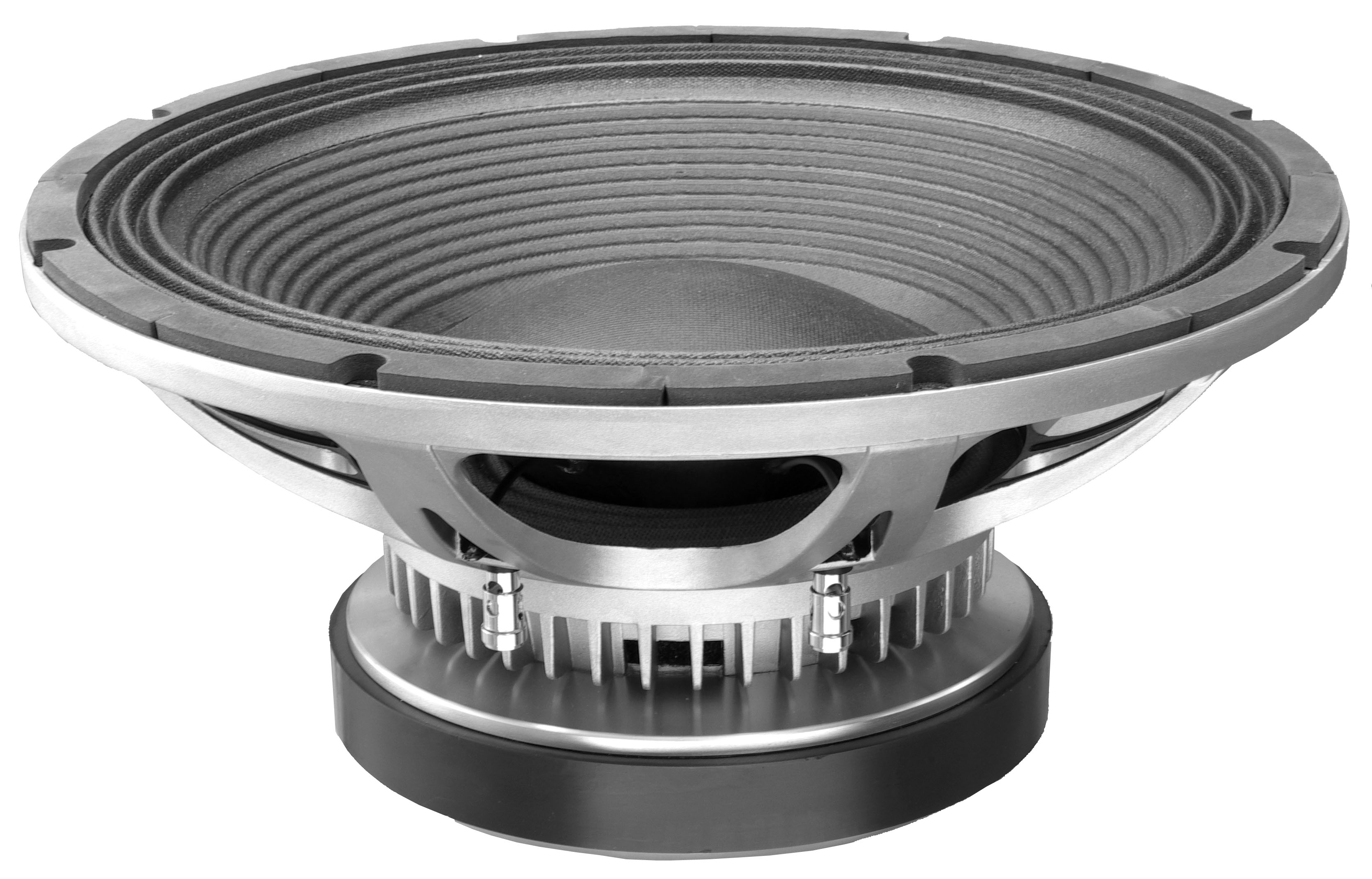

Oberton 15XB1200 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
241,00 €*
|
| Bis 4 |
239,00 €*
|
| Bis 6 |
237,00 €*
|
| Ab 7 |
235,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11487
Produktinformationen "Oberton 15XB1200 8 Ohm"
- Oberton 15XB1200
- 95 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 2400 W AES program power
- Powerful, vented 220 mm magnet structure
- Double silicone spiders for improved excursion control and linearity
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Water protected cone (front)
Oberton 15XB1200 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/385 inch/mm 8 Ohm 6.52 Ohm 1200 W 2400 W (100-200 Hz) 95 dB/W/m 39 - 2000 Hz 100 mm Copper Glassfiber 29 mm 10 mm Paper with carbone fibers Die cast aluminium Ferrite 1.25 T |
THIELE-SMALL PARAMETERS 15XB1200
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
39.81 Hz
7.84
0.321
0.308
108.5 Litres
141.53 grams
5.20 Ohms
829.6 cm2
±12 mm
0.1129
23.95 T.m
1.36 mH
|

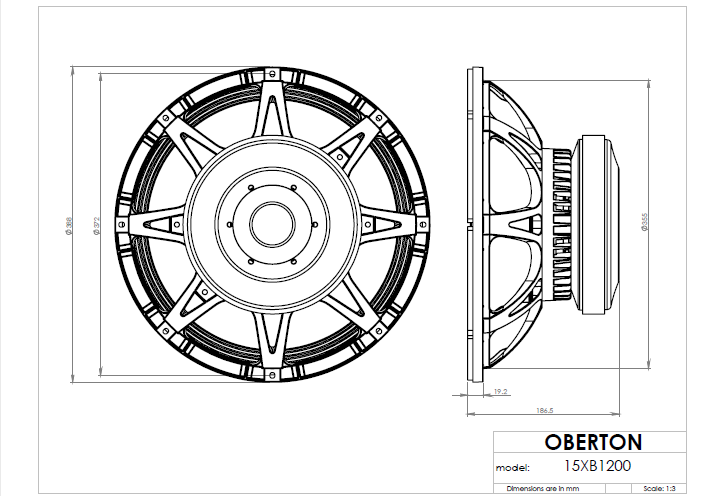

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 355 mm 8 with dia. 7mm 370 / 372 mm 186.5 mm 12.82 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
