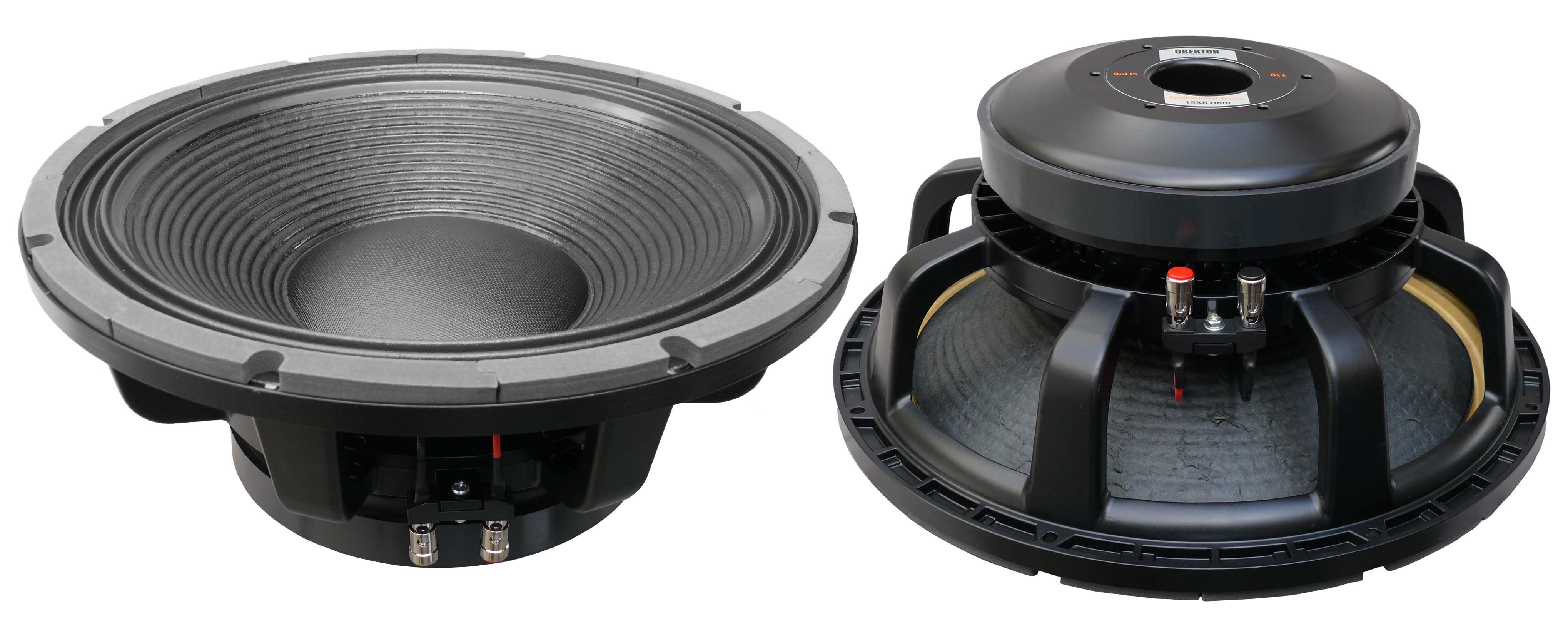

Oberton 15XB1000 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
287,00 €*
|
| Bis 4 |
284,00 €*
|
| Bis 6 |
282,00 €*
|
| Ab 7 |
279,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11488
Produktinformationen "Oberton 15XB1000 8 Ohm"
- Oberton 15XB1000
- 97 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 2000 W AES program power
- Powerful, vented 220 mm magnet structure
- Aluminium demodulating ring for lower distortion and improved heat dissipation
- Water protected cone (front)
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 15XB1000 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/385 inch/mm 8 Ohm 7.05 Ohm 1000 W 2000 W (100-200 Hz) 97 dB/W/m 37 - 2000 Hz 100 mm Copper Glassfiber 25 mm 14 mm Kevlar paper Die cast aluminium Ferrite 0.98 T |
THIELE-SMALL PARAMETERS 15XB1000
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
37.2 Hz 9.2 0.292 0.283 111.02 Litres 158.39 grams 5.19 Ohms 829.6 cm2 ±9 mm 0.115 25.64 T.m 1.9 mH |

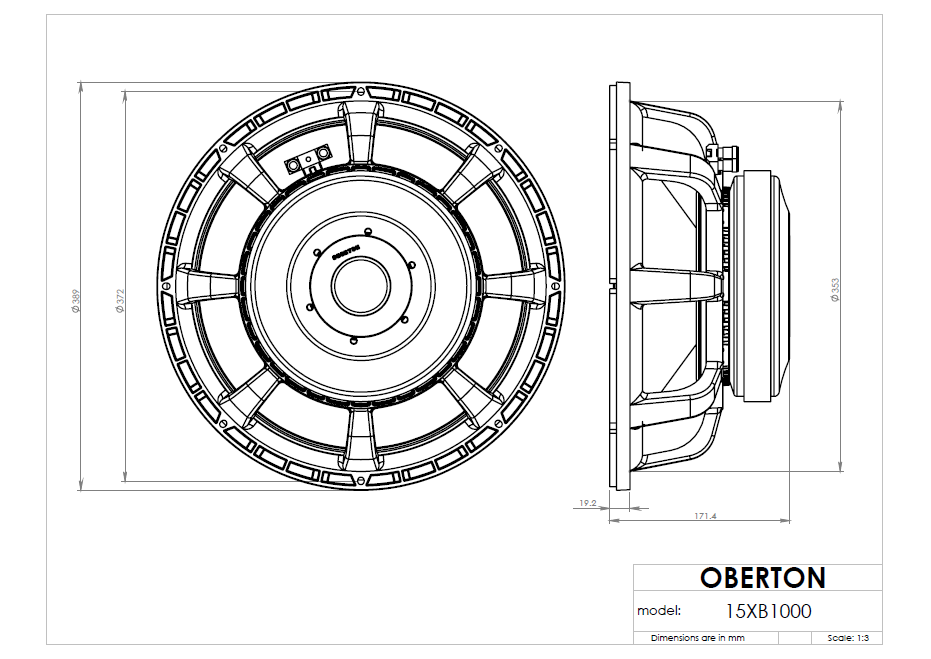

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
389 mm 353 mm 8 with dia. 7mm 372 mm 171.4 mm 13.15 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
| TSP Qts: | 0,251 - 0,30 |
| TSP X-MAX (mm): | 5,1 - 10,0 mm |
