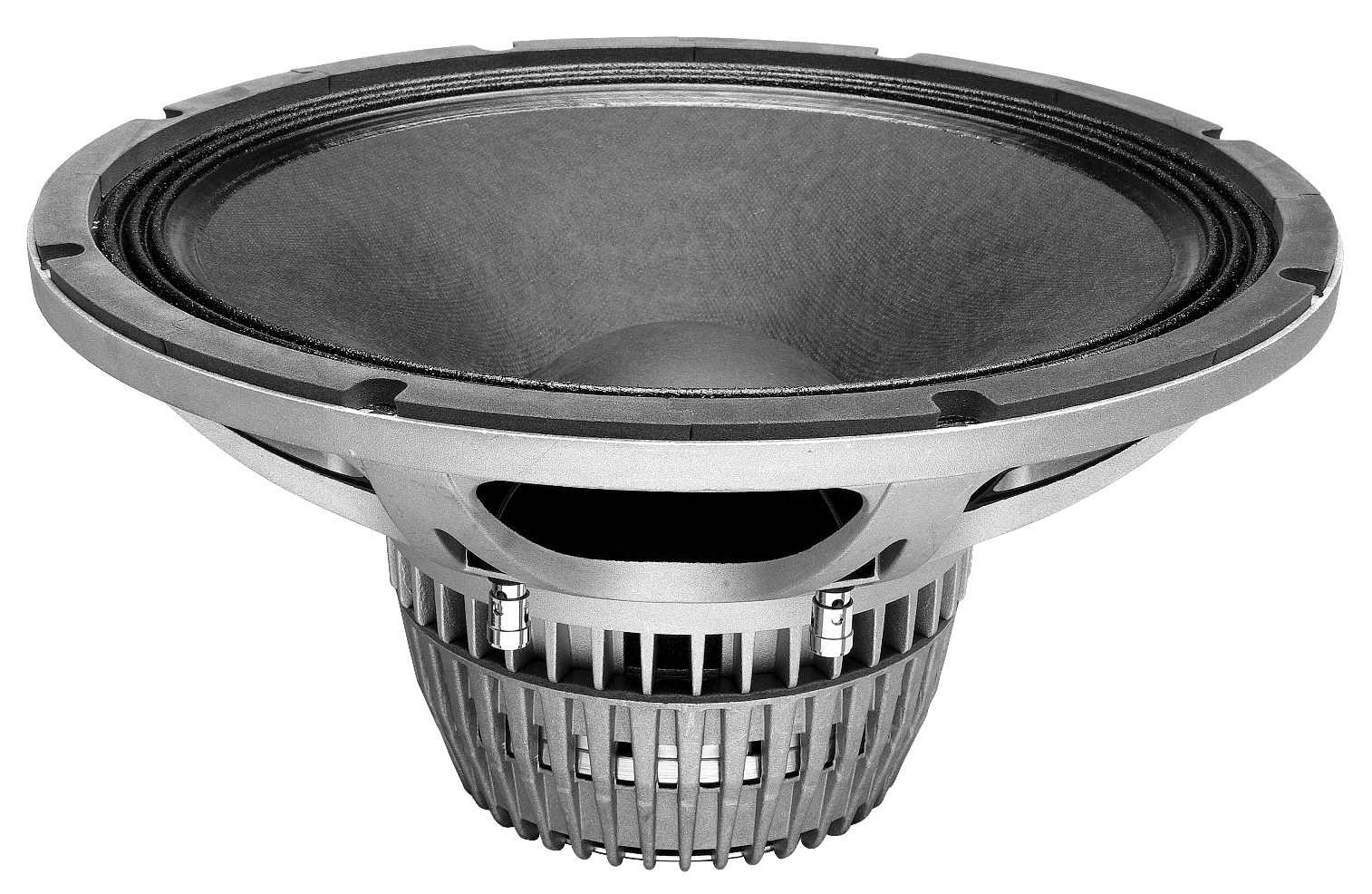

Oberton 15NXL700 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
411,00 €*
|
| Bis 4 |
408,00 €*
|
| Bis 6 |
404,00 €*
|
| Ab 7 |
400,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11463
Produktinformationen "Oberton 15NXL700 8 Ohm"
- Oberton 15NXL700
- 99 db 1W / 1m average sensitivity
- 100 mm high temperature aluminium voice coil
- 1400 W AES program power
- Vented neodymium magnet assembly
- Three aluminium demodulating rings for lower distortion and improved heat dissipation
- Double silicone spider
Oberton 15NXL700 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

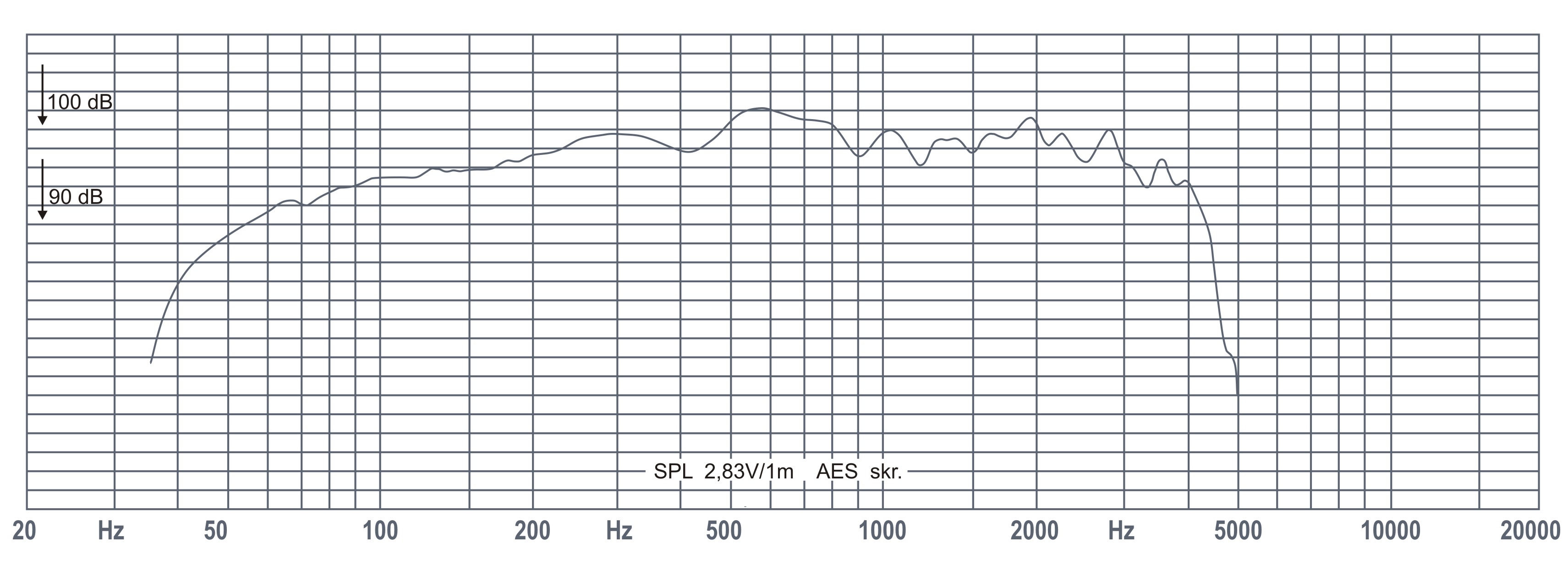

15"/388 inch/mm 8 Ohm 6.45 Ohm 700 W 1400 W (200-2000 Hz) 99 dB/W/m 45 - 3000 Hz 100 mm Aluminium Glassfiber 23 mm 9 mm Paper with Glassfiber Die Cast Aluminium Neodymium 1.1 T |
THIELE-SMALL PARAMETERS 15NXL700
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
43.4 Hz 8.45 0.312 0.30 127.09 litres 101.61 grams 5.30 Ohms 829.6 cm2 ± 9.25 mm 0.1323 mm/N 21.71 T.m 0.52 mH |

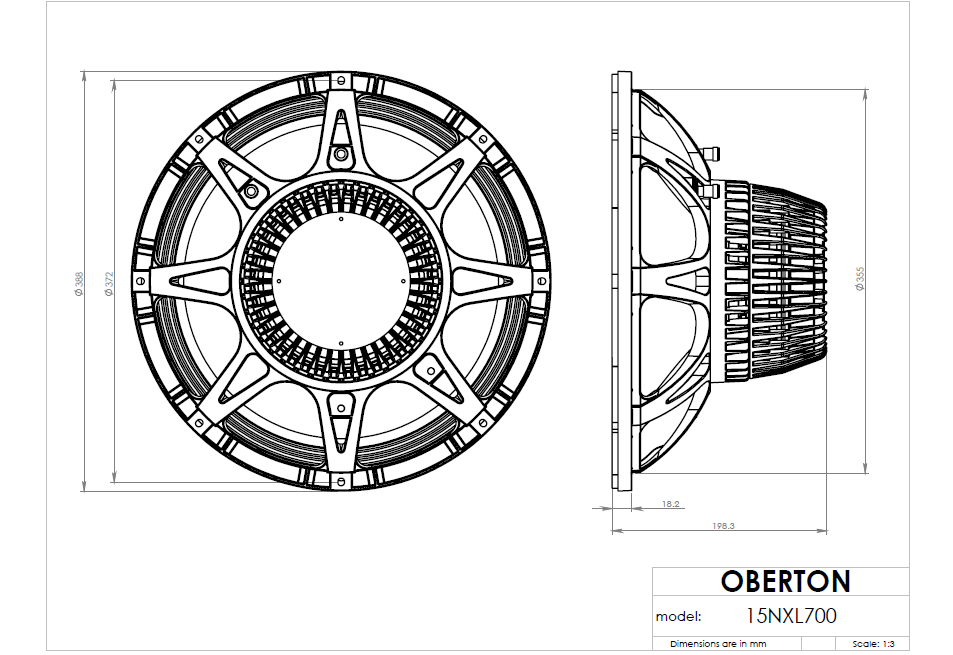

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 355 mm 8 eliptic 7x8 mm 370/372 mm 198 mm 7.9 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
