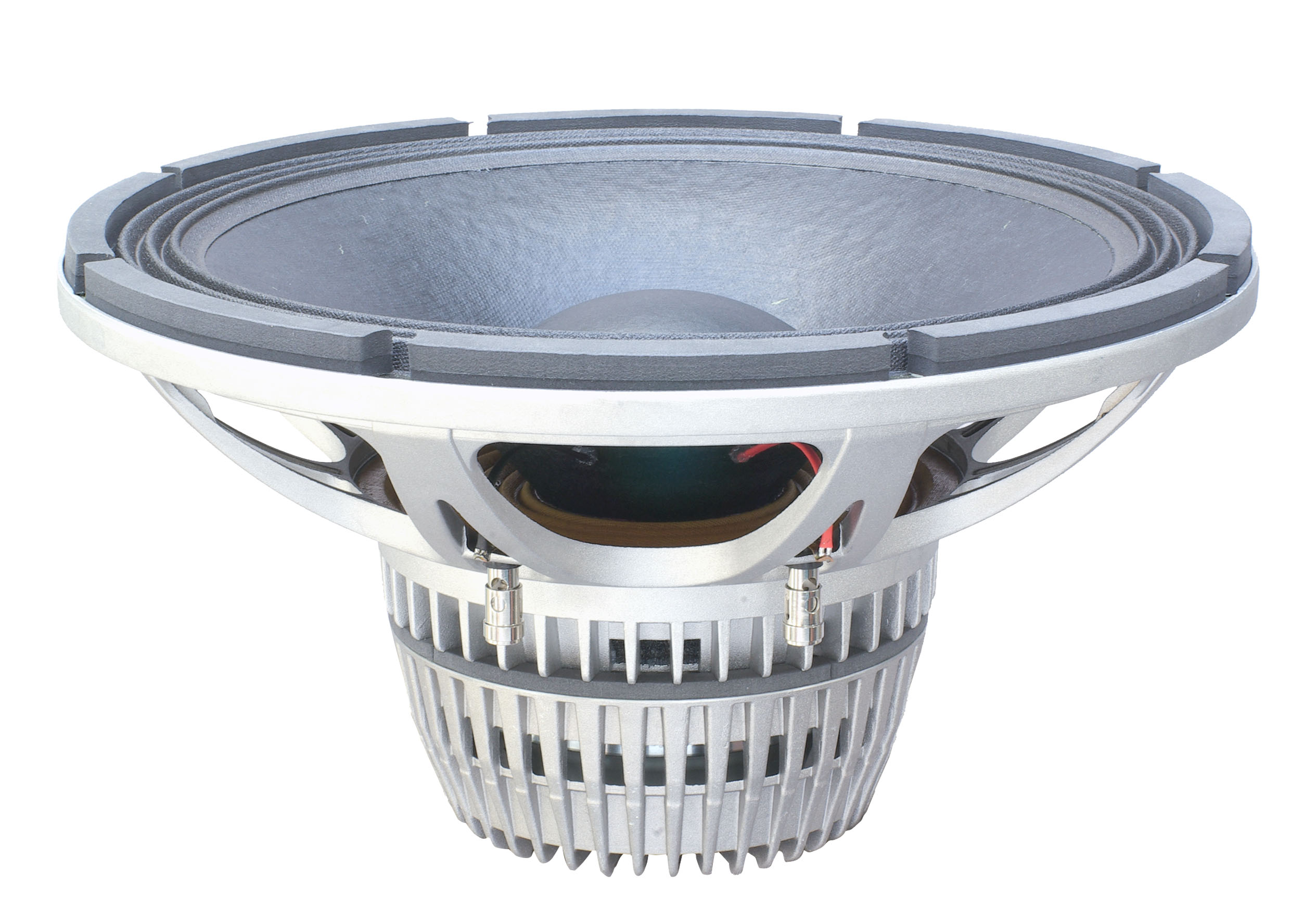

Oberton 15NSW600 8 Ohm

Produktinformationen "Oberton 15NSW600 8 Ohm"

  • Oberton 15NSW600
  • 95 db 1W / 1m average sensitivity
  • 77 mm high temperature sandwich voice coil
  • 1200 W AES program power
  • Vented neodymium magnet assembly with massive heatsink
  • Double aluminium demodulating rings for lower distortion and improved heat dissipation
  • Double silicon spider for improved excursion control and linearity
  • Water protected cone (front)

Oberton 15NSW600 8 Ohm SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Peak Power ³

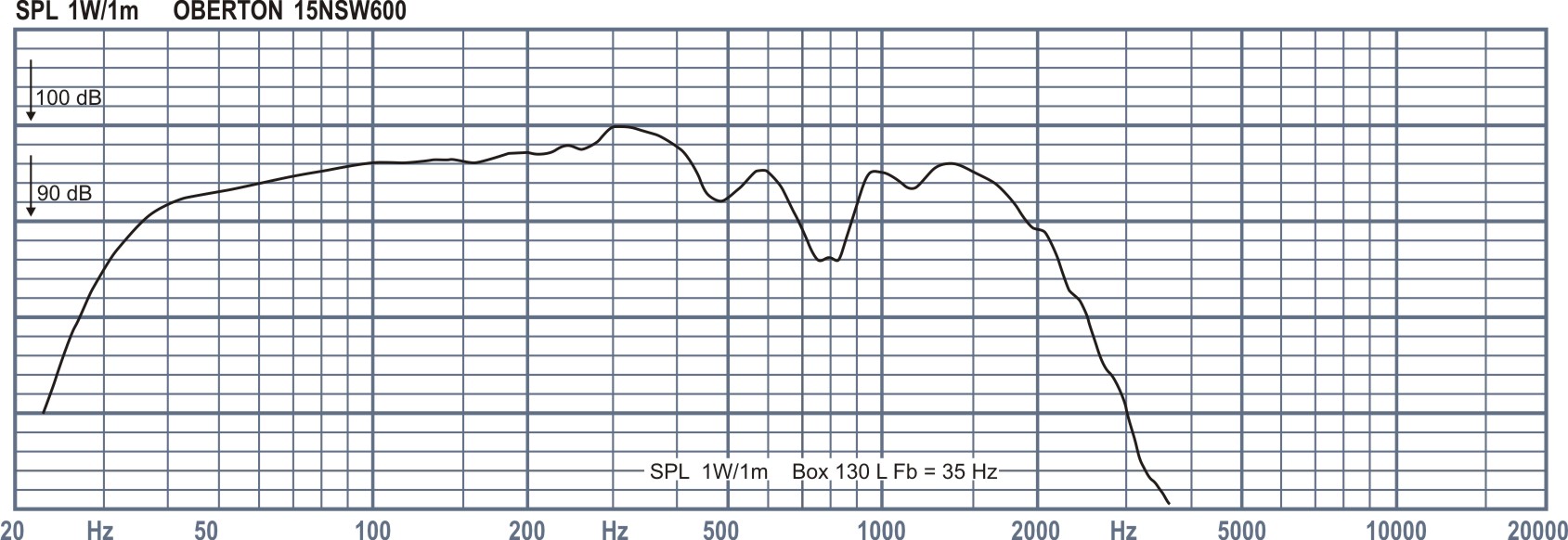

Sensitivity
Frequency Range
V. C. Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
15"/388 inch/mm
8 Ohm
7.82 Ohm
600 W
1200 W
4800 W
(50-200 Hz) 95 dB/W/m
35 - 1000 Hz
77 mm
Copper Clad Aluminium
Glassfiber
34 mm
11 mm
Kevlar paper
Die Cast Aluminium
Neodymium
1.23 T


THIELE-SMALL PARAMETERS 15NSW600

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz

36.51 Hz
8.44
0.304
0.293
148.39 litres
123.05 grams
5.90 Ohms
829.6 cm2
±14.25 mm
0.1544 mm/N
23.41 T.m
0.80 mH

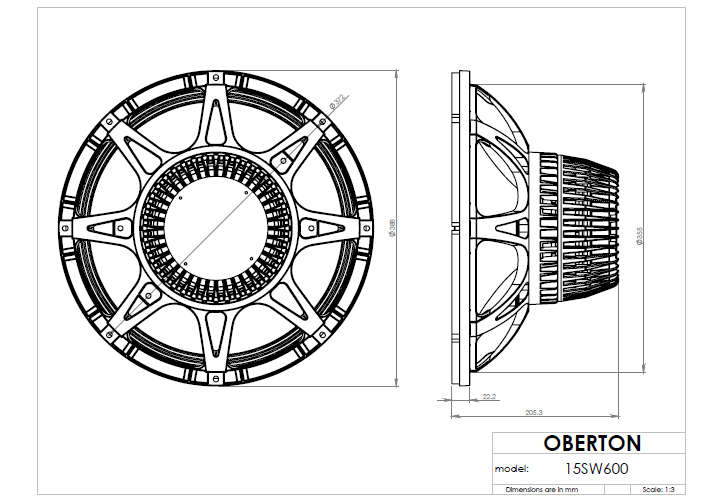

MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
388 mm
355 mm
8 eliptic 7x8 mm
370/372 mm
205.3 mm
7.15 kg
Coaxial: NEIN
Größe: 15"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 10,1 - 15,0 mm
