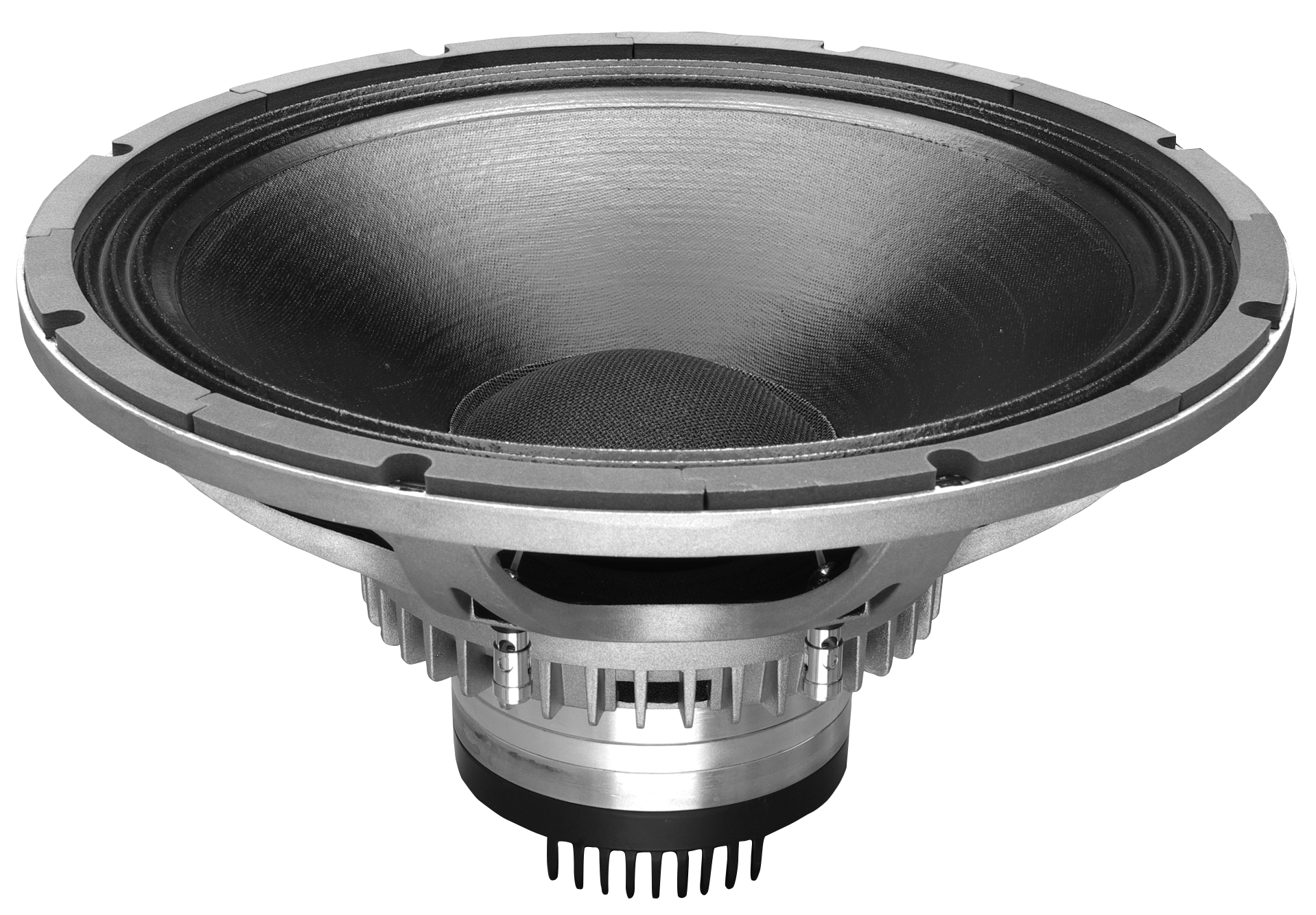

Oberton 15NCX 8 Ohm

Produktinformationen "Oberton 15NCX 8 Ohm"
  • Oberton 15NCX
  • 100 db SPL 1W / 1m ( LF ) average sensitivity
  • 77 mm ( 3”) high temperature voice coil ( LF )
  • 900 W AES program power ( LF )
  • Triple aluminium demodulating rings
  • Silicon spider
  • Water protected cone
  • 1.4” exit HF neodymium compression driver
  • 72 mm (2.85”) HF high temperature voice coil
  • 80 degrees nominal dispersion
  • Very light weight

Oberton 15NCX 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V.C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density
388 mm (15 in)
LF 8 Ohm /HF 16 Ohm
6.20 Ohm
50 - 16000 Hz
80 deg


100 dB
450 W
900 W
77 mm (3 in)
Copper
Kapton
20 mm
9 mm.
Paper with glassfiber
Die Cast Aluminium
Neodymium
1.1 T


11.59 Ohms
10 Ohms
106 dB
80 W
160 W
72 mm (2.85 in)
Aluminium
cotton composite
1.85 T


THIELE-SMALL PARAMETERS 15NCX

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
43.74 Hz
10.02
0.375
0.36
138.45 L
91.88 g
5.10 Ohms
829 cm2
± 7.75 mm
0.144 mm/N
18.55 T.m
0.776 mH

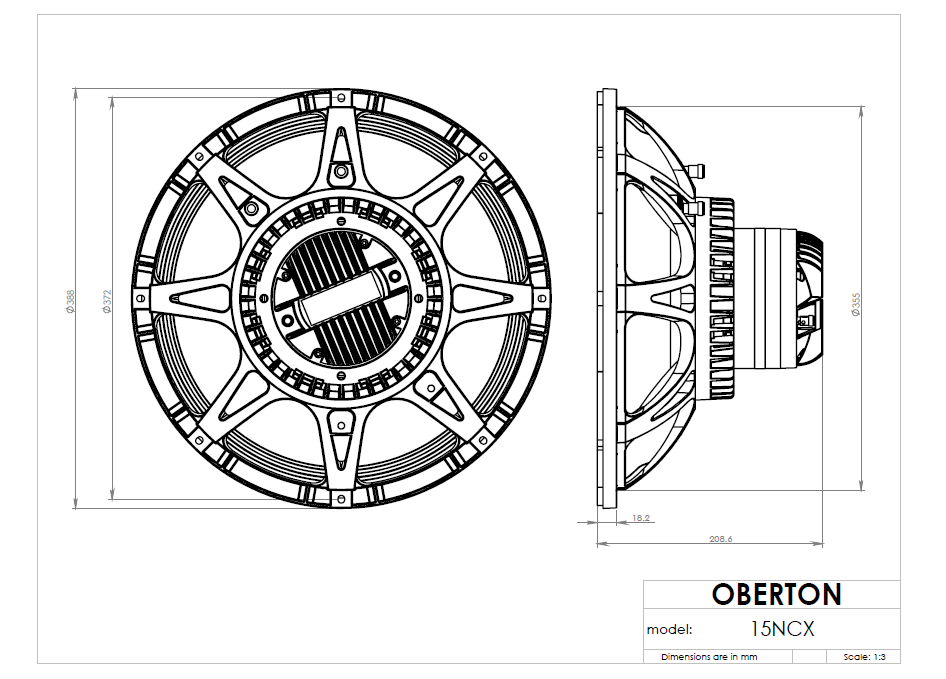

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Мounting holes
Net weight
388 mm (15 in)
208.6 mm
355 mm
370/372 mm
8 eliptic 7x8 mm
5.65 kg
Coaxial: JA
Diaphragma / Dome: Aluminium / Cotton / Sonstige
Größe: 15"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
