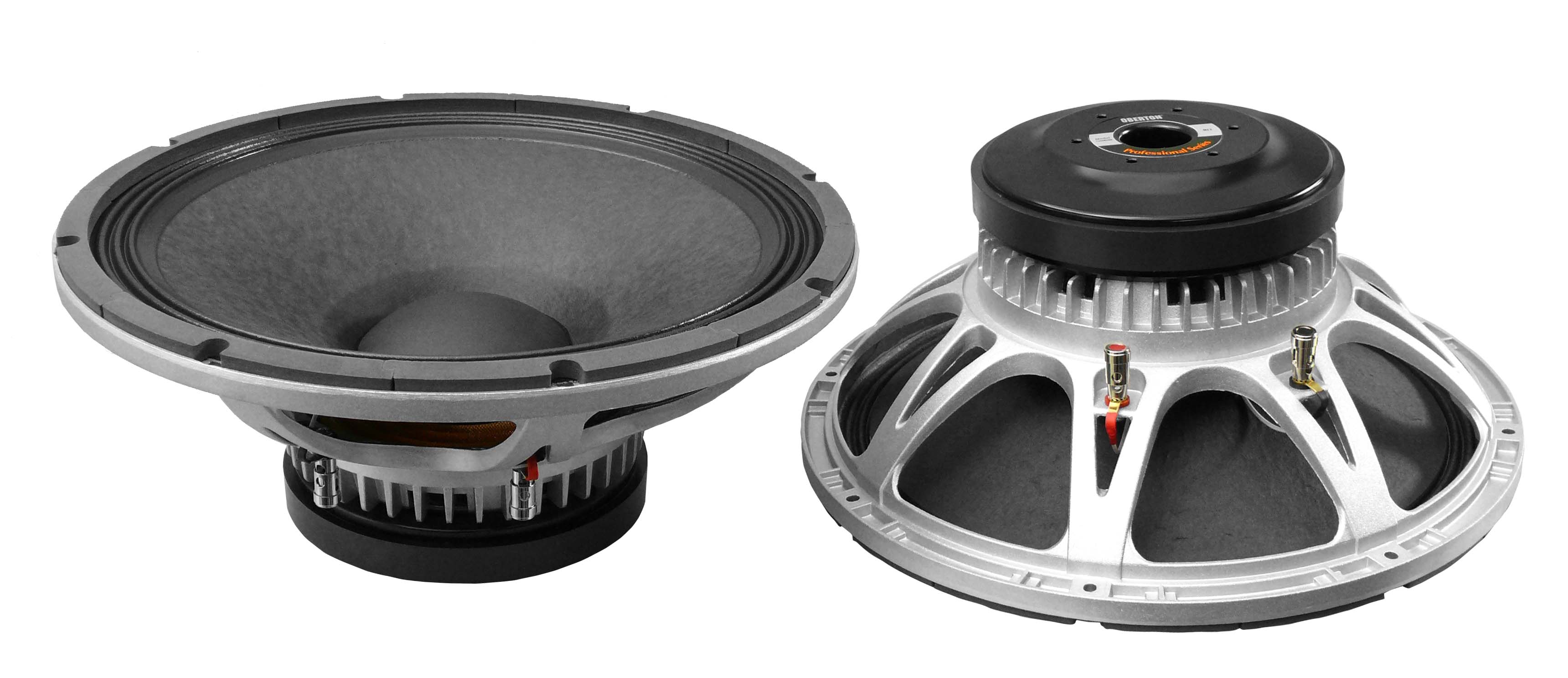

Oberton 15MB500 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
196,00 €*
|
| Bis 4 |
194,00 €*
|
| Bis 6 |
192,00 €*
|
| Ab 7 |
191,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11491
Produktinformationen "Oberton 15MB500 8 Ohm"
- Oberton 15MB500
- 100 db 1W / 1m average sensitivity
- 77 mm high temperature aluminium voice coil
- 1000 W AES program power
- Powerful, vented 180 mm magnet structure
- Double aluminium demodulating ring for lower distortion and improved heat dissipation
- Double silicone spiders for improved excursion control and linearity
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 15MB500 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/385 inch/mm 8 Ohm 6.27 Ohm 500 W 1000 W (200-2000 Hz) 100 dB/W/m 50 – 3000 Hz 77 mm Aluminum Kapton™ 21 mm 11 mm Paper with glassfiber Die Cast Aluminium Ferrite 1.20 T |
THIELE-SMALL PARAMETERS 15MB500
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
41.50 Hz 12.85 0.349 0.339 161.54 Litres 87.50 grams 5.25 Ohms 829.6 cm2 ± 7.75 mm 0.168 mm/N 18.54 T.m 0.92 mH |

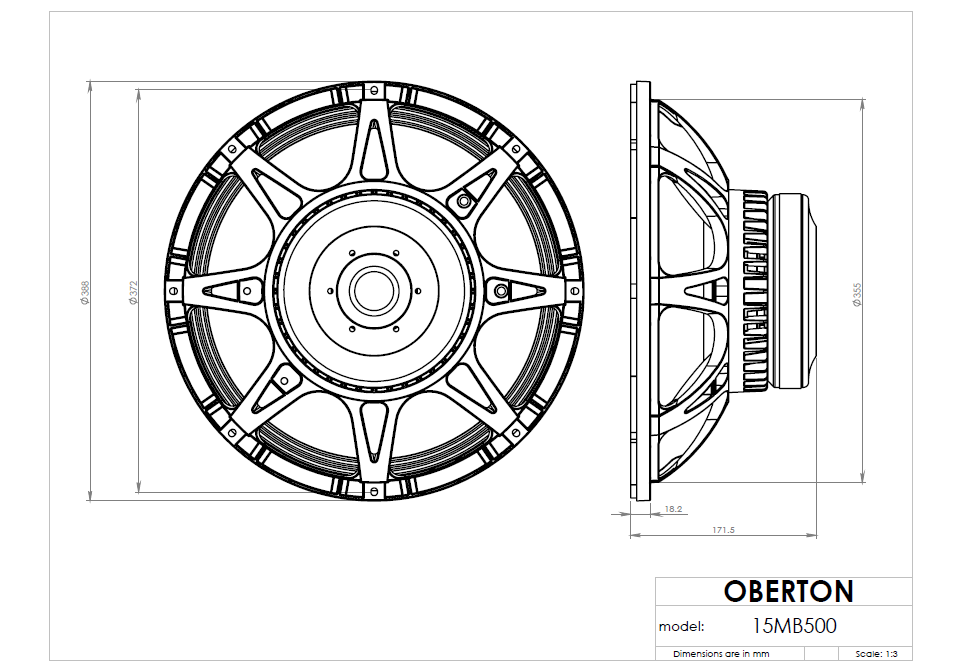

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 355 mm 8 with dia. 7mm 370/372 mm 171.5 mm 7.8 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
