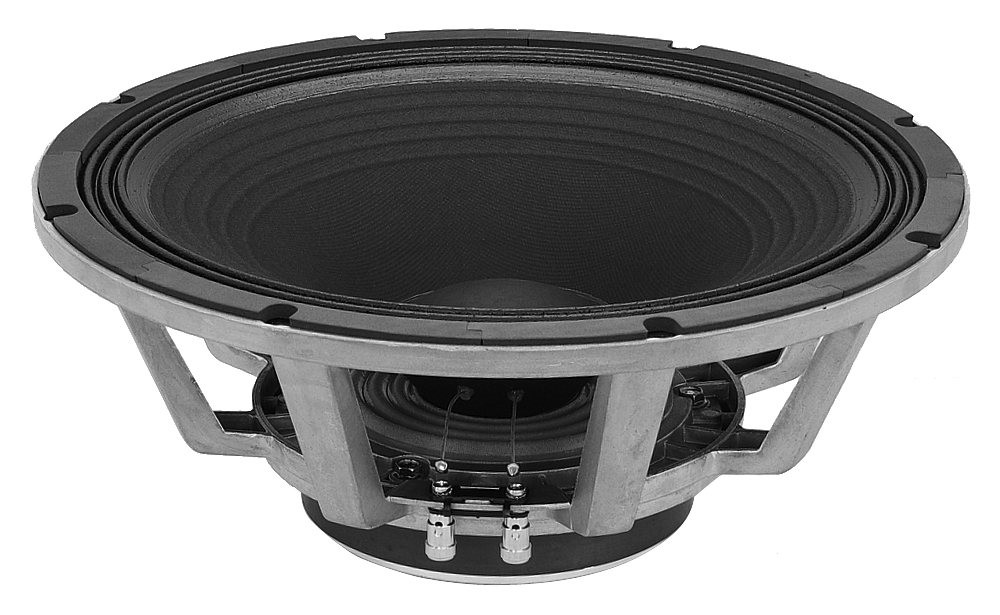

Oberton 15L400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
177,00 €*
|
| Bis 4 |
176,00 €*
|
| Bis 6 |
174,00 €*
|
| Ab 7 |
173,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11494
Produktinformationen "Oberton 15L400 8 Ohm"
- Oberton 15L400
- 102.5 db 1W / 1m average sensitivity
- 64 mm high temperature aluminium voice coil
- 800 W AES program power
- Powerful, ferrite 180 mm magnet structure
- Silicone spider
Oberton 15L400 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/381 inch/mm 8 Ohm 6.23 Ohm 400 W 800 W (200 – 2000)Hz 102.5 dB/W/m 45 - 4000 Hz 64 mm Aluminium Kapton™ 11 mm 9 mm Paper Die cast aluminium Ferrite 1.35 |
THIELE-SMALL PARAMETERS 15L400
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
43.25 Hz 11.56 0.294 0.287 229.90 Litres 56.60 grams 5.45 Ohms 829.6 cm2 ±3.25 mm 0.239 mm/N 16.87 T.m 0.62 mH |

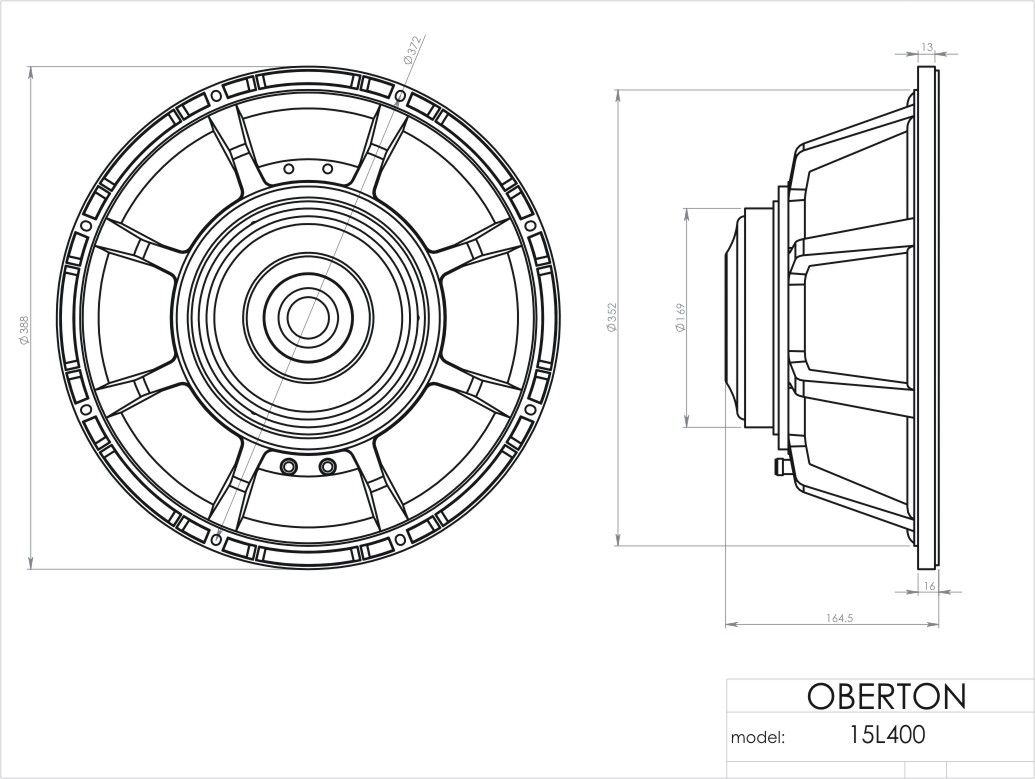

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 352 mm 8 eliptic 7x8 mm 370/372 mm 164.5 mm 7.25 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
