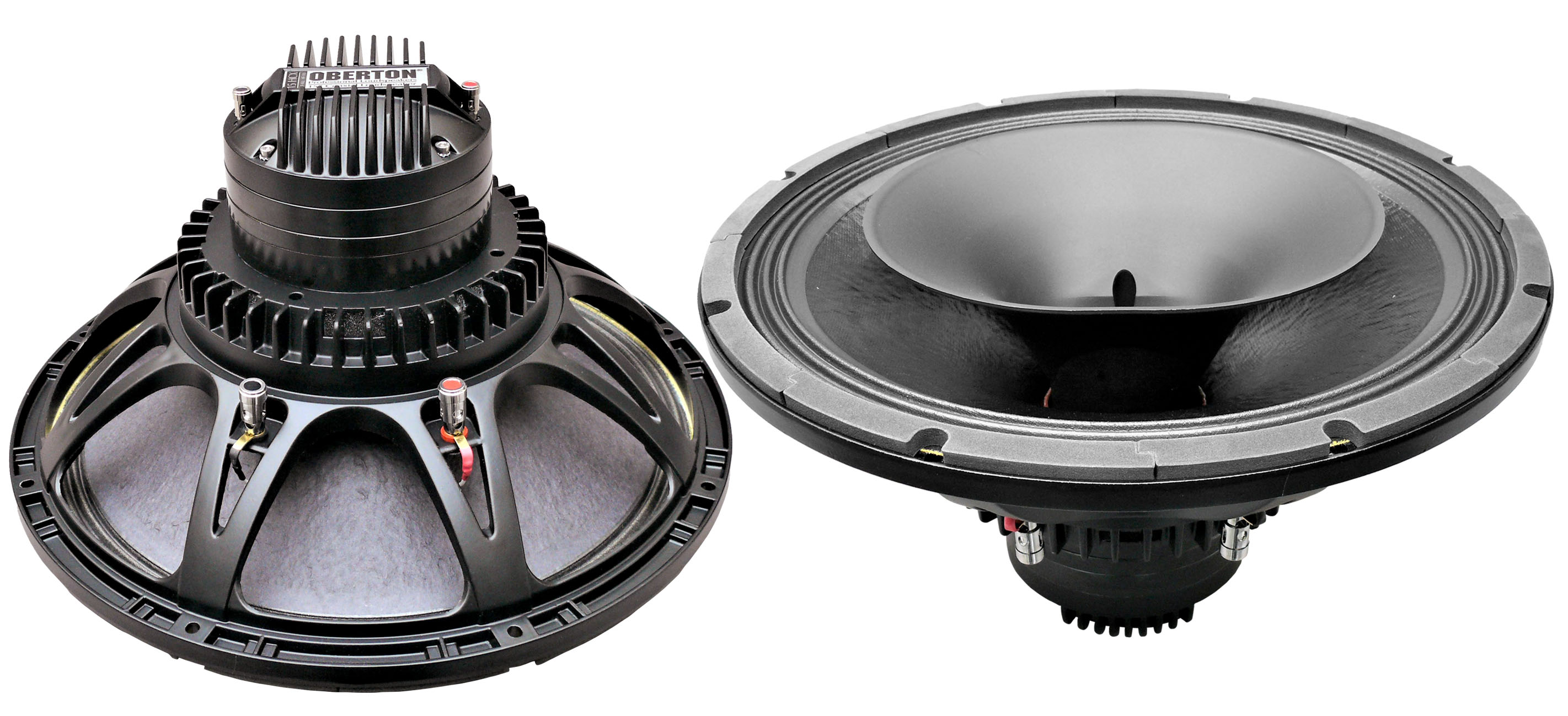

Oberton 15HCX 8 Ohm

Produktinformationen "Oberton 15HCX 8 Ohm"

  • Oberton 15HCX
  • 99 db SPL 1W / 1m ( LF ) average sensitivity
  • 77 mm ( 3”) high temperature voice coil ( LF )
  • 900 W AES program power ( LF )
  • Triple aluminium demodulating rings
  • Silicone spider
  • Water protected cone
  • 1.4” exit HF neodymium compression driver
  • 72 mm (2.85”) HF high temperature voice coil
  • Integrated 80 x 60 deg. dispersion horn
  • Very light weight
  • Epoxy anti-corrosion coating of top and back plates of magnet structure

Oberton 15HCX 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF

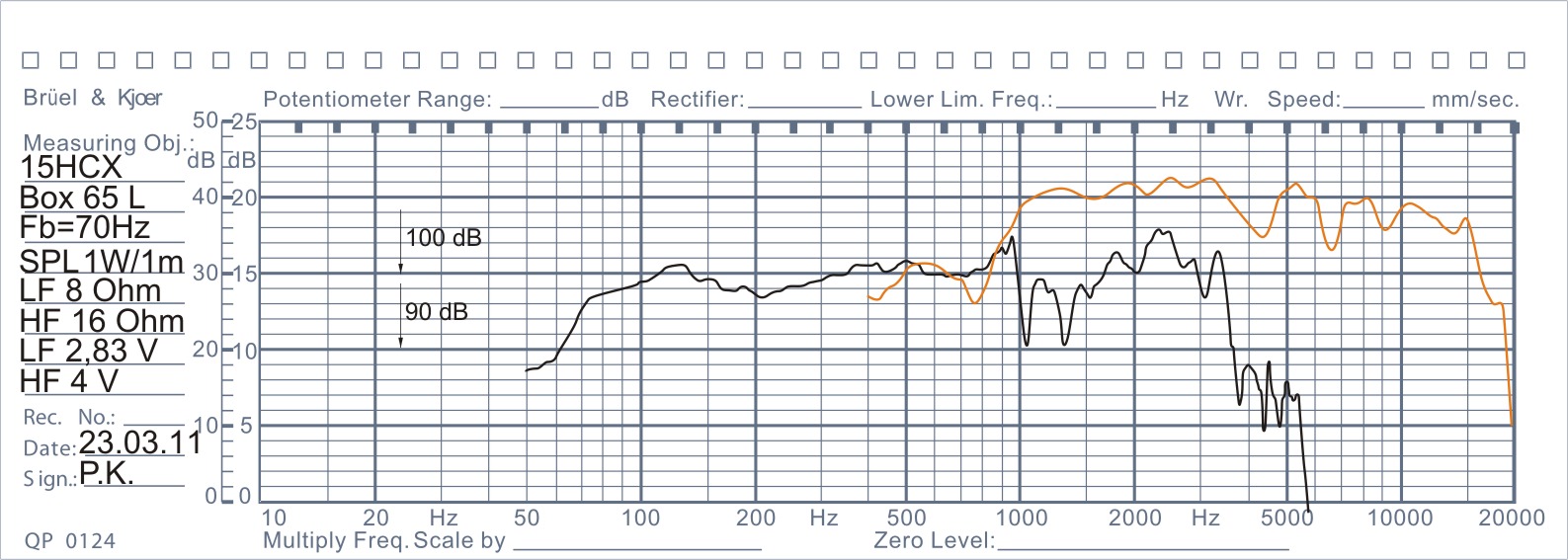

Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density
388 mm (15 in)
LF 8 Ohm /HF 16 Ohm
6.18 Ohm
50 - 16000 Hz
80 x 60 deg


99 dB
450 W
900 W
77 mm (3 in)
Copper
Kapton
20 mm
9 mm
Paper with glassfiber
Die Cast Aluminium
Neodymium
1.1 T


11.10 Ohms
10 Ohms
110 dB
80 W
160 W
72 mm (2.85 in)
Aluminium
Cotton composite
1.85 T


THIELE-SMALL PARAMETERS 15HCX

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
40.72 Hz
6.1
0.316
0.30
205.54 L
71.41 g
5.05 Ohms
829 cm2
± 7.75 mm
0.214 mm/N
17.08 T.m
0.642 mH

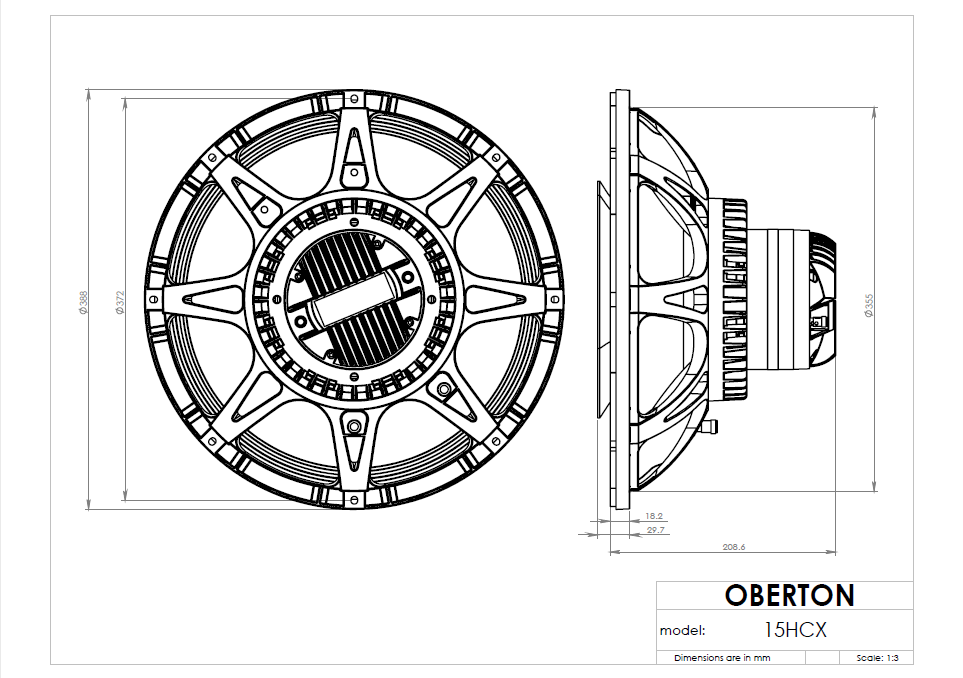

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight
388 mm (15 in)
220 mm
355 mm
370/372 mm
8 eliptic 7x8 mm
6.6 kg
Coaxial: JA
Diaphragma / Dome: Aluminium / Cotton / Sonstige
Größe: 15"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
