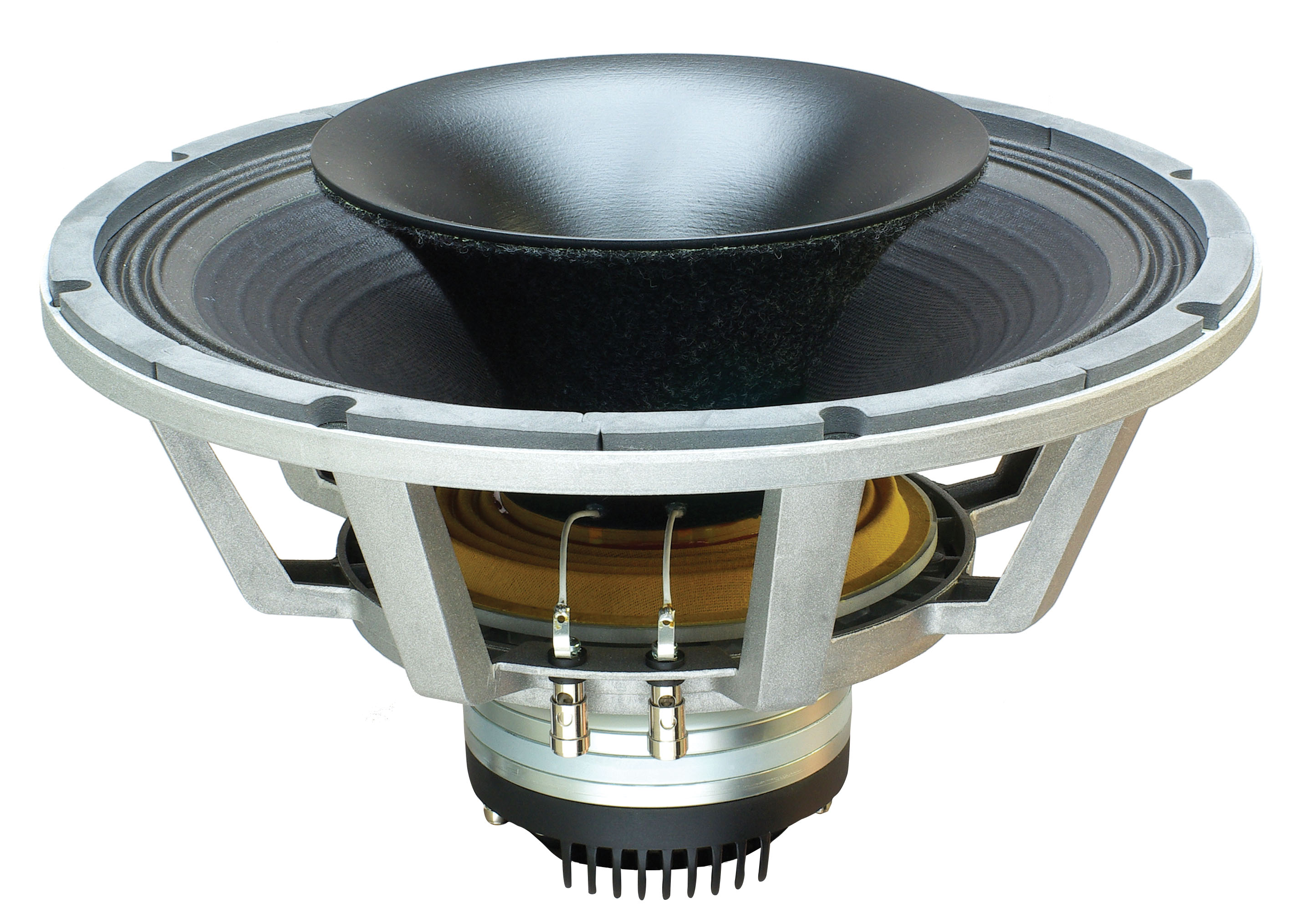

Oberton 15H4CX72 8 Ohm

Produktinformationen "Oberton 15H4CX72 8 Ohm"
  • Oberton 15H4CX72
  • 101.5 db SPL 1W / 1m ( LF ) average sensitivity
  • 100 mm ( 4”) high temperature voice coil ( LF )
  • 800 W AES program power ( LF )
  • Aluminium demodulating ring
  • Silicon spider
  • Copper plated pole piece and top plate (LF)
  • Water protected cone - front
  • 1.4” exit HF neodymium compression driver
  • 72 mm (2.85”) HF high temperature voice coil
  • 60 degrees conical integrated horn

Oberton 15H4CX72 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-1000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density
388 mm (15 in)
LF 8 Ohm /HF 16 Ohm
7 Ohm
50 - 18000 Hz
60 deg


101.5 dB
400 W
800 W
100 mm (4 in)
Copper Clad Aluminium
Glassfiber
6 mm
12 mm
Paper
Die Cast Aluminium
Neodymium
1.37 T


11.29 Ohms
10 Ohms
110 dB
100 W
200 W
72 mm (2.85 in)
Copper Clad Aluminium
Hybrid
2 T

THIELE-SMALL PARAMETERS 15H4CX72


Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
56.29 Hz
11.50
0.379
0.367
113.09 L
55.65 g
6.4 Ohms
750 cm2
± 4.5 mm
0.144 mm/N
18.223 T.m
0.381 mH

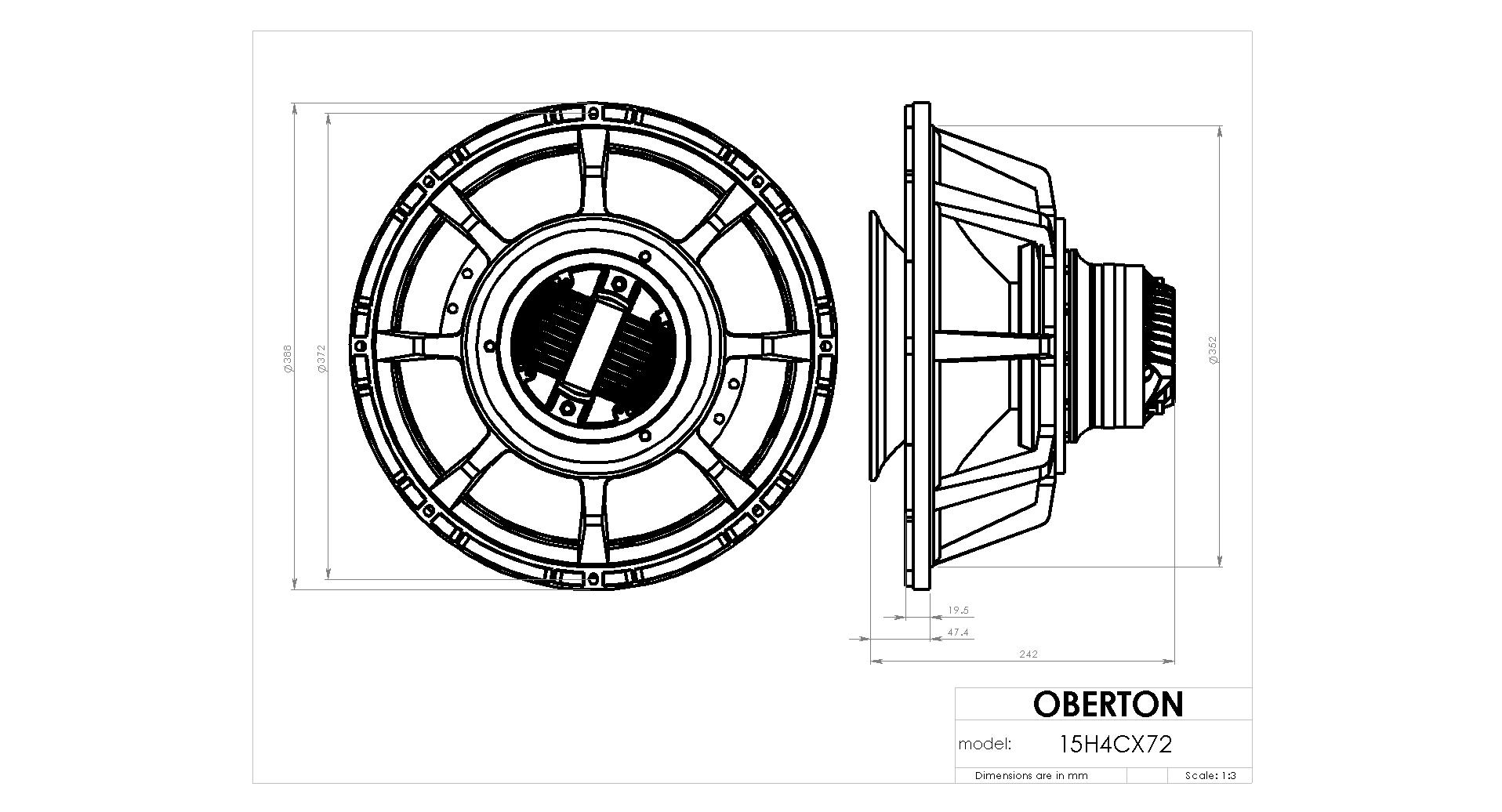

MOUNTING INFORMATION


Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight
388 mm (15 in)
242 mm
352 mm
370/372 mm
8 eliptic 7x8 mm
10.5 kg
Coaxial: JA
Diaphragma / Dome: Aluminium / Cotton / Sonstige
Größe: 15"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
