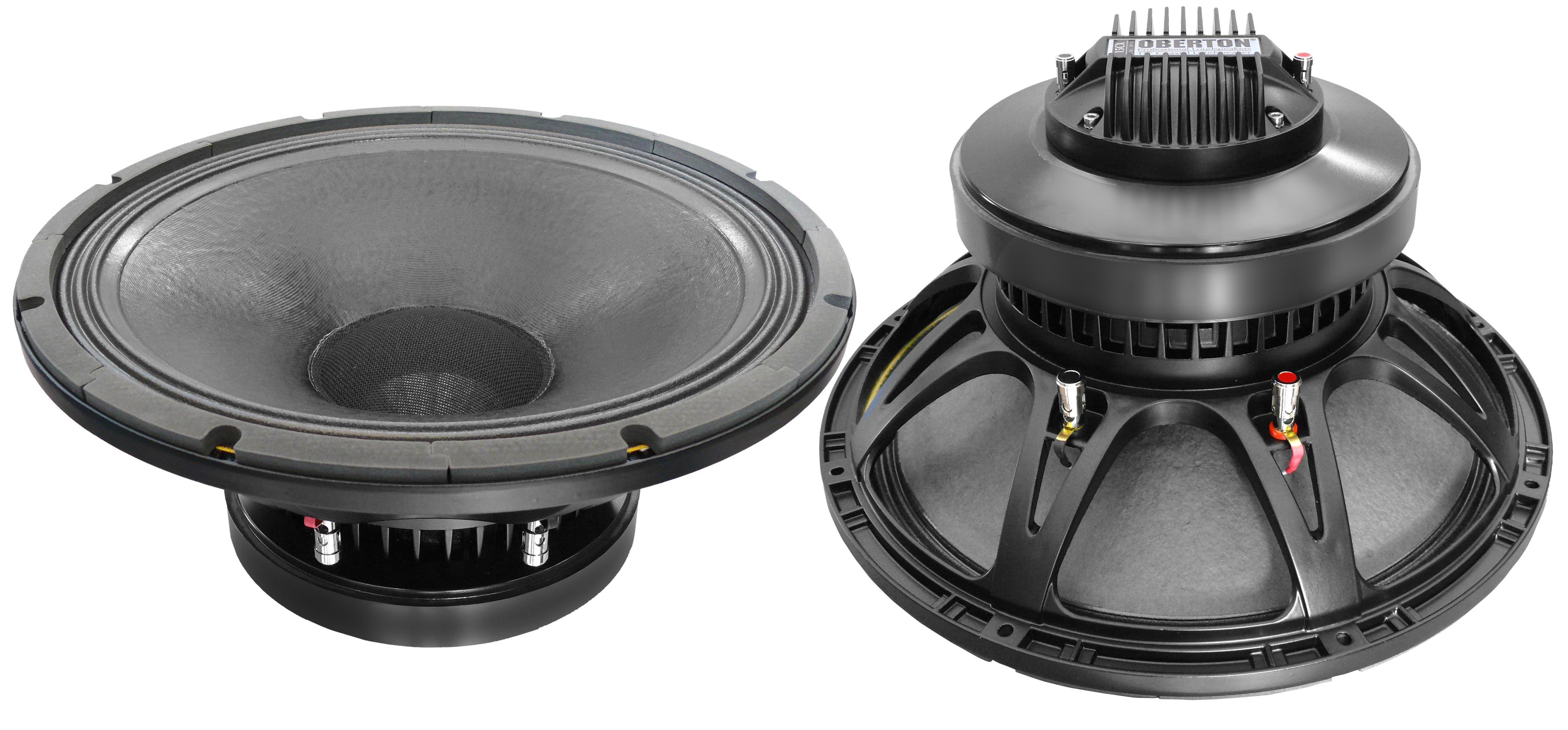

Oberton 15CX 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
394,00 €*
|
| Bis 4 |
390,00 €*
|
| Bis 6 |
387,00 €*
|
| Ab 7 |
383,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11529
Produktinformationen "Oberton 15CX 8 Ohm"
- Oberton 15CX
- 100 db SPL 1W / 1m ( LF ) average sensitivity
- 77 mm ( 3”) high temperature voice coil ( LF )
- 900 W AES program power ( LF )
- Triple aluminium demodulating rings
- Single magnet assembly
- Silicon spider
- Water protected cone
- 1.4” exit HF compression driver
- 72 mm (2.85”) HF high temperature voice coil
- 80 degrees nominal dispersion
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 15CX 8 Ohm SPECIFICATIONS
|
Nominal diameter Impedance Minimum impedance LF Frequency range Dispersion angle LF unit Sensitivity (200-2000 Hz) Power Capacity AES ¹ Program Power ² Voice Coil Diameter Voice Coil Material Voice Coil Former V.C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density HF unit Minimum impedance HF DC resistance Sensitivity (1-15 kHz) Power capacity (1-20 kHz) Program power Voice coil diameter Winding material Diaphragm material Flux density |
388 mm (15 in) LF 8 Ohm /HF 16 Ohm 6.20 Ohm 50 - 16000 Hz 80 deg 100 dB 450 W 900 W 77 mm (3 in) Copper Kapton 18.5 mm 9 mm. Paper with glassfiber Die Cast Aluminium Ferrite 1.15 T 11.59 Ohms 10 Ohms 106 dB 80 W 160 W 72 mm (2.85 in) Aluminium cotton composite 1.6 T |
THIELE-SMALL PARAMETERS 15CX
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
38.2 Hz 5.61 0.372 0.349 163.80 L 101.84 g 5.18 Ohms 829 cm2 ± 7 mm 0.170 mm/N 18.45 T.m 0.69 mH |

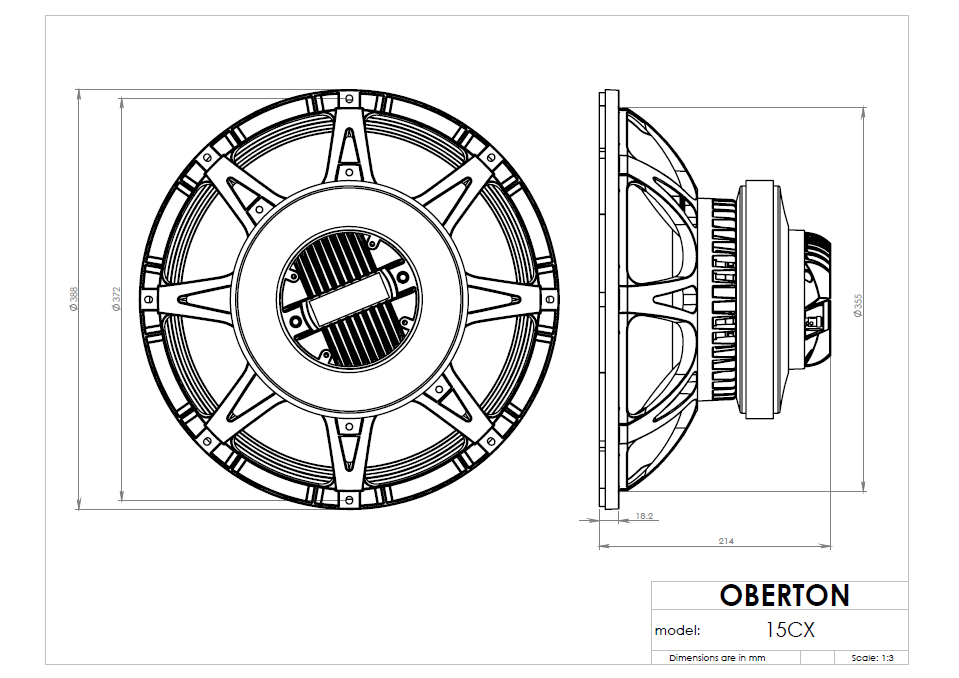

MOUNTING INFORMATION
|
Overall diameter Depth Baffle hole diameter Bolt circle diameter Мounting holes Net weight |
388 mm (15 in) 214 mm 355 mm 370/372 mm 8 eliptic 7x8 mm 10.90 kg |
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Aluminium / Cotton / Sonstige |
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
