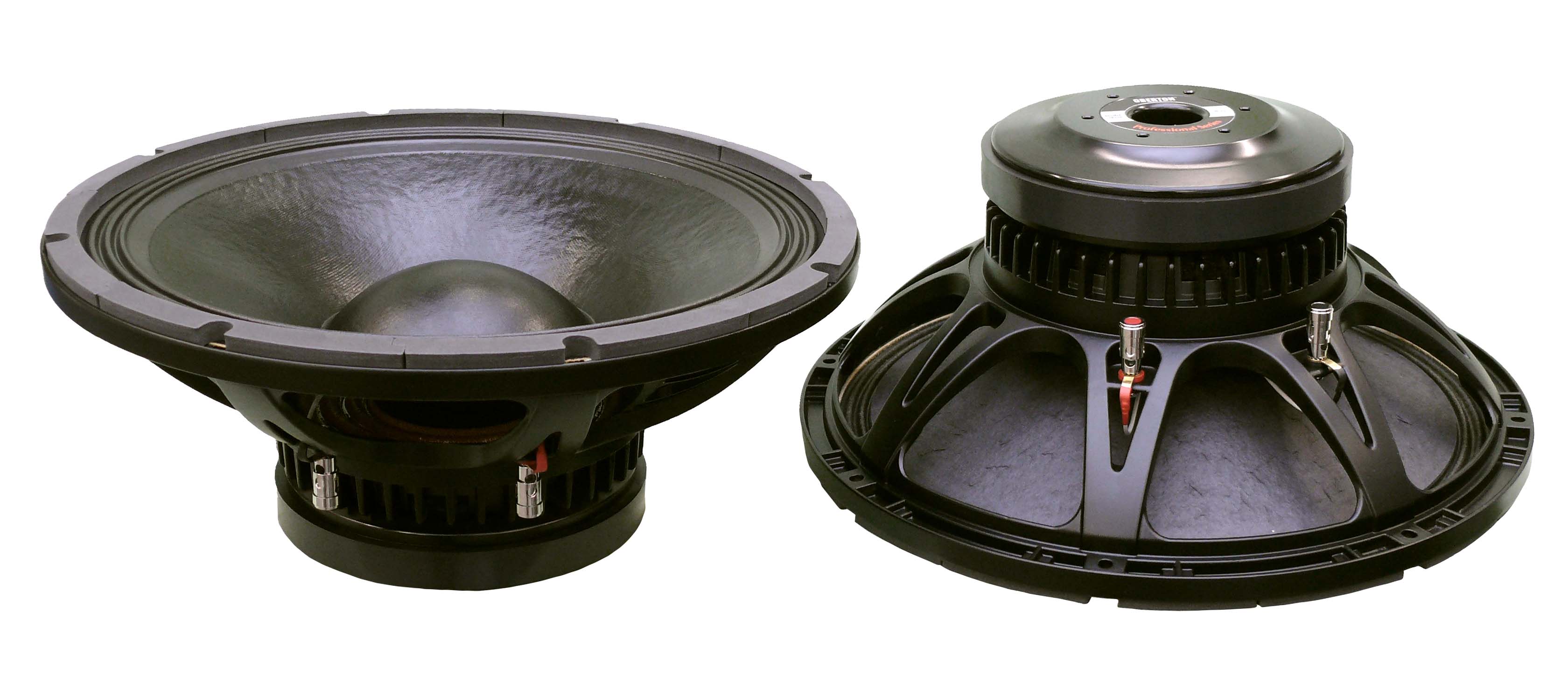

Oberton 15B500 8 Ohm

Produktinformationen "Oberton 15B500 8 Ohm"
  • Oberton 15B500
  • 99 db 1W / 1m average sensitivity
  • 77 mm high temperature sandwich voice coil
  • 1000 W AES program power
  • Powerful, vented 180 mm magnet structure
  • Double aluminium demodulating rings for lower distortion and improved heat dissipation
  • Double silicone spiders for improved excursion control and linearity
  • Water protected cone (front)
  • Epoxy anti-corrosion coating of top and back plates of magnet structure

Oberton 15B500 8 Ohm SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²

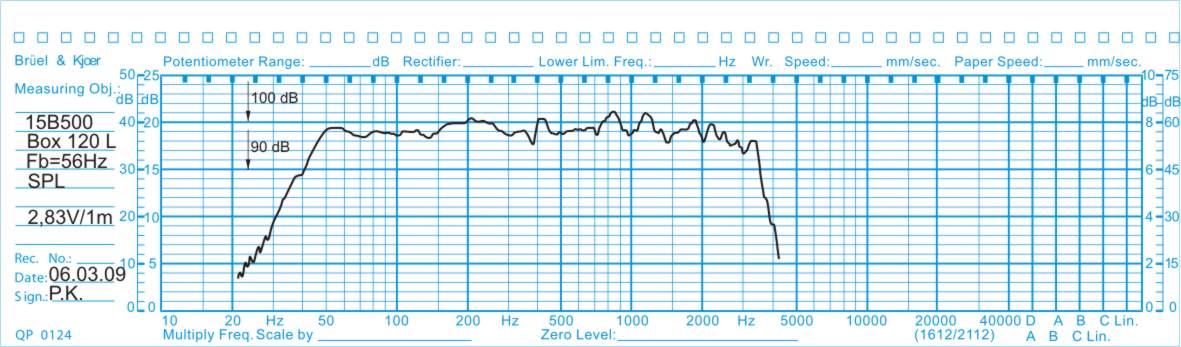

Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
15"/388 inch/mm
8 Ohm
6.39 Ohm
500 W
1000 W
(60-2000 Hz) 99 dB/W/m
38 - 2500 Hz
77 mm
Copper
Glassfiber
20 mm
11 mm
Paper
Die cast aluminium
Strontium ferrite
1.20


THIELE-SMALL PARAMETERS 15B500

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
38.20 Hz
12.06
0.274
0.268
145.82 Litres
114.40 grams
5.23 Ohms
829.6 cm2
±7.25 mm
0.152 mm/N
22.91 T.m
1.25 mH

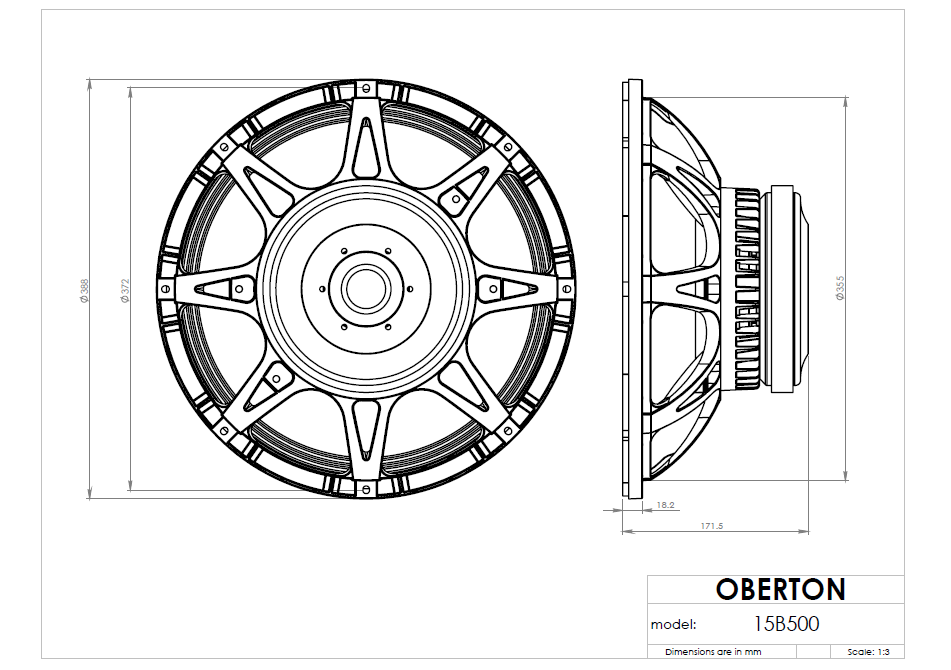

MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
388 mm
355 mm
8 eliptic 7x8 mm
370/372 mm
171.5 mm
7.8 kg
Coaxial: NEIN
Größe: 15"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
