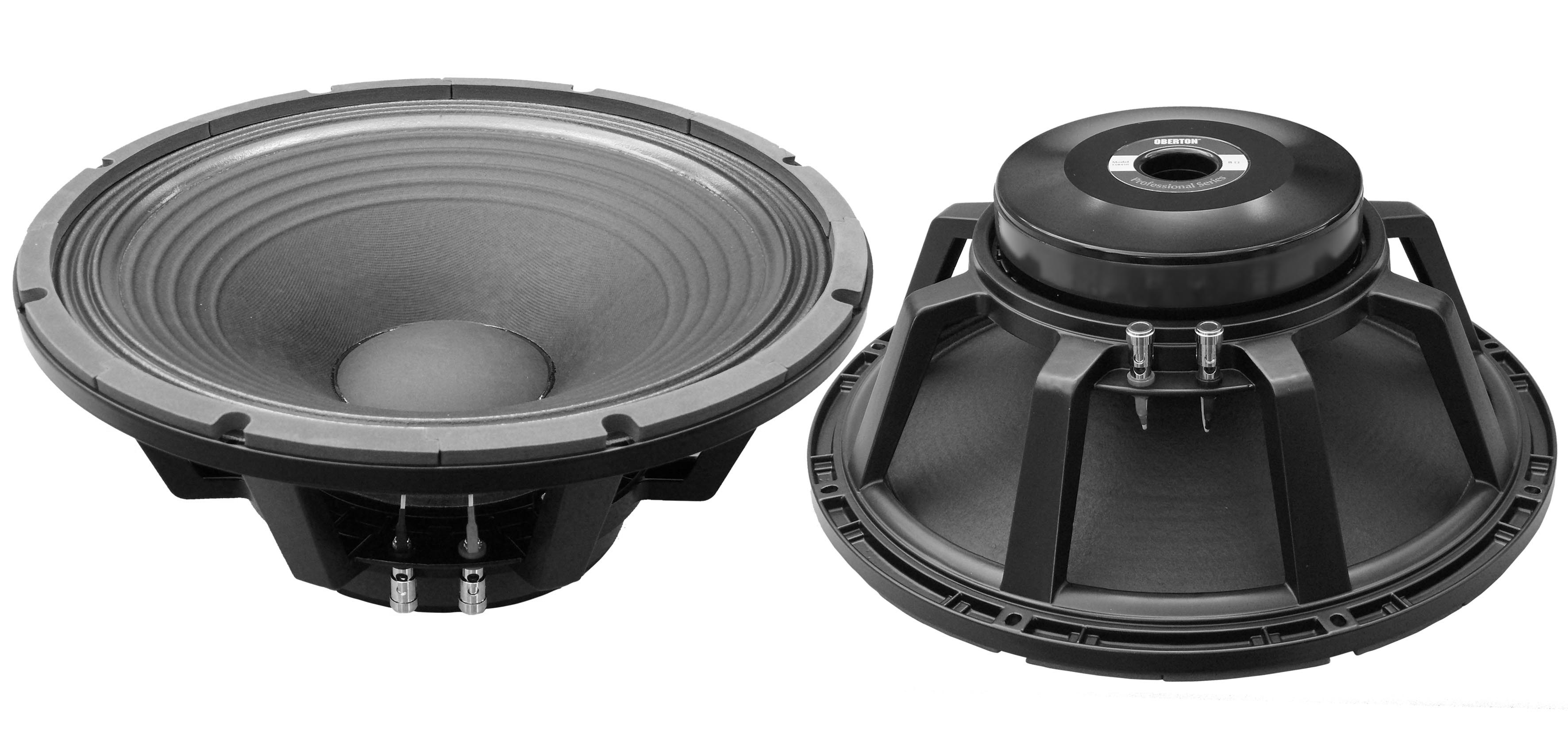

Oberton 15B450 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
184,00 €*
|
| Bis 4 |
183,00 €*
|
| Bis 6 |
181,00 €*
|
| Ab 7 |
180,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11492
Produktinformationen "Oberton 15B450 8 Ohm"
- Oberton 15B450
- 100 db 1W / 1m average sensitivity
- 77 mm high temperature sandwich voice coil
- 900 W AES program power
- Powerful, ferrite 180 mm magnet structure
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 15B450 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/388 inch/mm 8 Ohm 6.32 Ohm 450 W 900 W (200-2000 Hz) 100 dB/W/m 45 - 2500 Hz 77 mm Cooper Glassfiber 18 mm 9 mm Paper with glassfiber Die cast aluminium Ferrite 1.33 T |
THIELE-SMALL PARAMETERS
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
45.08 Hz 9.60 0.294 0.286 146.85 Litres 81.56 grams 5.32 Ohms 829.6 cm2 ± 6.75 mm 0.153 mm/N 20.43 T.m 1.08 mH |

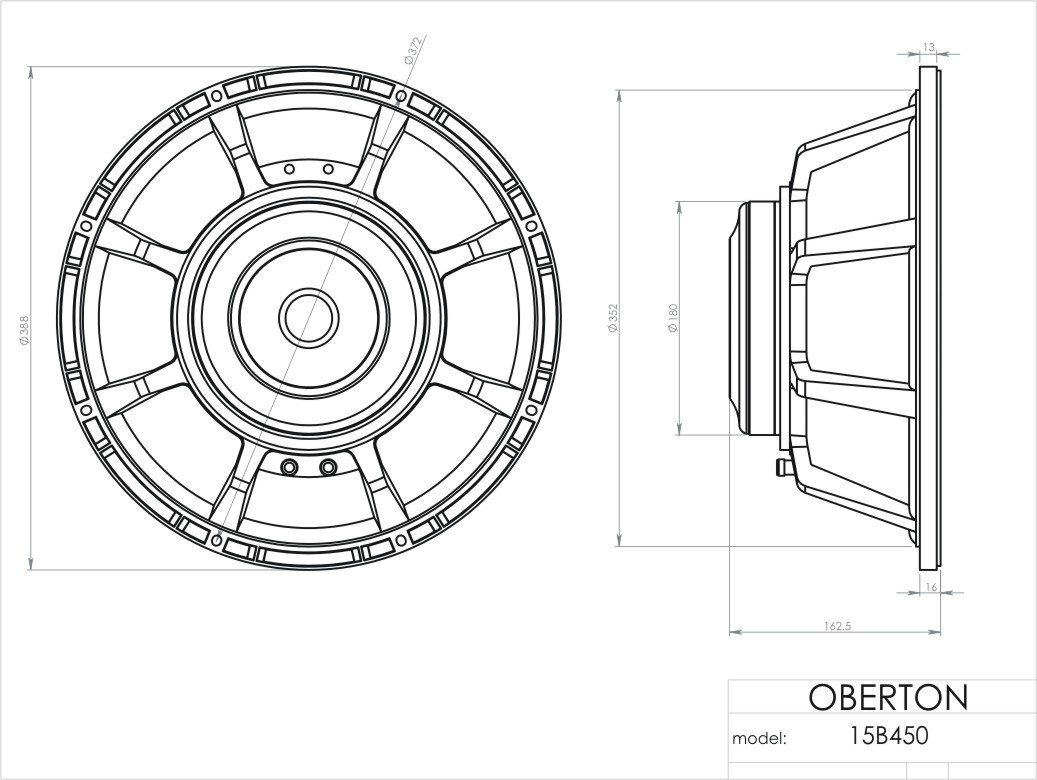

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 352 mm 8 eliptic 7x8 mm 370/372 mm 162.5 mm 7.5 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
