Oberton 12NXL400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
289,00 €*
|
| Bis 4 |
286,00 €*
|
| Bis 6 |
284,00 €*
|
| Ab 7 |
281,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11471

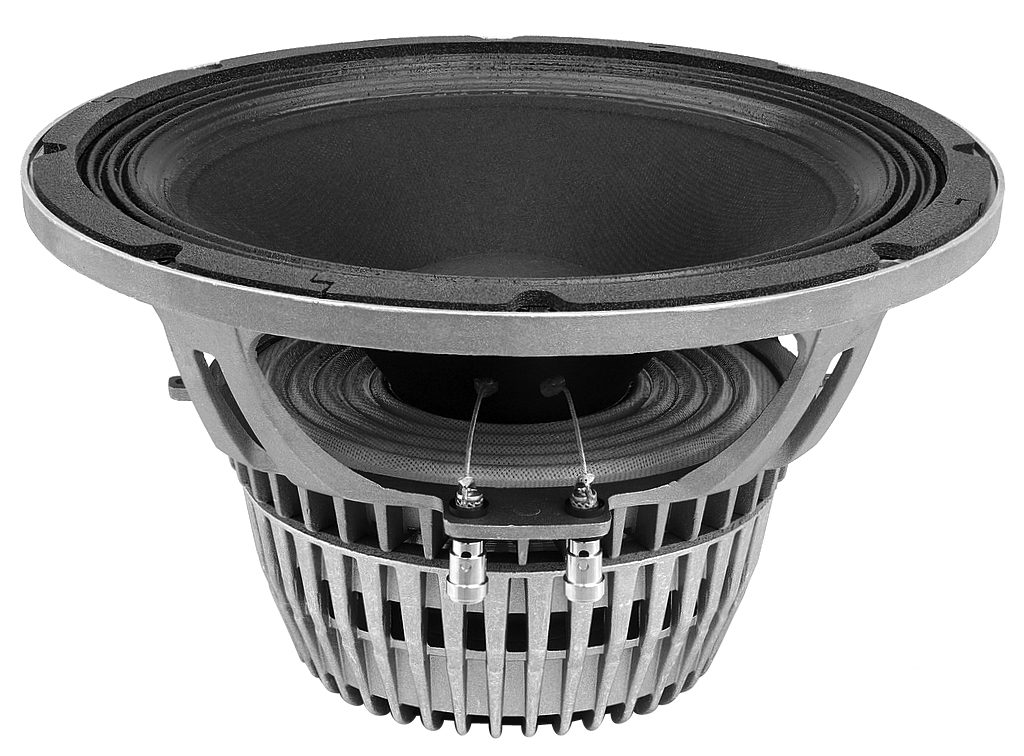

Produktinformationen "Oberton 12NXL400 8 Ohm"
- Oberton 12NXL400
- 101 db 1W / 1m average sensitivity
- 77 mm high temperature voice coil
- 900 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Triple aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
Oberton 12NXL400 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 7.33 Ohm 450W 900 W (200 -2000 Hz) 101 dB/W/m 50 - 3500 Hz 77 mm Aluminium Kapton™ 15 mm 9 mm Paper Die Cast Aluminium Neodymium 1.45 T |
THIELE-SMALL PARAMETERS 12NXL400
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
48.60 Hz 11.90 0.207 0.203 79.24 litres 50.06 grams 5.70 Ohms 514.7 cm2 ±5.25 mm 0.214 mm/N 20.57 T.m 0.69 mH |

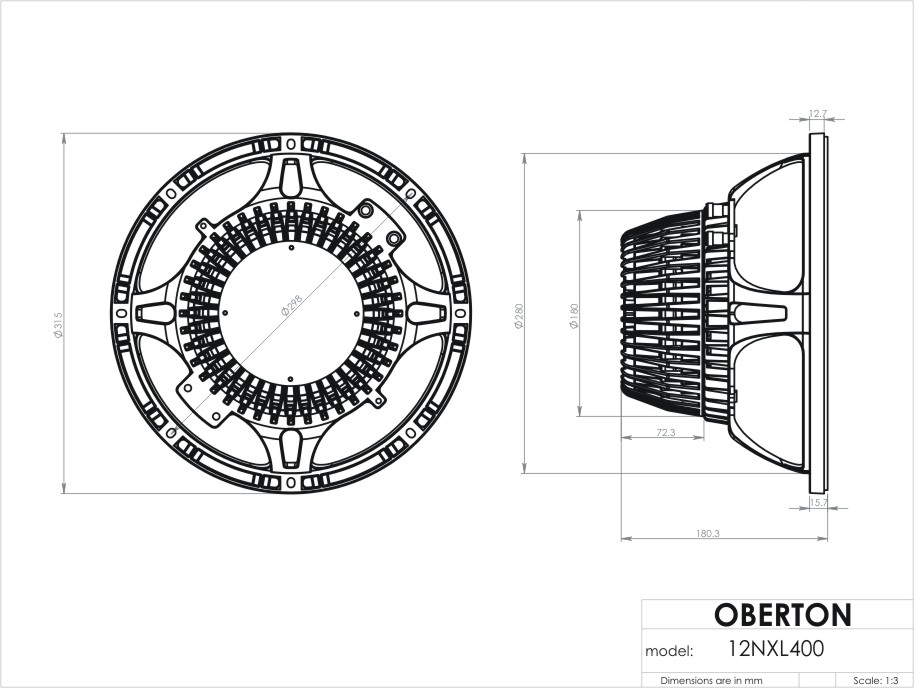

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 180.3 mm 5.05 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,01 - 0,20 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
