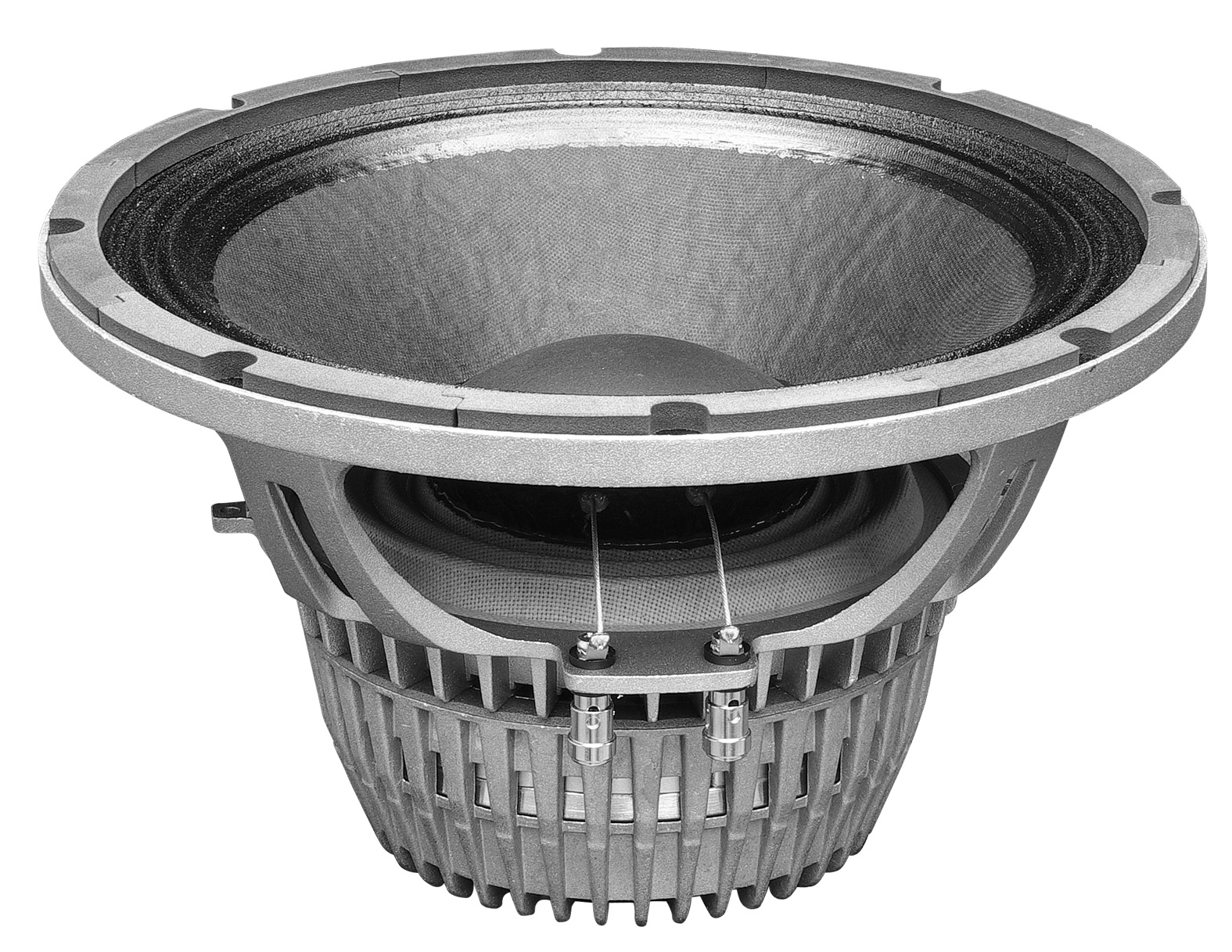

Oberton 12NMB600 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
457,00 €*
|
| Bis 4 |
453,00 €*
|
| Bis 6 |
449,00 €*
|
| Ab 7 |
445,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11467
Produktinformationen "Oberton 12NMB600 8 Ohm"
Oberton 12NMB600
99 db 1W / 1m average sensitivity
100 mm high temperature sandwich voice coil
1200 W AES program power
Vented neodymium magnet assembly with massive heatsink
Double aluminium demodulating rings for lower distortion and improved heat dissipation
Silicone spider
Oberton 12NMB600 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 6.82 Ohm 600 W 1200 W (200 -2000 Hz) 99 dB/W/m 50 - 3000 Hz 100 mm Aluminium Kapton™ 16 mm 12 mm Kevlar paper Die Cast Aluminium Neodymium 1.25 T |
THIELE-SMALL PARAMETERS 12NMB600
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
41.03 Hz 4.77 0.137 0.134 70.80 litres 78.61 grams 5.23 Ohms 514.7 cm2 ±7 mm 0.191 mm/N 27.77 T.m 1.00 mH |

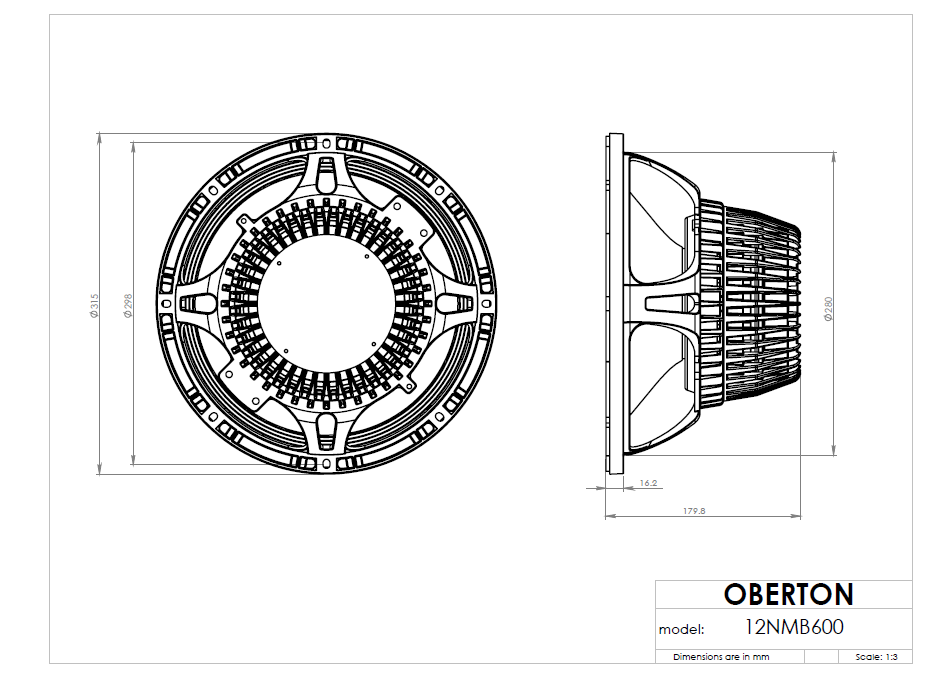

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 179.8 mm 7.55 kg. |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,01 - 0,20 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
