Oberton 12NMB35 8 Ohm

Produktinformationen "Oberton 12NMB35 8 Ohm"
  • Oberton 12NMB35

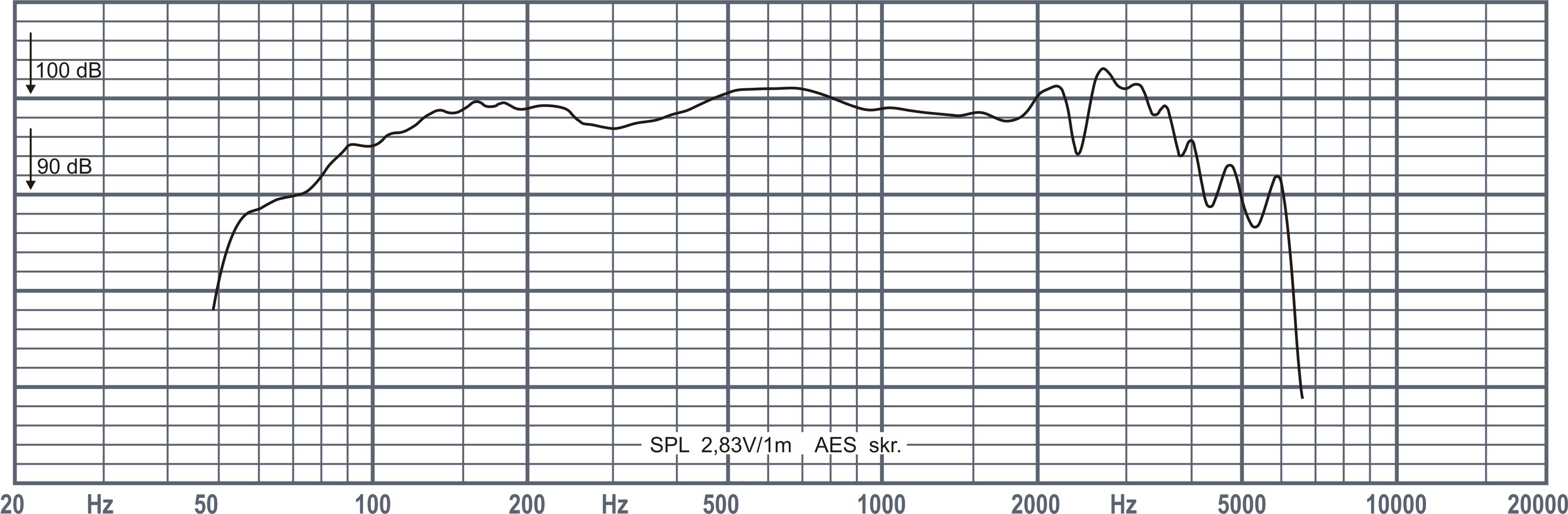

  • 99 db 1W / 1m average sensitivity
  • 88 mm high temperature aluminium voice coil
  • 1200 W AES program power
  • Vented neodymium magnet assembly
    with very light weight
  • Two aluminium demodulating rings for
    lower distortion and improved heat dissipation
  • Silicone spider
  • Water protected cone ( front side)
  • Epoxy anti-corrosion coating of top and back plates of magnet structure

Oberton 12NMB35 8 Ohm SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
12"/315 inch/mm
8 Ohm
6.75 Ohm
600 W
1200 W
(200 -2000 Hz) 99 dB/W/m
50 - 3000 Hz
88 mm
Aluminium
Glassfiber
19 mm
11 mm
Paper with Kevlar + glass fibers
Die Cast Aluminium
Neodymium
1.05 T

THIELE-SMALL PARAMETERS 12NMB35

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
54,42 Hz
7,41
0.38
0.36
54,29 Litres
58,28 grams
5,5 Ohms
514.7 cm2
±6.75 mm
0.1468 mm/N
17,00 T.m
1,01 mH

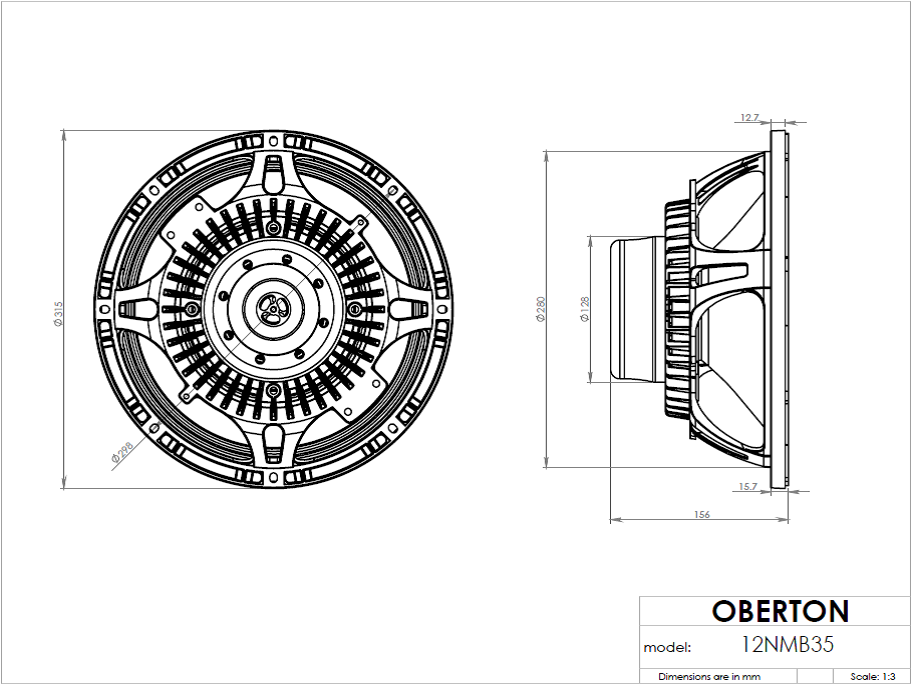

MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
315 mm
280 mm
8 elliptic 7x8 mm
296 / 298 mm
156 mm
5.05 kg.
Coaxial: NEIN
Größe: 12"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
