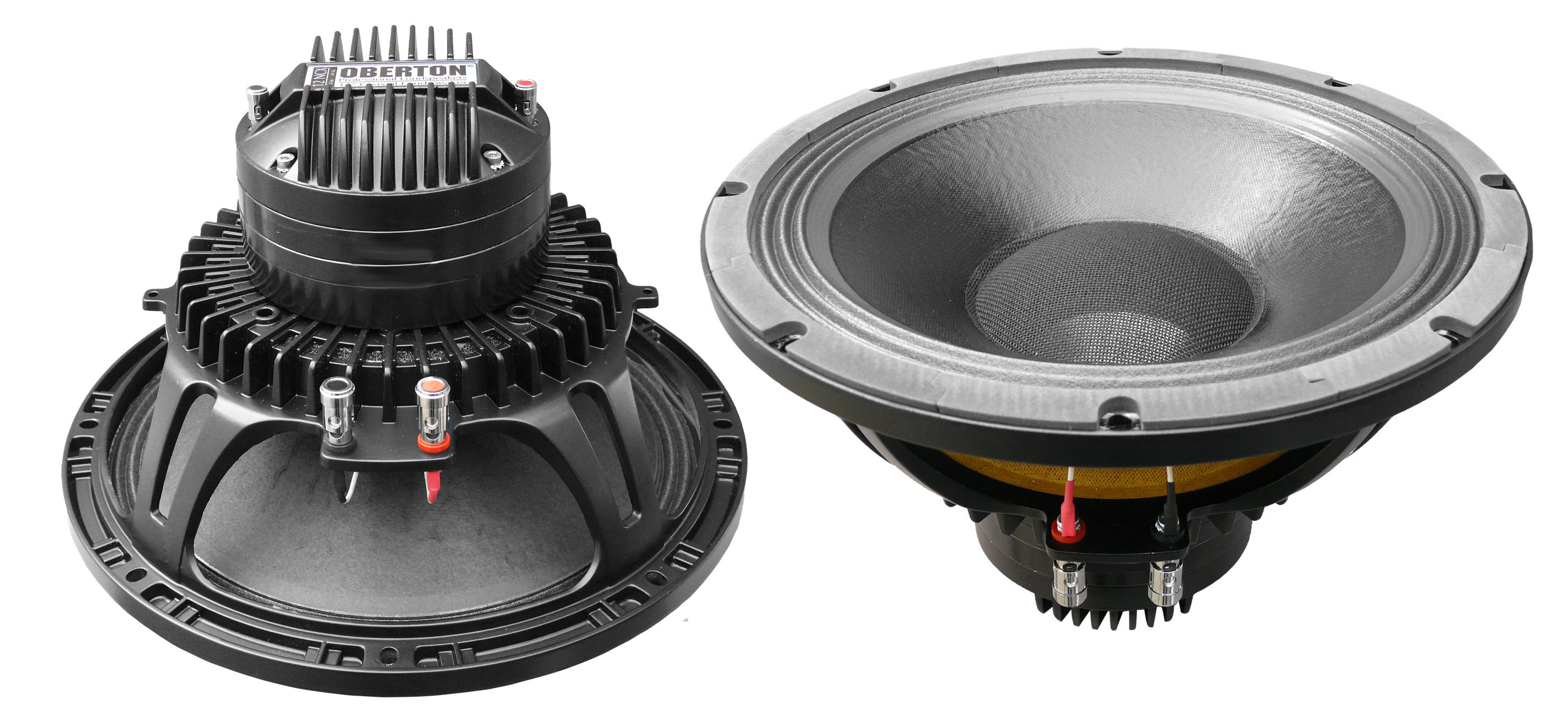

Oberton 12NCX 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
504,00 €*
|
| Bis 4 |
500,00 €*
|
| Bis 6 |
495,00 €*
|
| Ab 7 |
491,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11522
Produktinformationen "Oberton 12NCX 8 Ohm"
- Oberton 12NCX
- 98 db SPL 1W / 1m ( LF ) average sensitivity
- 77 mm ( 3”) high temperature voice coil ( LF )
- 700 W AES program power ( LF )
- Triple aluminium demodulating rings
- Silicone spider
- Water protected cone
- 1.4” exit HF neodymium compression driver
- 72 mm (2.85”) HF high temperature voice coil
- 80 degrees nominal dispersion
- Epoxy anti-corrosion coating of top and back plates of magnet structure
- Very light weight
Oberton 12NCX 8 Ohm SPECIFICATIONS
|
Nominal diameter Impedance Minimum impedance LF Frequency range Dispersion angle LF unit Sensitivity (200-2000 Hz) Power Capacity AES ¹ Program Power ² Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density HF unit Minimum impedance HF DC resistance Sensitivity (1-15 kHz) Power capacity (1-20 kHz) Program power Voice coil diameter Winding material Diaphragm material Flux density |
315 mm (12 in) LF 8 Ohm /HF 16 Ohm 6.73 Ohm 60 - 16000 Hz 80 deg 98 dB 350 W 700 W 77 mm (3 in) Aluminium Kapton 15 mm 9 mm Paper with glassfiber Die Cast Aluminium Neodymium 1.1 T 11.59 Ohms 10 Ohms 106 dB 80 W 160 W 72 mm (2.85 in) Aluminium cotton composite 1.85 T |
THIELE-SMALL PARAMETERS 12NCX
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
58.23 Hz 6.18 0.31 0.30 62.92 L 43.92 g 5.7 Ohms 514.7 cm2 ± 5.25 mm 0.17 mm/N 17.19 T.m 0.58 mH |

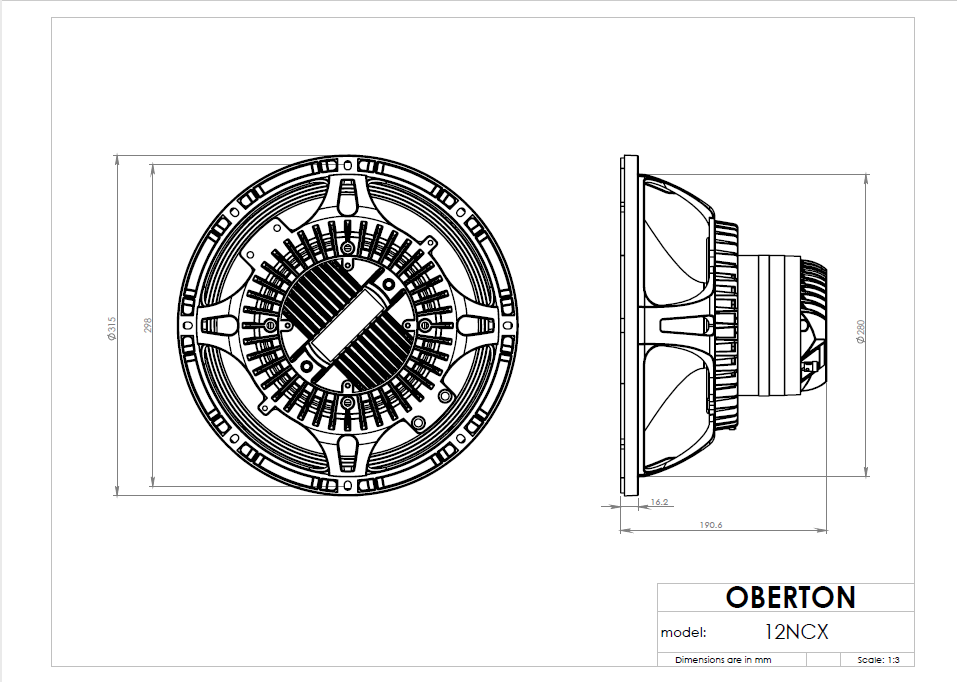

MOUNTING INFORMATION
|
Overall diameter Depth Baffle hole diameter Bolt circle diameter Mounting holes Net weight |
315 mm (12 in) |
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Aluminium / Cotton / Sonstige |
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
