Oberton 12NB601 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
457,00 €*
|
| Bis 4 |
453,00 €*
|
| Bis 6 |
449,00 €*
|
| Ab 7 |
445,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11465

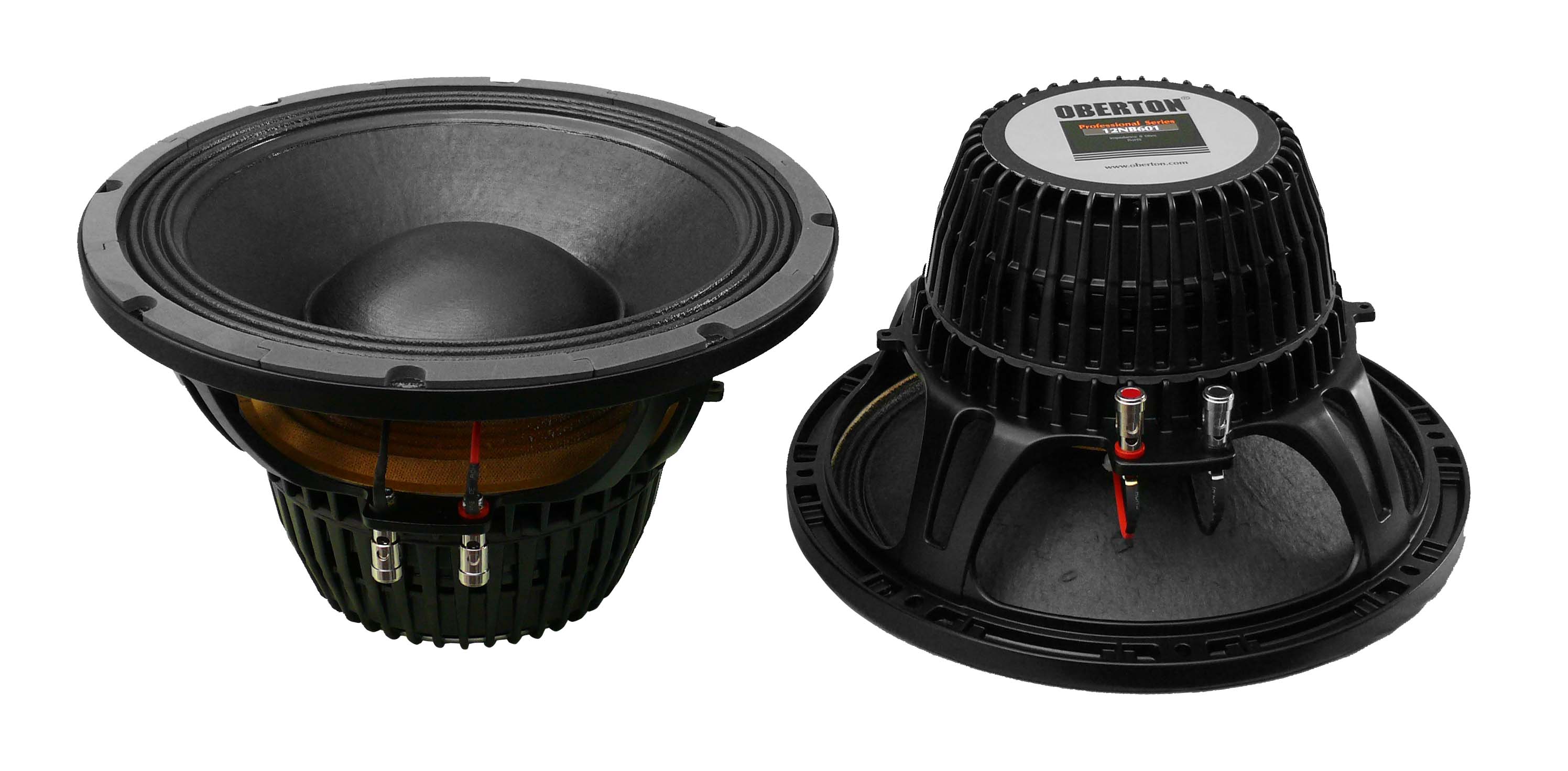

Produktinformationen "Oberton 12NB601 8 Ohm"
- Oberton 12NB601
- 99 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 1200 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Water protected cone (front)
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 12NB601 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

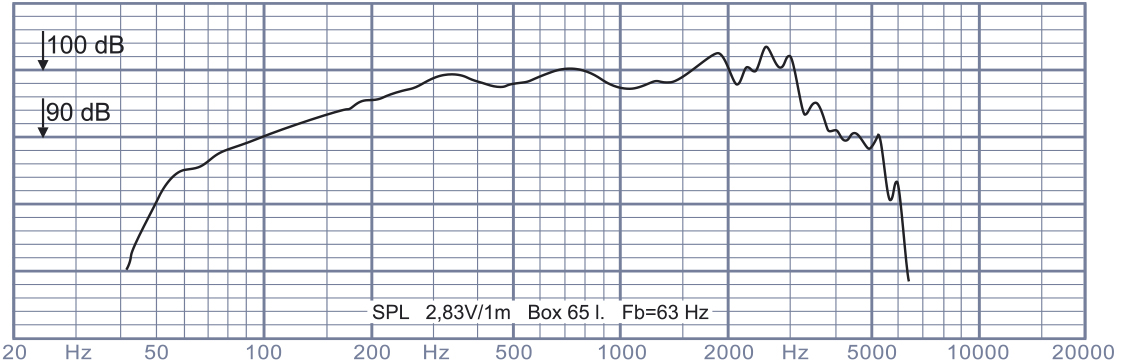

12"/315 inch/mm 8 Ohm 6.04 Ohm 600 W 1200 W (200 -2000 Hz) 99 dB/W/m 50 – 3000 Hz 100 mm Aluminium Glassfiber 23 mm 11 mm Paper with glassfiber Die Cast Aluminium Neodymium 1.30 T |
THIELE-SMALL PARAMETERS 12NB601
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
50.47 Hz 10.02 0.315 0.305 38.71 litres 95.03 grams 5.48 Ohms 514.7 cm2 ±8.75 mm 0.105 mm/N 22.91 T.m 0.97 mH |

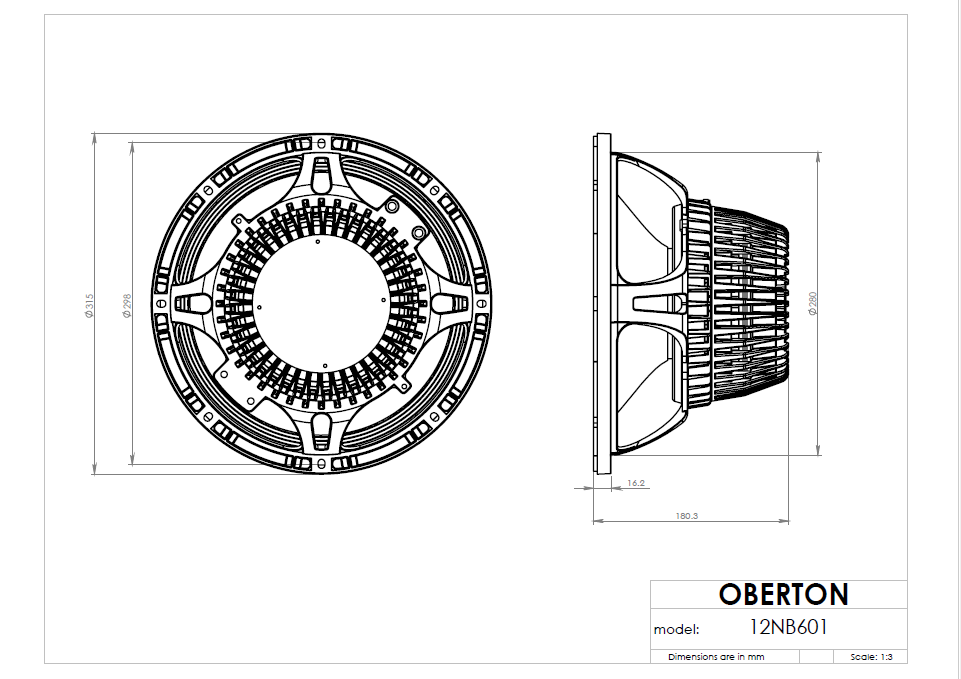

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 180.3 mm 7.8 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
