Oberton 12NB600 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
457,00 €*
|
| Bis 4 |
453,00 €*
|
| Bis 6 |
449,00 €*
|
| Ab 7 |
445,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11466
Produktinformationen "Oberton 12NB600 8 Ohm"
- Oberton 12NB600
- 95 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 1200 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Double silicone spider for improved excursion control and linearity
- Water protected cone (front)
Oberton 12NB600 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 7.21 Ohm 600 W 1200 W (100 -1000 Hz) 95 dB/W/m 50 – 2000 Hz 100 mm Copper Glass fiber 22 mm 14 mm Kevlar paper Die Cast Aluminium Neodymium 1.02 T |
THIELE-SMALL PARAMETERS 12NB600
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
50.85 Hz 6.97 0.2 0.194 35.66 litres 101.61 grams 4.95 Ohms 514.7 cm2 ±7.5 mm 0.096 mm/N 28.39 T.m 1.82 mH |

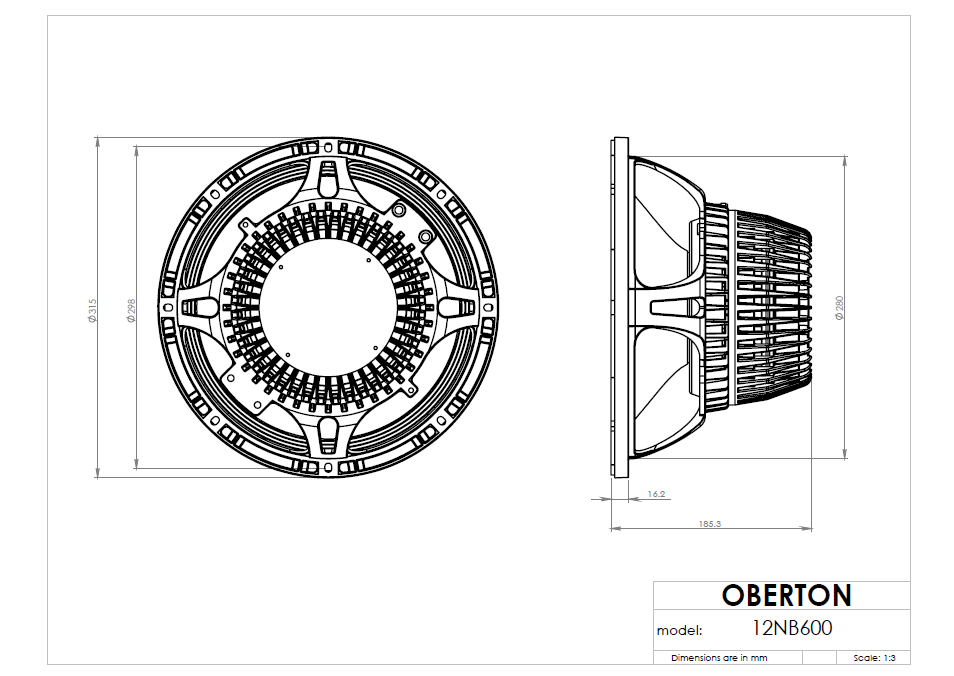

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 185.3 mm 7.8 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,01 - 0,20 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
