Oberton 12NB450 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
297,00 €*
|
| Bis 4 |
294,00 €*
|
| Bis 6 |
292,00 €*
|
| Ab 7 |
289,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11469
Produktinformationen "Oberton 12NB450 8 Ohm"
- Oberton 12NB450
- 100 db 1W / 1m average sensitivity
- 77 mm high temperature voice coil
- 1000 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Triple aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
- Water protected cone (front)
Oberton 12NB450 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V.C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 6.54 Ohm 500 W 1000 W (200 -2000 Hz) 100 dB/W/m 50 - 2000 Hz 77 mm Aluminium Kapton™ 21 mm 11 mm Paper with glassfiber Die Cast Aluminium Neodymium 1.30 T |
THIELE-SMALL PARAMETERS 12NB450
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
46.46 Hz 10.53 0.208 0.204 72.57 litres 59.82 grams 5.00 Ohms 514.7 cm2 ±7.75 mm 0.196 mm/N 20.34 T.m 0.83 mH |

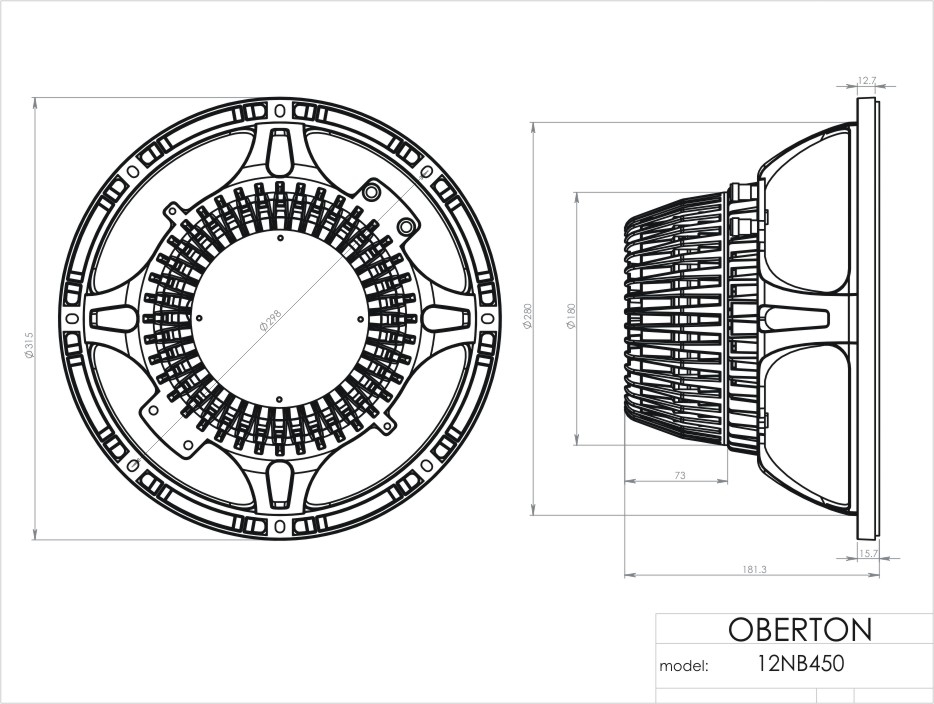

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 181.3 mm 5.25kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,01 - 0,20 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
