Oberton 12NB400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
288,00 €*
|
| Bis 4 |
286,00 €*
|
| Bis 6 |
283,00 €*
|
| Ab 7 |
281,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11470
Produktinformationen "Oberton 12NB400 8 Ohm"
- Oberton 12NB400
- 98 db 1W / 1m average sensitivity
- 77 mm high temperature voice coil
- 900 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Triple aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 12NB400 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 6.96 Ohm 450 W 900 W (200 -2000 Hz) 98 dB/W/m 50 - 2000 Hz 77 mm Aluminium Kapton™ 15 mm 9 mm Paper with glassfiber Die Cast Aluminium Neodymium 1.45 T |
THIELE-SMALL PARAMETERS 12NB400
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
43.58 Hz 10.39 0.183 0.180 70.45 litres 59.82 grams 5.00 Ohms 514.7 cm2 ±5.25 mm 0.196 mm/N 20.34 T.m 0.83 mH |

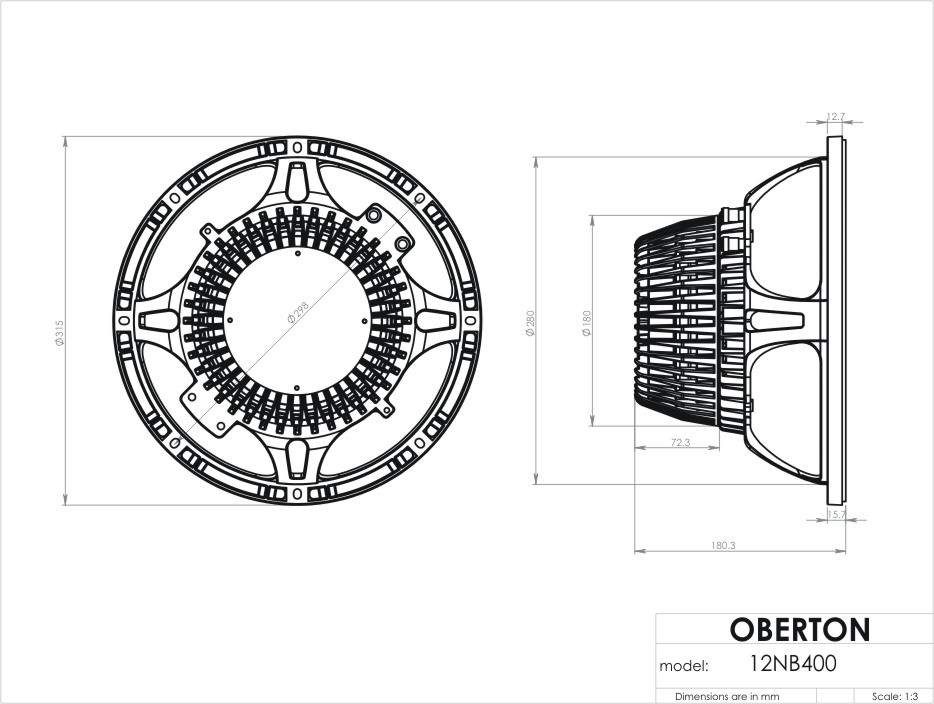

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 180.3 mm 5.00 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,01 - 0,20 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
