Oberton 12MB35 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
234,00 €*
|
| Bis 4 |
232,00 €*
|
| Bis 6 |
230,00 €*
|
| Ab 7 |
228,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11495
Produktinformationen "Oberton 12MB35 8 Ohm"
- Oberton 12MB35
- 98 db 1W / 1m average sensitivity
- 88 mm high temperature aluminium voice coil
- 1400 W AES program power
- Powerful, vented 200 mm magnet structure
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 12MB35 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm |
THIELE-SMALL PARAMETERS
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
51.43 Hz 13.58 0.272 0.267 50.07 Litres 70.76 grams 5.00 Ohms 514.7 cm2 ±6.75 mm 0.135 mm/N 20.50 T.m 0.68 mH |

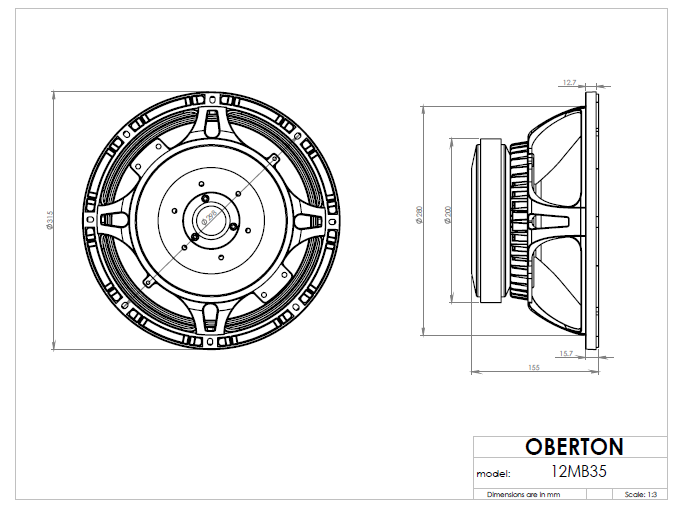

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
315 mm 280 mm 8 eliptic 7x8 mm 296 / 298 mm 155 mm 8.5 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
