Oberton 12L300 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
156,00 €*
|
| Bis 4 |
155,00 €*
|
| Bis 6 |
154,00 €*
|
| Ab 7 |
152,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11500
Produktinformationen "Oberton 12L300 8 Ohm"
- Oberton 12L300
- 100.5 db 1W / 1m average sensitivity
- 64 mm high temperature aluminium voice coil
- 600 W AES program power
- Powerful, ferrite 169 mm magnet structure
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 12L300 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/310 inch/mm 8 Ohm 6.20 Ohm 300 W 600 W (200-2000 Hz) 100.5 dB/W/m 60 - 5000 Hz 64 mm Aluminium Kapton™ 11 mm 9 mm Paper Die cast aluminium Ferrite 1.35 T |
THIELE-SMALL PARAMETERS 12L300
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
53.80 Hz 9.98 0.261 0.254 79.63 Litres 40.65 grams 5.35 Ohms 514.7 cm2 ± 3.25 mm 0.215 mm/N 16.78 T.m 0.69 mH |

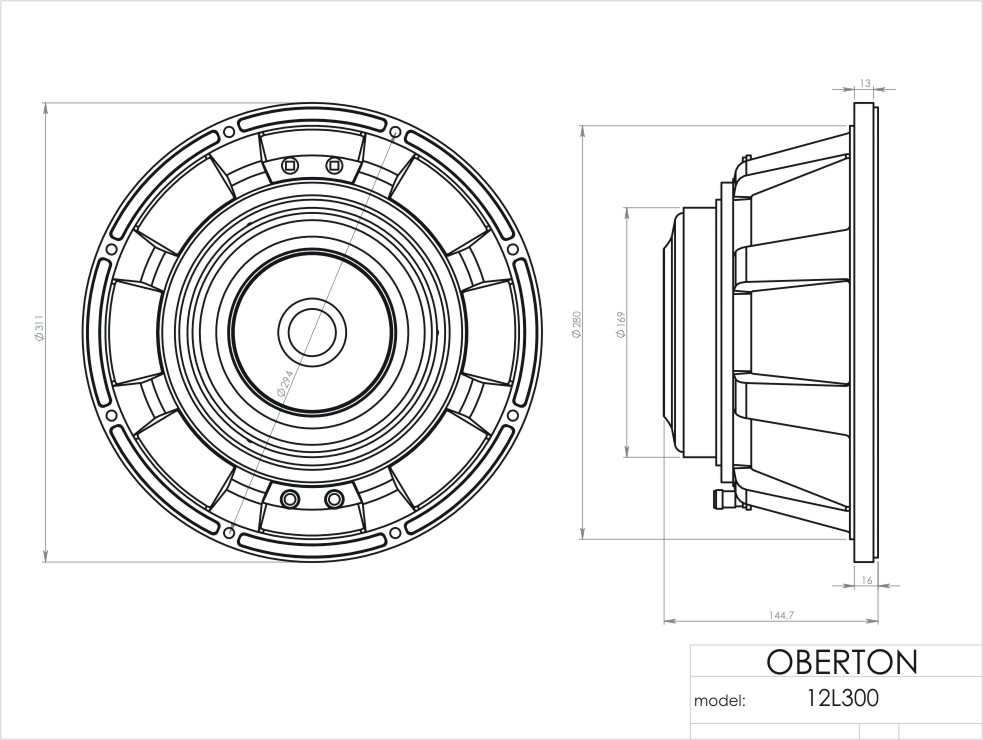

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
311 mm 280 mm 8 with dia. 7 mm 294 mm 144.7 mm 6.8 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
