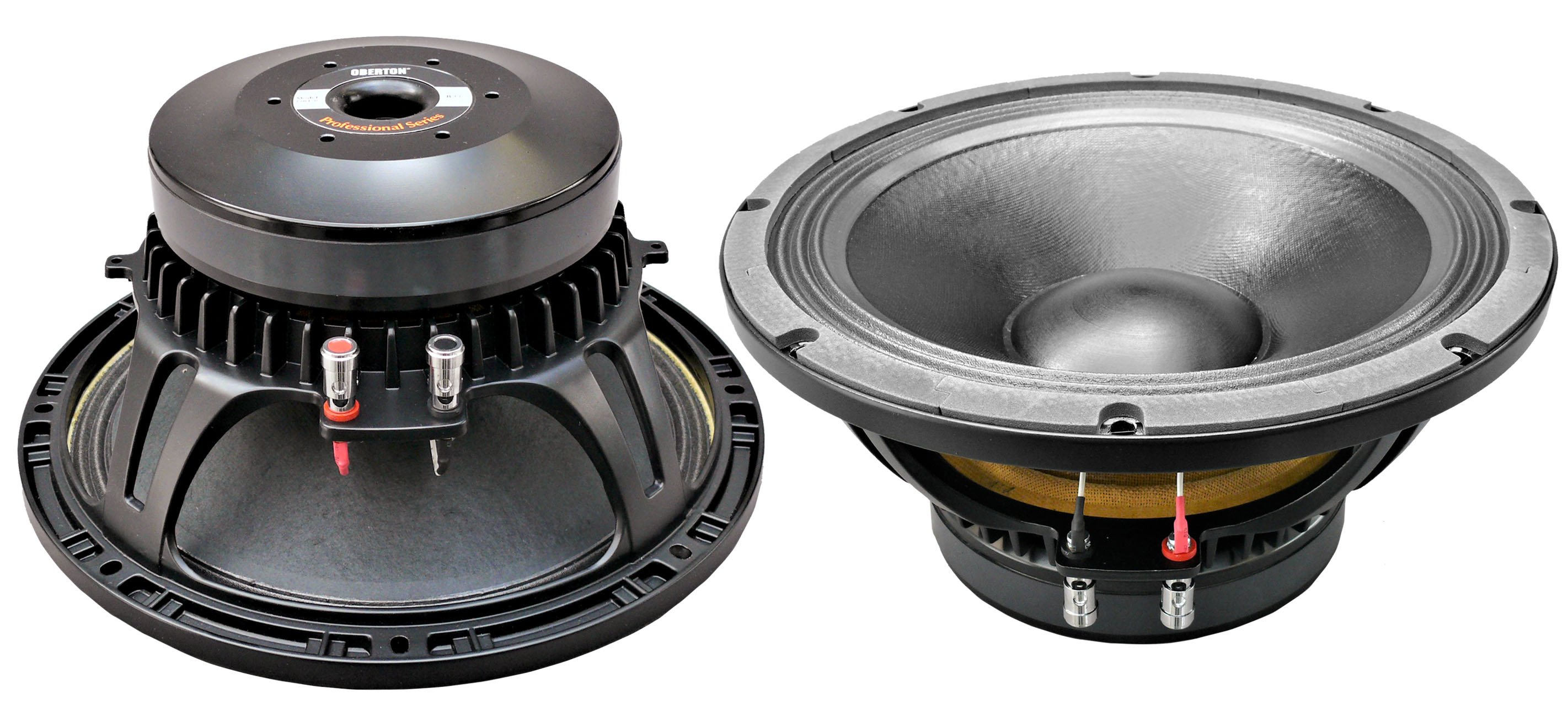

Oberton 12B450 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
163,00 €*
|
| Bis 4 |
162,00 €*
|
| Bis 6 |
161,00 €*
|
| Ab 7 |
159,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11496
Produktinformationen "Oberton 12B450 8 Ohm"
- Oberton 12B450
- 99 db 1W / 1m average sensitivity
- 77 mm high temperature aluminium voice coil
- 900 W AES program power
- Powerful, vented 180 mm magnet structure
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 12B450 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
12"/315 inch/mm 8 Ohm 6.22 Ohm 450 W 900 W (200-2000 Hz) 99dB/W/m 50 - 3000 Hz 77 mm Aluminium Kapton™ 21 mm 11 mm Paper Die cast aluminium Ferrite 1.20 T |
THIELE-SMALL PARAMETERS 12B450
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
46.29 Hz 9.56 0.241 0.235 71.75 Litres 60.97 grams 5.07 Ohms 514.7 cm2 ± 7.75 mm 0.194 mm/N 19.31 T.m 1.10 mH |
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
