Oberton 10NCX1 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
275,00 €*
|
| Bis 4 |
272,00 €*
|
| Bis 6 |
270,00 €*
|
| Ab 7 |
268,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11525
Produktinformationen "Oberton 10NCX1 8 Ohm"
- Oberton 10NCX1
- 96 db SPL 1W / 1m ( LF ) average sensitivity
- 51 mm ( 2”) high temperature voice coil ( LF )
- 400 W AES program power ( LF )
- Double aluminium demodulating rings
- Single neodymium magnet assembly
- Water protected cone
- 1” exit HF neodymium compression driver
- 44 mm (1.75”) HF high temperature voice coil
- 80 degrees nominal dispersion
- Very light weight

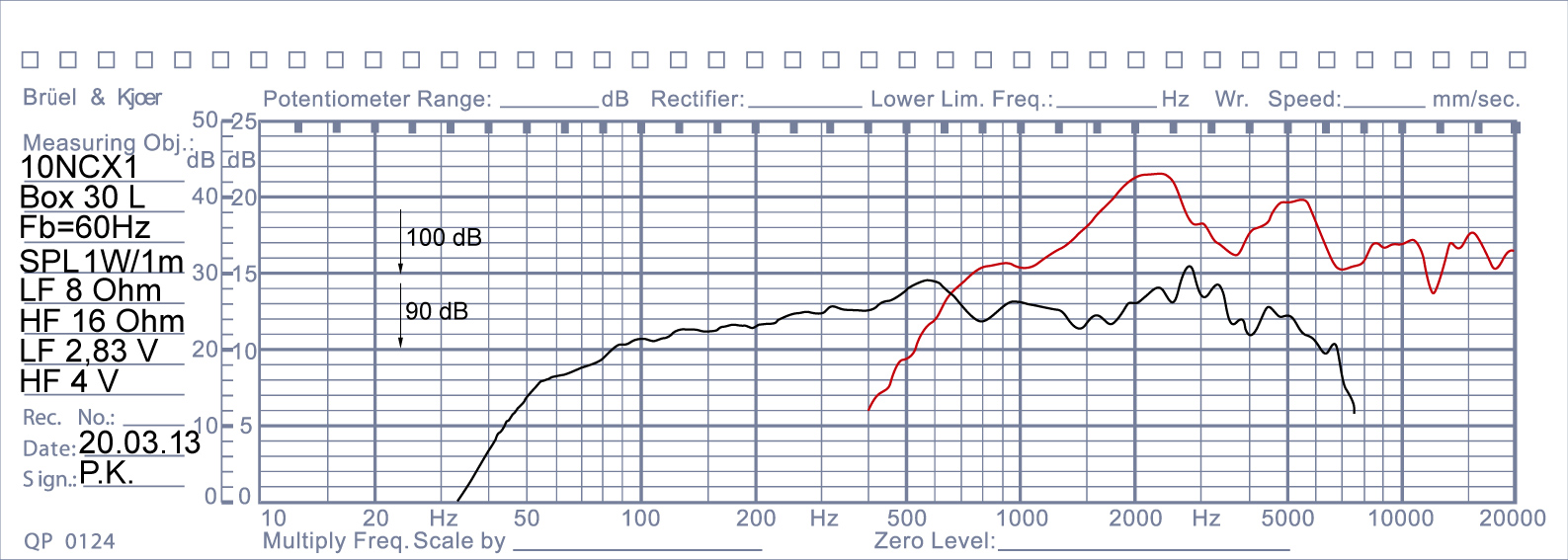

Oberton 10NCX1 8 Ohm SPECIFICATIONS
|
Nominal diameter Impedance Minimum impedance LF Frequency range Dispersion angle LF unit Sensitivity (200-2000 Hz) Power Capacity AES ¹ Program Power ² Voice Coil Diameter Voice Coil Material Voice Coil Former V.C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density HF unit Minimum impedance HF DC resistance Sensitivity (1-15 kHz) Power capacity (1-20 kHz) Program power Voice coil diameter Winding material Diaphragm material Flux density |
262 mm (10 in)
96 dB |
THIELE-SMALL PARAMETERS 10NCX1
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
67.95 Hz 9.96 0.428 0.41 11.98 L 26.9 g 5.35 Ohms 317.3 cm2 ± 4.75 mm 0.204 mm/N 11.98 T.m 0.836 mH |
MOUNTING INFORMATION
|
Overall diameter Depth Baffle hole diameter Bolt circle diameter Mounting holes Net weight |
263 mm (10 in) 138 mm 225 mm 244 mm 8 with diam. 7 mm 2.7 kg |
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 10" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,41 - 0,50 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
