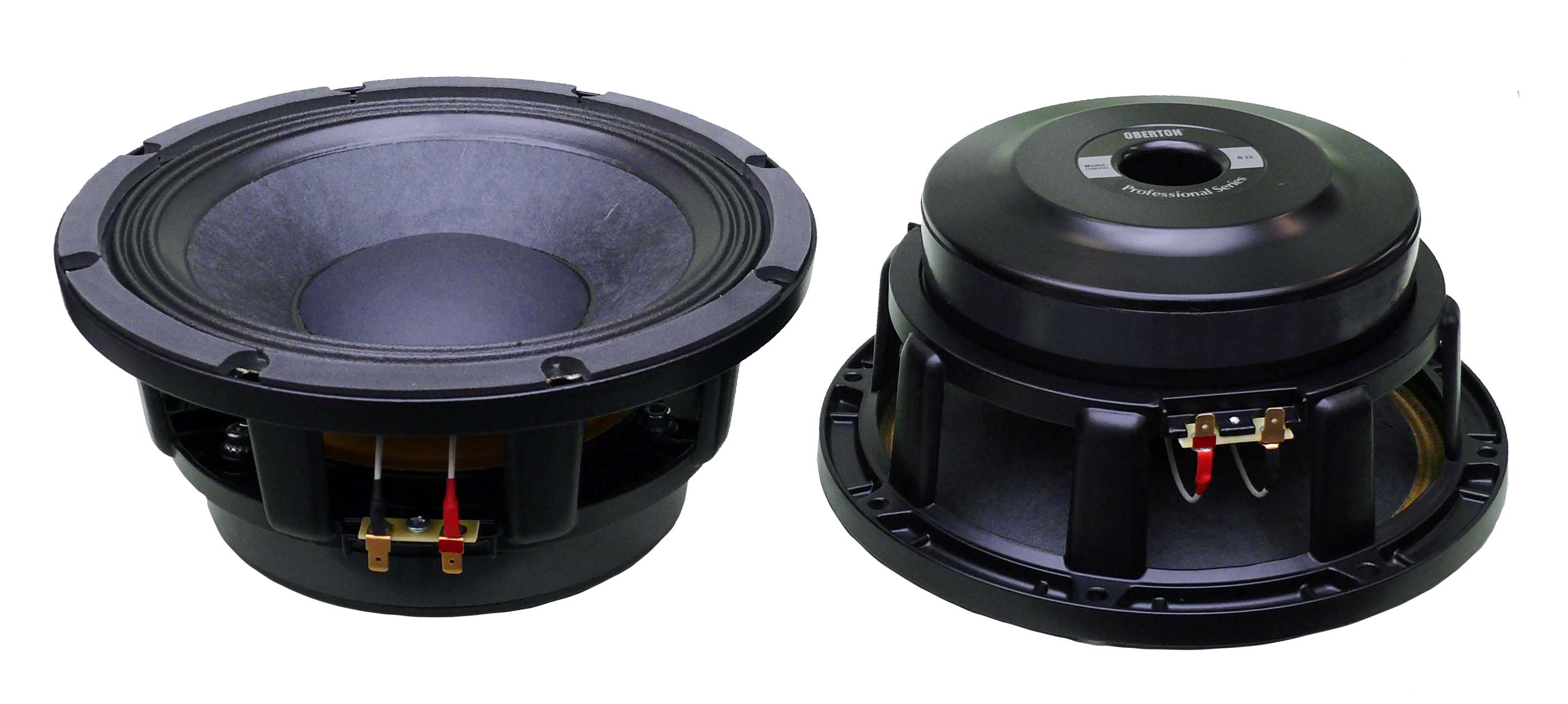

Oberton 10M300 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
161,00 €*
|
| Bis 4 |
160,00 €*
|
| Bis 6 |
159,00 €*
|
| Ab 7 |
157,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11503
Produktinformationen "Oberton 10M300 8 Ohm"
- Oberton 10M300

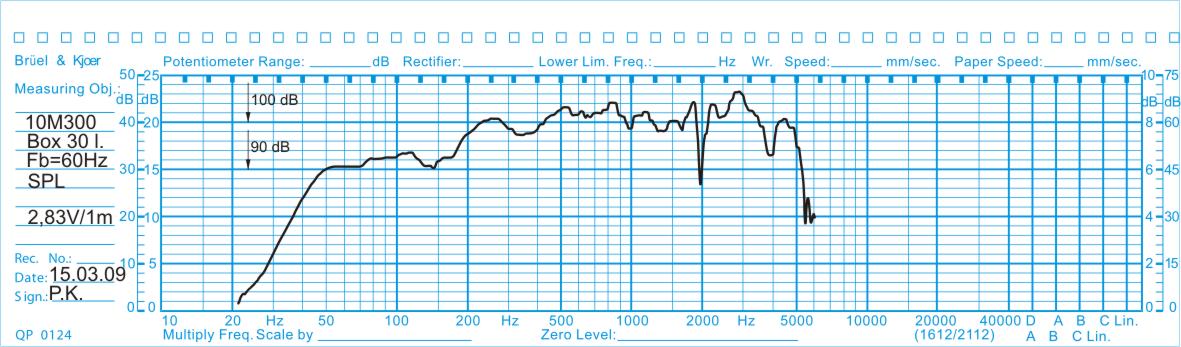

- 100 db 1W / 1m average sensitivity
- 77 mm high temperature aluminium voice coil
- 800 W AES program power
- Powerful, ferrite 180 mm magnet structure
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 10M300 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
10"/262 inch/mm 8 Ohm 6.67 Ohm 400 W 800 W (200-3000 Hz) 100dB/W/m 75-3500 Hz 77 mm Aluminium Kapton™ 15 mm 9 mm Paper Die cast aluminium Ferrite 1.33 T |
THIELE-SMALL PARAMETERS 10M300
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
59.79 Hz 8.47 0.255 0.248 19.43 Litres 32.30 grams 5.48 Ohms 317.3 cm2 ± 5.25 mm 0.136 mm/N 18.22 T.m 0.60 mH |

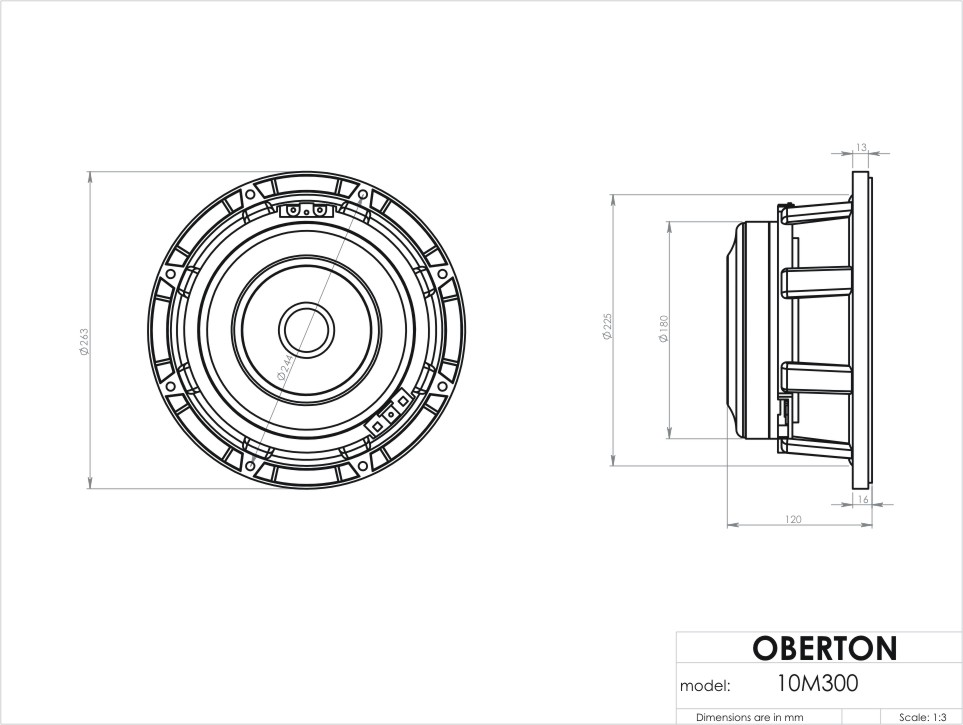

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
263 mm 225 mm 8 with dia. 7 mm 244 mm 120 mm 6.8 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 10" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
