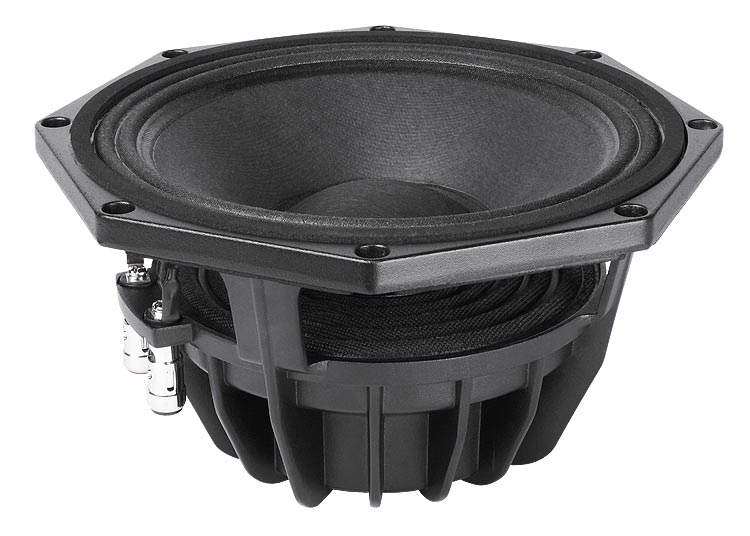

Faital PRO W8N8-150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
198,00 €*
|
| Bis 4 |
196,00 €*
|
| Bis 6 |
194,00 €*
|
| Ab 7 |
192,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11893
Produktinformationen "Faital PRO W8N8-150 8 Ohm"
Technische Daten Faital PRO W8N8-150 8 Ohm:
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.5 Ohm |
| AES Power Handling | 150 W |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 80÷6300 Hz |
| Flux Density | 1 T |
| Magnet | Neodymium Slug |
| Demodulation | No |
| Cone Surround | M-Roll |
| Fs | 76 Hz |
| Re | 5.8 Ohm |
| Qes | 0.59 |
| Qms | 4.7 |
| Qts | 0.52 |
| Vas | 14.4 dm^3 (0.51 ft^3) |
| Sd | 222 cm^2 (34.41 in^2) |
| Xmax | 5.52 mm |
| Xdamage | 12 mm |
| Mms | 20.9 g |
| Bl | 9.9 N/A |
| Le | 0.55 mH |
| Mmd | 17.2 g |
| Cms | 0.21 mm/N |
| Rms | 2.1 kg/s |
| Eta Zero | 1.04 % |
| EBP | 129 Hz |

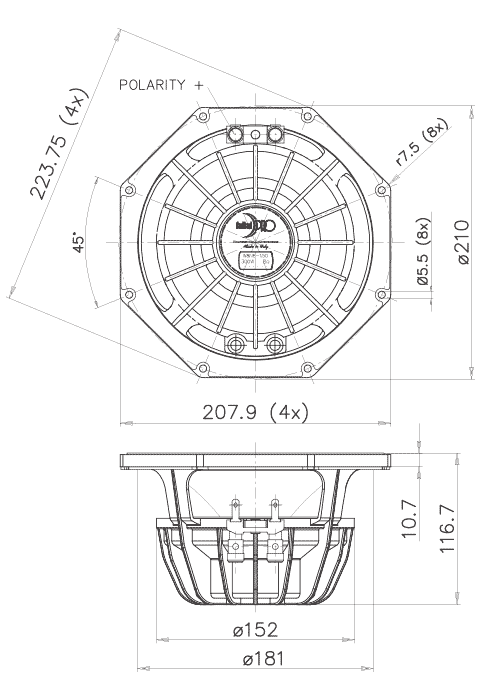

Mechanische Daten:
| Nominal Diameter | 200 mm (8 in) |
| Overall Diameter | 223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 183 mm (7.20 in) |
| Depth | 116.7 mm (4.59 in) |
| Flange and Gasket Thickness | 10.7 mm (0.42 in) |
| Net Weight | 1.7 kg (3.7 lb) |
| Shipping Box (Single Carton Box) |
235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in) |
| Shipping Weight | 2.6 kg (5.7 lb) |
Faital Pro W8N8-150
| Coaxial: | NEIN |
|---|---|
| Größe: | 8" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,51 - 0,60 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
