Faital PRO HF140 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
424,00 €*
|
| Bis 4 |
420,50 €*
|
| Bis 6 |
416,50 €*
|
| Ab 7 |
412,50 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11918
Produktinformationen "Faital PRO HF140 8 Ohm"
HF140 - 1.4" - 70 W - 109 dB - 8 Ohm
Technische Daten Faital PRO HF140 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.3 Ohm |
| AES Power above 0.9 kHz | 70 W |
| AES Power above 0.65 kHz | 50 W |
| Maximum Power above 0.9 kHz | 140 W |
| Maximum Power above 0.65 kHz | 100 W |
| Minimum Crossover Frequency | 0.9 kHz |
| Sensitivity (1W/1m) | 109 dB |
| Frequency Range | 0.5÷18 kHz |
| Voice Coil Diameter | 74 mm (2.91 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Titanium |
| Diaphragm Shape | Dome |
| Winding Depth | 2.35 mm (0.09 in) |
| Magnetic Gap Depth | 2.8 mm (0.11 in) |
| Flux Density | 1.8 T |
| Magnet | Neodymium Slug Crown |
| Re | 5.6 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 7° Conical |
| NET Air Volume filled by HF Driver |
0.7 dm^3 (0.025 ft^3) |

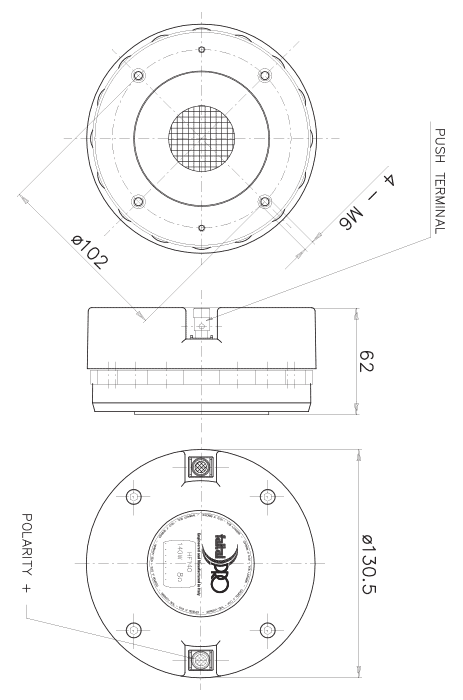

Mechanische Daten HF140
| Throat Diameter | 35.6 mm (1.4 in) |
| Overall Diameter | 130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) | 102 mm (4.02 in) |
| Depth | 62 mm (2.44 in) |
| Net Weight | 2.9 kg (6.4 lb) |
| Shipping Box (Single carton box) |
185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 3.1 kg (6.8 lb) |
Faital PRO HF140
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Titanium |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
