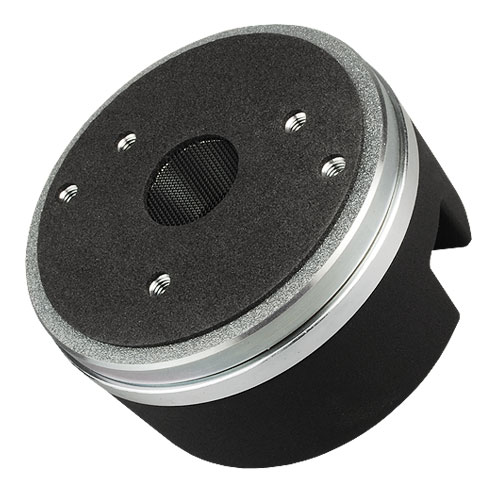

Faital PRO HF10AK 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
312,00 €*
|
| Bis 4 |
310,00 €*
|
| Bis 6 |
307,00 €*
|
| Ab 7 |
304,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11917
Produktinformationen "Faital PRO HF10AK 8 Ohm"
HF10AK - 1" - 60 W - 110 dB - 8 Ohm
Technische Daten Faital PRO HF10AK 8 Ohm

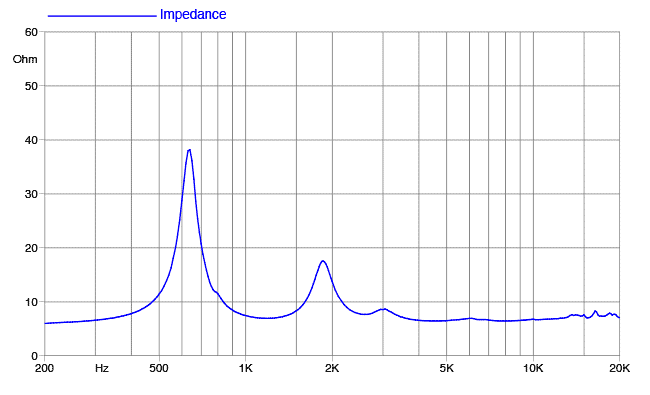

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 60 W |
| Maximum Power Handling | 120 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity (1W/1m) | 110 dB |

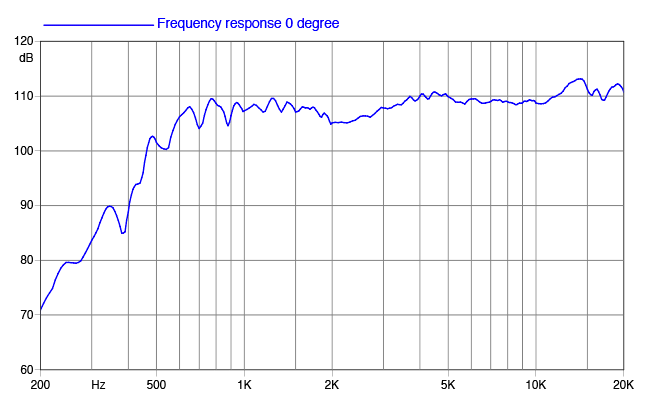

| Frequency Range | 0.8÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 1.9 mm (0.07 in) |
| Magnetic Gap Depth | 2.65 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Neodymium Ring |
| Re | 5.8 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | 21° Conical |
| NET Air Volume filled by HF Driver |
0.35 dm^3 (0.012 ft^3) |

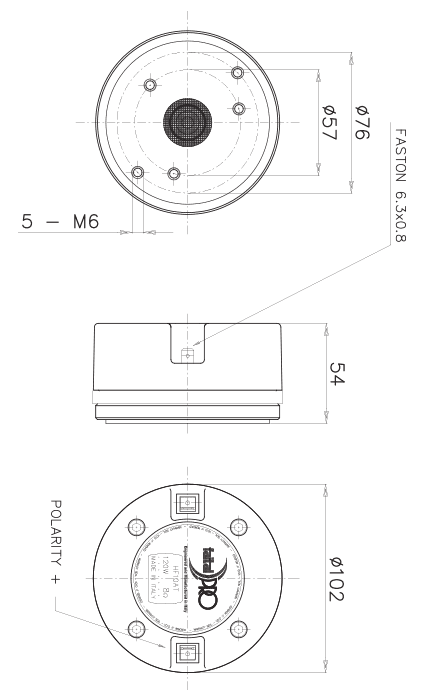

Mechanische Daten HF10AK
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 102 mm (4.02 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| 120° Mounting Holes Diameter (3xM6) | 57 mm (2.24 in) |
| Depth | 54 mm (2.13 in) |
| Net Weight | 1.4 kg (3.1 lb) |
| Shipping Box (Single carton box) |
147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 1.5 kg (3.3 lb) |
Faital PRO HF10AK
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
