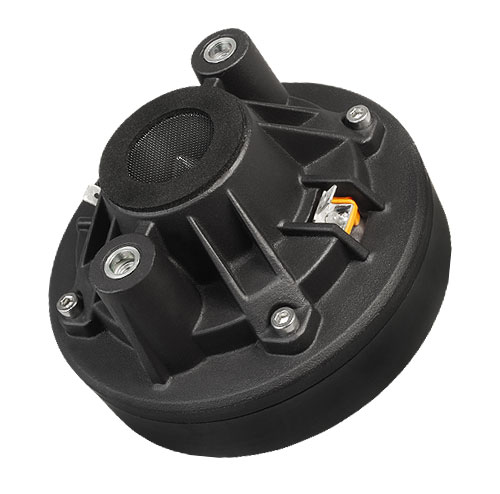

Faital PRO HF107 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
194,00 €*
|
| Bis 4 |
193,00 €*
|
| Bis 6 |
191,00 €*
|
| Ab 7 |
189,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11916
Produktinformationen "Faital PRO HF107 8 Ohm"
HF107 - 1" - 70 W - 109 dB - 8 Ohm
Technische Daten Faital PRO HF107 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.8 Ohm |
| AES Power Handling | 70 W |
| Maximum Power Handling | 140 W |
| Minimum Crossover Frequency | 1.3 kHz |
| Sensitivity (1W/1m) | 109 dB |
| Frequency Range | 1.3÷20 kHz |
| Voice Coil Diameter | 44 mm (1.73 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.3 mm (0.09 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.9 T |
| Magnet | Ferrite Ring |
| Re | 5.4 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver |
0.5 dm^3 (0.018 ft^3) |

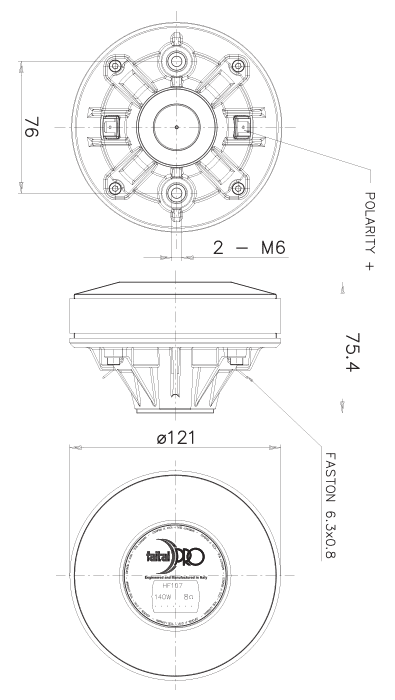

Mechanische Daten HF107
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 121 mm (4.76 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| Depth | 75.4 mm (2.97 in) |
| Net Weight | 2.5 kg (5.5 lb) |
| Shipping Box (Single carton box) |
185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in) |
| Shipping Weight | 2.7 kg (5.8 lb) |
Faital PRO HF107
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
