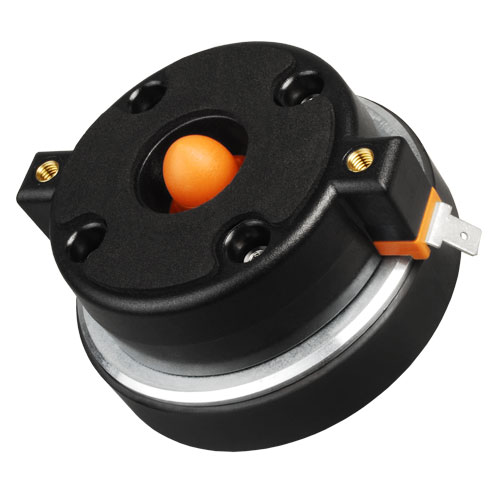

Faital PRO HF100 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
78,00 €*
|
| Bis 4 |
77,50 €*
|
| Bis 6 |
77,00 €*
|
| Ab 7 |
76,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11912
Produktinformationen "Faital PRO HF100 8 Ohm"
HF100 - 1" - 30 W - 108 dB - 8 Ohm
Technische Daten Faital PRO HF100 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power Handling | 30 W |
| Maximum Power Handling | 60 W |
| Minimum Crossover Frequency | 2 kHz |
| Sensitivity (1W/1m) | 108 dB |
| Frequency Range | 1.5÷20 kHz |
| Voice Coil Diameter | 25 mm (0.98 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
| Winding Depth | 1.7 mm (0.07 in) |
| Magnetic Gap Depth | 2 mm (0.08 in) |
| Flux Density | 1.7 T |
| Magnet | Ferrite Ring |
| Re | 6 Ohm |
| Phase Plug Design | Radial |
| Exit Angle (5) | 9° Conical |
| NET Air Volume filled by HF Driver |
0.25 dm^3 (0.009 ft^3) |

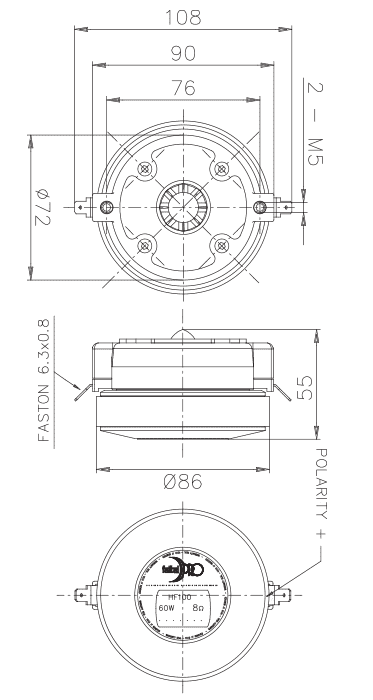

Mechanische Daten HF100
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 108 mm (4.02 in) |
| 180° Mounting Holes Diameter (2xM6) | 76 mm (2.99 in) |
| Depth | 55 mm (2.17 in) |
| Net Weight | 830 g (1.8 lb) |
| Shipping Box (Single carton box) |
147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in) |
| Shipping Weight | 862 g (1.90 lb) |
Faital PRO HF100
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
