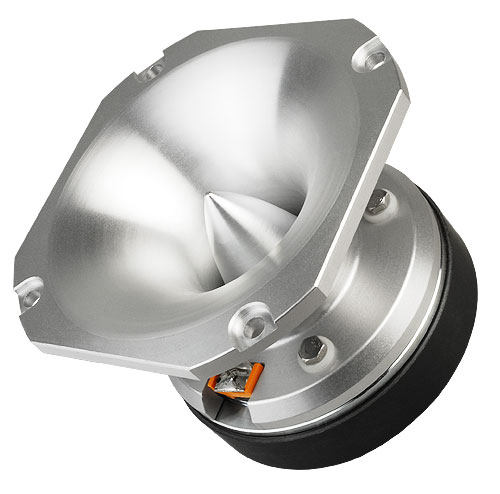

Faital PRO FD371 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
190,00 €*
|
| Bis 4 |
188,30 €*
|
| Bis 6 |
186,60 €*
|
| Ab 7 |
185,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11911
Produktinformationen "Faital PRO FD371 8 Ohm"
FD371 - 37mm - 35 W - 107 dB - 8 Ohm
Technische Daten Faital PRO FD371 8 Ohm
Technische Daten Faital PRO FD371 8 Ohm

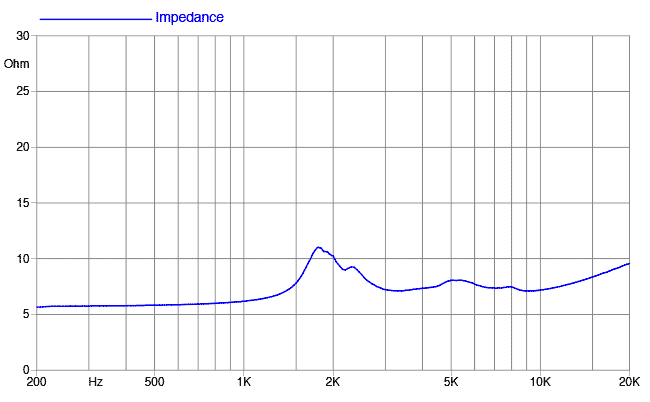

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 35 W |
| Maximum Power Handling | 70 W |
| Minimum Crossover Frequency | 2.6 kHz |
| Sensitivity (1W/1m) | 107 dB |

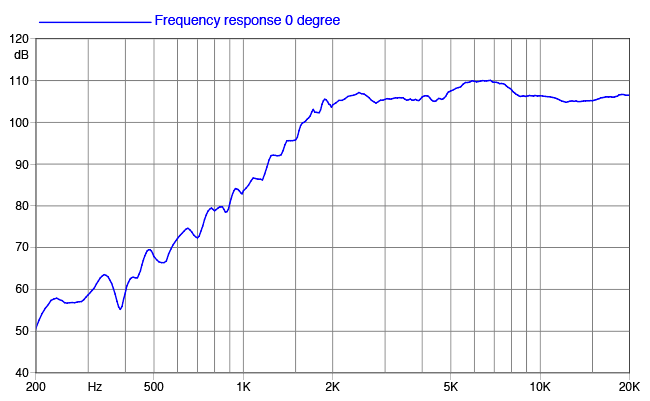

| Frequency Range | 2.6÷20 kHz |
| Dispersion Angle | 40° |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.1 mm (0.08 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.5 T |
| Magnet | Ferrite Ring |
| Re | 5.5 Ohm |
| Phase Plug Design | Annular |
| Exit Angle | N/A |
| NET Air Volume filled by HF Driver |
0.3 dm^3 (0.011 ft^3) |

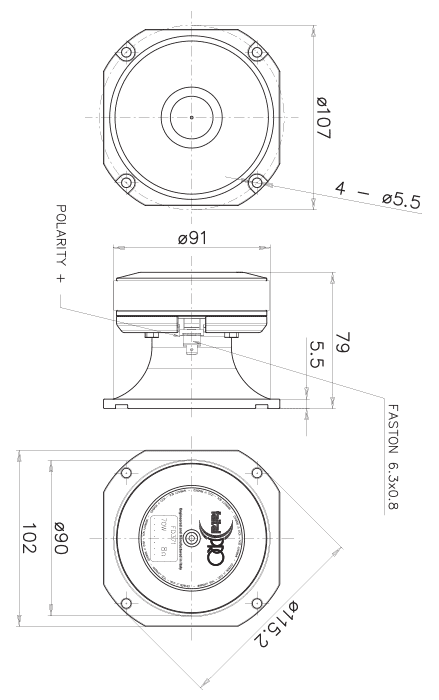

Mechanische Daten FD371
| Throat Diameter | N/A |
| Overall Diameter | 115.2/102 mm (4.54/4.0 in) |
| Depth | 79 mm (3.11 in) |
| Net Weight | 1.3 kg (2.8 lb) |
| Shipping Box (Single carton box) |
150 x 123 x 102 mm (5.9 x 4.8 x 4.0 in) |
| Shipping Weight | 1.3 kg (2.9 lb) |
Faital PRO FD371
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Hochtöner Bauform: | Tweeter / Ringstrahler |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
