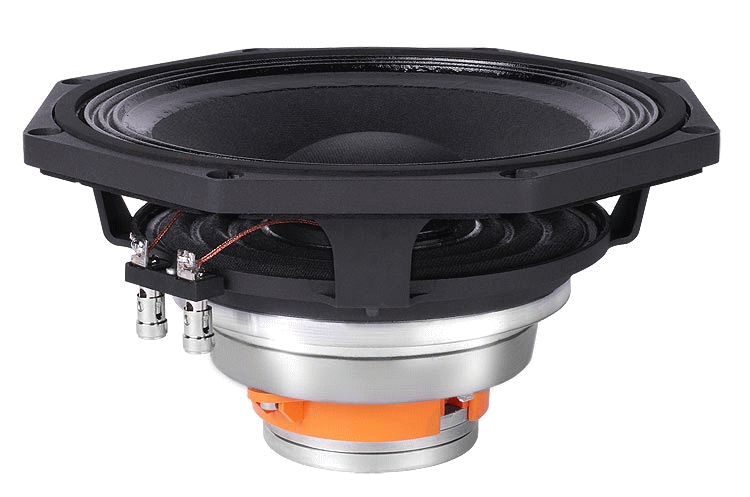

Faital PRO 8HX200 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
376,00 €*
|
| Bis 4 |
373,00 €*
|
| Bis 6 |
369,00 €*
|
| Ab 7 |
365,50 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11900
Produktinformationen "Faital PRO 8HX200 8 Ohm"
Technische Daten Faital PRO 8HX200 8 Ohm:
| { LF } { HF } |
| Nom. Impedance | 8 Ohm | 8 Ohm |
| Minimum Impedance | 6.6 Ohm | 6.9 Ohm |
| AES Power Handling | 250 W | 30 W |
| Sensitivity (1W/1m) | 95 dB | 107 dB |
| Frequency Range | 75÷4000 Hz | 1500÷20000 Hz |
| Flux Density | 1.2 T | 1.85 T |
| Min. Cross. Freq. | - | 1.7 kHz |
| Dispersion Angle | - | 90° |
| Diaphragm Material | - | Ketone Polymer |
| Diaphragm Shape | - | Annular |
| Magnet | Neodymium Ring | Neodymium Ring |
| Demodulation | Aluminum Ring | - |
| Cone Surround | Triple Roll | - |
Quick acoustic specs { LF }
| Fs | 76 Hz |
| Re [LF] | 5.5 Ohm |
| Re [HF] | 5.5 Ohm |
| Qes | 0.31 |
| Qms | 10.5 |
| Qts | 0.30 |
| Vas | 13.1 dm^3 (0.46 ft^3) |
| Sd | 217.2 cm^2 (33.67 in^2) |
| Xmax | 4.92 mm |
| Xdamage | 10.2 mm |
| Mms | 22.0 g |
| Bl | 13.8 N/A |
| Le | 0.51 mH |
| Mmd | 18.4 g |
| Cms | 0.20 mm/N |
| Rms | 1.0 kg/s |
| Eta Zero | 1.84 % |
| EBP | 245 Hz |

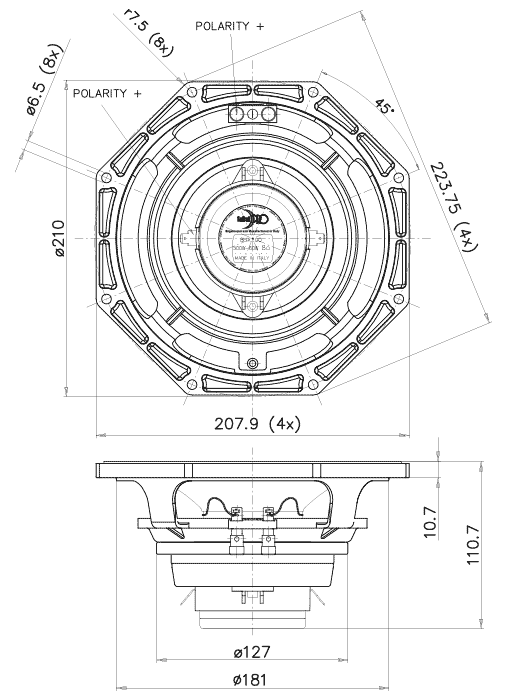

Mechanische Daten:
| Nom. Diameter | 200 mm (8 in) |
| Overall Diameter | 223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 183 mm (7.20 in) |
| Depth | 110.7 mm (4.36 in) |
| Flange and Gasket Thickness | 10.7 mm (0.42 in) |
| Net Weight | 2.7 kg (6.0 lb) |
| Shipping Box (Single Carton Box) |
227 x 224 x 132 mm (8.9 x 8.8 x 5.2 in) |
| Shipping Weight | 3.4 kg (7.5 lb) |
Faital Pro 8HX200
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 8" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
