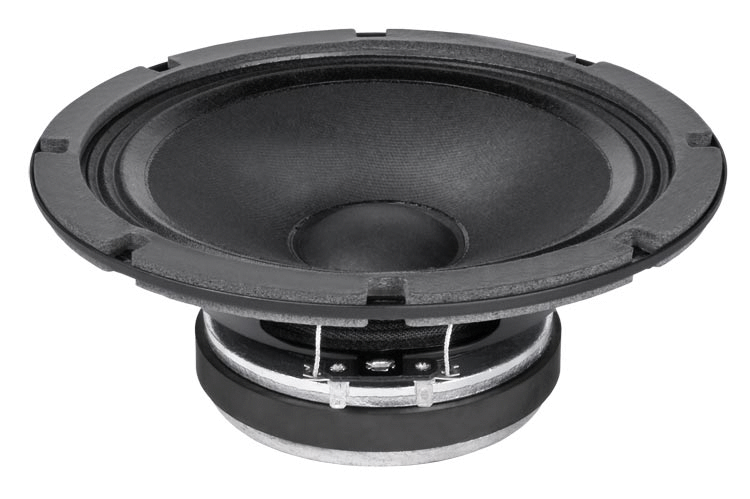

Faital PRO 8FE200 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
82,00 €*
|
| Bis 4 |
81,00 €*
|
| Bis 6 |
80,00 €*
|
| Ab 7 |
79,25 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11891
Produktinformationen "Faital PRO 8FE200 8 Ohm"
8FE200 - 8" - 130 W - 95 dB - 8 Ohm - 8FE200
Technische Daten Faital PRO 8FE200 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.8 Ohm |
| AES Power Handling | 130 W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 60÷5000 Hz |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | Triple Roll |
| Fs | 80 Hz |
| Re | 5.9 Ohm |
| Qes | 0.66 |
| Qms | 13.0 |
| Qts | 0.63 |
| Vas | 16.1 dm^3 (0.57 ft^3) |
| Sd | 209 cm^2 (32.44 in^2) |
| Xmax | 4.67 mm |
| Xdamage | 10.4 mm |
| Mms | 15.0 g |
| Bl | 8.2 N/A |
| Le | 0.44 mH |
| Mmd | 11.6 g |
| Cms | 0.26 mm/N |
| Rms | 0.6 kg/s |
| Eta Zero | 1.21 % |
| EBP | 121 Hz |

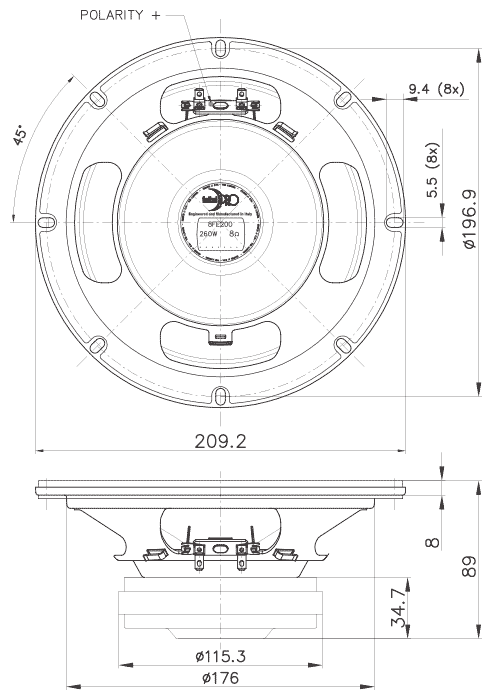

Mechanische Daten 8FE200
| Nominal Diameter | 200 mm (8 in) |
| Overall Diameter | 209.2 mm (8.24 in) |
| Bolt Circle Diameter | 196.9 mm (7.75 in) |
| Baffle Cutout Diameter | 178 mm (7.01 in) |
| Depth | 89 mm (3.50 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Net Weight | 2.2 kg (4.7 lb) |
| Shipping Box (Single Carton Box) |
227 x 224 x 113 mm (8.9 x 8.8 x 4.4 in) |
| Shipping Weight | 3 kg (6.6 lb) |
Faital PRO 8FE200
| Coaxial: | NEIN |
|---|---|
| Größe: | 8" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,61 - 0,99 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
