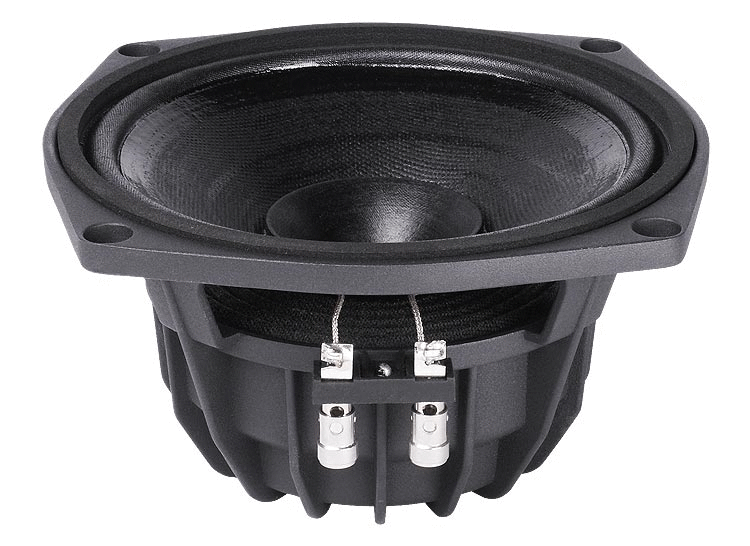

Faital PRO 6PR150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
165,00 €*
|
| Bis 4 |
164,00 €*
|
| Bis 6 |
163,00 €*
|
| Ab 7 |
162,00 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11897
Produktinformationen "Faital PRO 6PR150 8 Ohm"
6PR150 - 6" - 150 W - 97 dB - 8 Ohm - 6PR150
Technische Daten Faital PRO 6PR150 8 Ohm

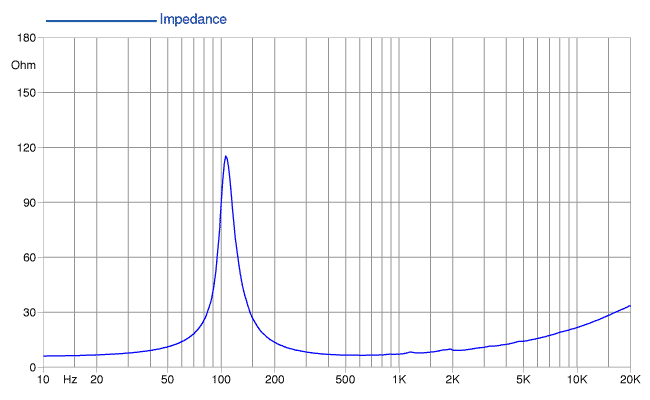

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 150 W |
| Sensitivity (1W/1m) | 97 dB |

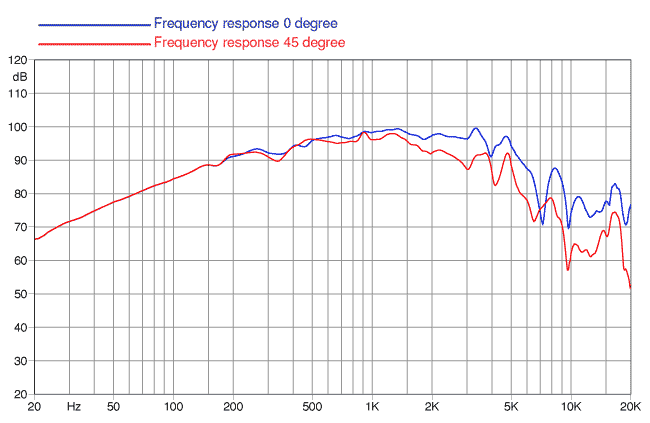

| Frequency Range | 100÷5000 Hz |
| Flux Density | 1.35 T |
| Magnet | Neodymium Ring |
| Demodulation | Aluminum Ring |
| Cone Surround |
Half Roll |
| Fs | 100 Hz |
| Re | 5.5 Ohm |
| Qes | 0.35 |
| Qms | 8.8 |
| Qts | 0.34 |
| Vas | 4.9 dm^3 (0.17 ft^3) |
| Sd | 137 cm^2 (21.28 in^2) |
| Xmax |
2.65 mm |
| Xdamage | 11.6 mm |
| Mms | 13.5 g |
| Bl | 11.6 N/A |
| Le | 0.28 mH |
| Mmd | 11.7 g |
| Cms | 0.19 mm/N |
| Rms | 1.0 kg/s |
| Eta Zero | 1.38 % |
| EBP | 286 Hz |

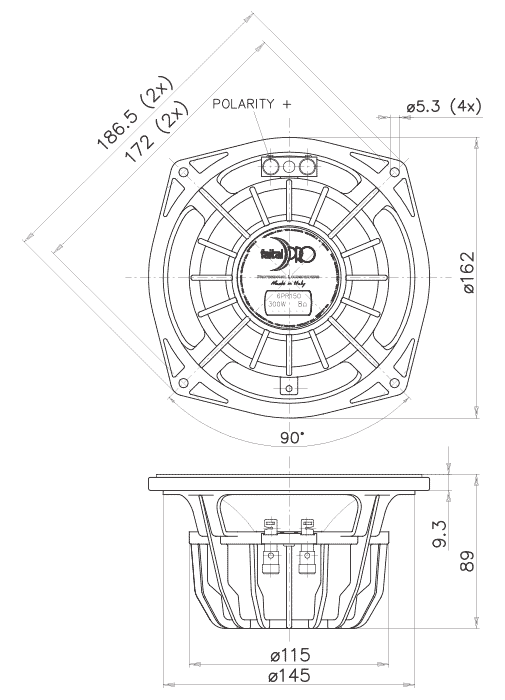

Mechanische Daten 6PR150
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 186.5/162 mm (7.34/6.37 in) |
| Bolt Circle Diameter | 172 mm (6.77 in) |
| Baffle Cutout Diameter | 147 mm (5.78 in) |
| Depth | 89 mm (3.50 in) |
| Flange and Gasket Thickness | 9.3 mm (0.37 in) |
| Net Weight | 1.4 kg (3.1 lb) |
| Shipping Box (Single Carton Box) |
195 x 195 x 141 mm (7.7 x 7.7 x 5.6 in) |
| Shipping Weight | 1.6 kg (3.5 lb) |
Faital PRO 6PR150
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
