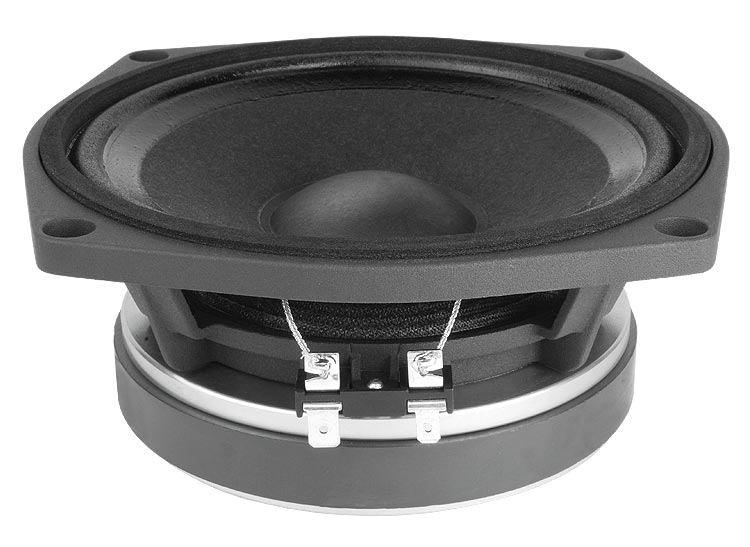

Faital PRO 6PR110 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
117,00 €*
|
| Bis 4 |
116,00 €*
|
| Bis 6 |
115,00 €*
|
| Ab 7 |
114,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11896
Produktinformationen "Faital PRO 6PR110 8 Ohm"
6PR110 - 6" - 150 W - 96 dB - 8 Ohm - 6PR110
Technische Daten Faital PRO 6PR110 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power Handling | 150 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 100÷6000 Hz |
| Flux Density | 1.35 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | Half Roll |
| Fs | 100 Hz |
| Re | 6 Ohm |
| Qes | 0.60 |
| Qms | 4.2 |
| Qts | 0.53 |
| Vas | 5.6 dm^3 (0.20 ft^3) |
| Sd | 137 cm^2 (21.28 in^2) |
| Xmax | 2.75 mm |
| Xdamage | 11.6 mm |
| Mms | 12.0 g |
| Bl | 8.5 N/A |
| Le | 0.22 mH |
| Mmd | 10.2 g |
| Cms | 0.20 mm/N |
| Rms | 1.8 kg/s |
| Eta Zero | 0.86 % |
| EBP | 167 Hz |

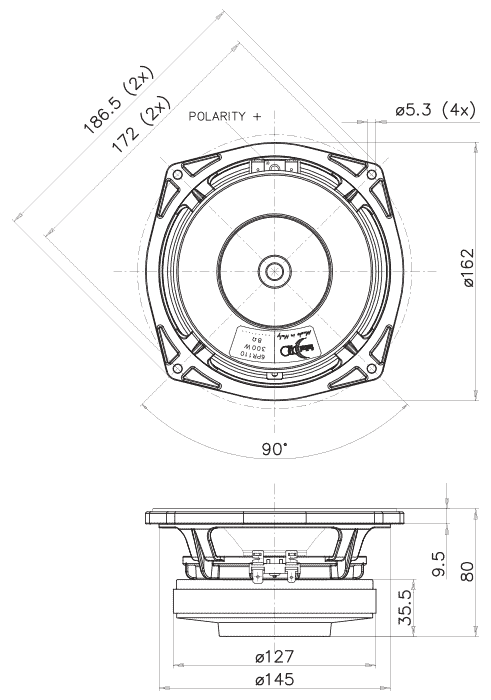

Mechanische Daten 6PR110
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 186.5/162 mm (7.34/6.37 in) |
| Bolt Circle Diameter | 172 mm (6.77 in) |
| Baffle Cutout Diameter | 147 mm (5.79 in) |
| Depth | 80 mm (3.15 in) |
| Flange and Gasket Thickness | 9.5 mm (0.37 in) |
| Net Weight | 2.2 kg (4.9 lb) |
| Shipping Box (Single Carton Box) |
190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) |
| Shipping Weight | 2.4 kg (5.3 lb) |
Faital PRO 6PR110
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,51 - 0,60 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
