Faital PRO 6HX150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
274,00 €*
|
| Bis 4 |
272,00 €*
|
| Bis 6 |
269,00 €*
|
| Ab 7 |
266,50 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11898

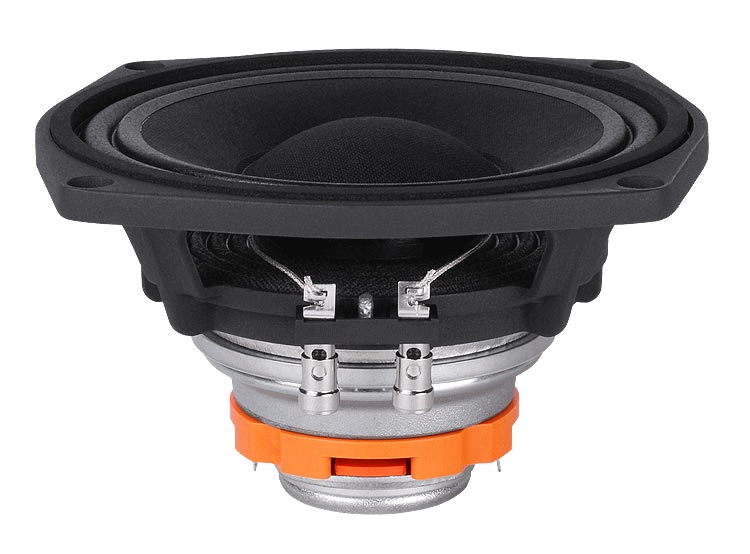

Produktinformationen "Faital PRO 6HX150 8 Ohm"
6HX150 - LF 6" - 150 W - 93 dB - 8 Ohm | HF 15 W - 104 dB - 8 Ohm - 6HX150
Technische Daten Faital PRO 6HX150 8 Ohm
| { LF } { HF } |

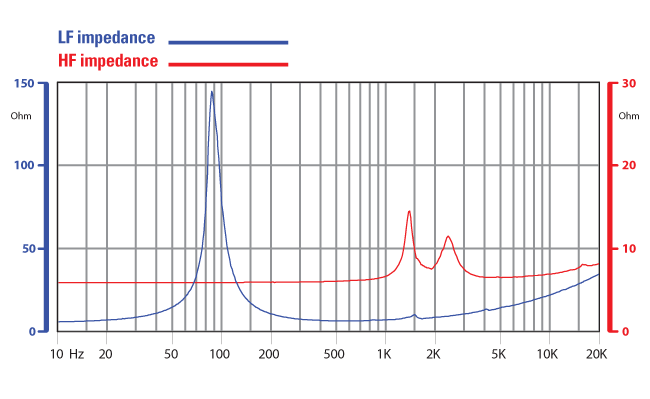

| Nom. Impedance | 8 Ohm | 8 Ohm |
| Minimum Impedance | 6 Ohm | 6.3 Ohm |
| AES Power Handling (1) | 150 W | 15 W |
| Sensitivity (1W/1m) (2) | 93 dB | 104 dB |

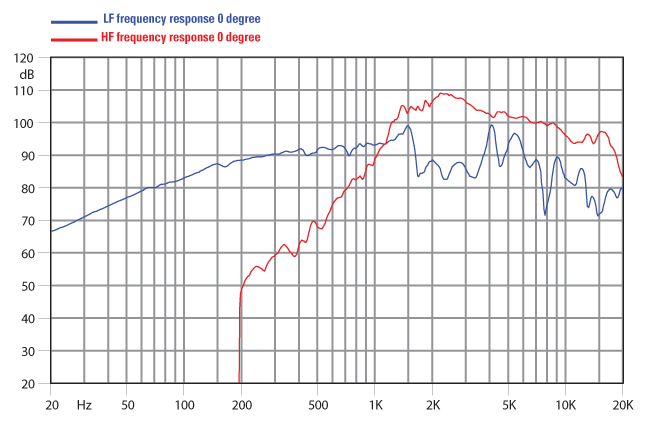

| Frequency Range | 90÷5000 Hz | 1500÷18000 Hz |
| Flux Density | 1.35 T | 1.3 T |
| Min. Cross. Freq. (3) | - | 1.7 kHz |

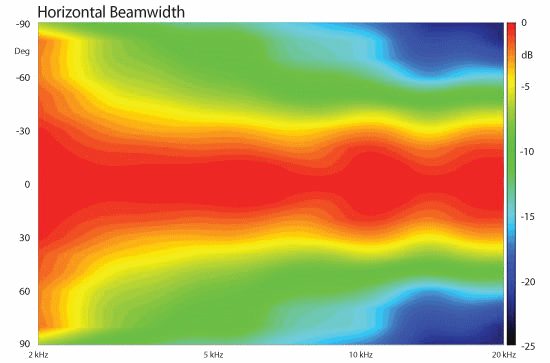

| Dispersion Angle | - | 90° |
| Diaphragm Material | - | Ketone Polymer |
| Diaphragm Shape | - | Dome |
| Magnet | Neodymium Ring | Neodymium Ring |
| Demodulation | Aluminum Ring | - |
| Cone Surround (4) | Half Roll | - |
Quick acoustic specs LF 6HX150
| Fs | 88 Hz |
| Re [LF] | 5.5 Ohm |
| Re [HF] | 6 Ohm |
| Qes | 0.35 |
| Qms | 8.3 |
| Qts | 0.34 |
| Vas | 6.3 dm^3 (0.22 ft^3) |
| Sd | 139.2 cm^2 (21.58 in^2) |
| Xmax (5) | 4.35 mm |
| Xdamage (6) | 10.15 mm |
| Mms | 14 g |
| Bl | 12 N/A |
| Le | 0.64 mH |
| Mmd | 12.1 g |
| Cms | 0.23 mm/N |
| Rms | 0.9 kg/s |
| Eta Zero | 1.41 % |
| EBP | 251 Hz |

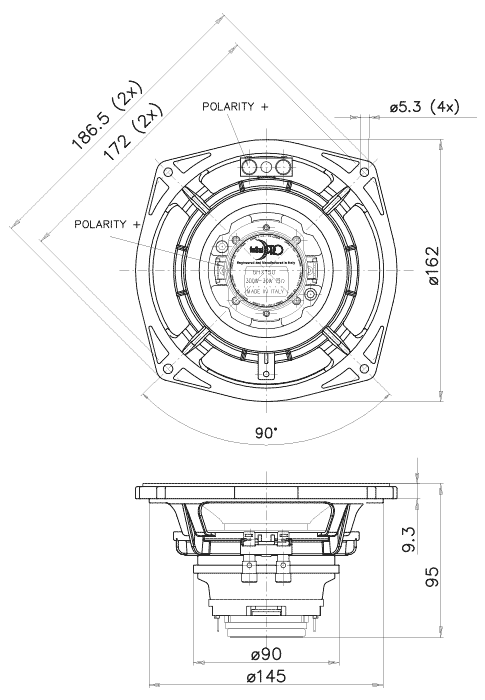

Mechanische Daten 6HX150
| Nom. Diameter | 160 mm (6 in) |
| Overall Diameter | 186.5/162 mm (7.34/6.37 in) |
| Bolt Circle Diameter | 172 mm (6.77 in) |
| Baffle Cutout Diameter | 147 mm (5.79 in) |
| Depth | 95 mm (3.74 in) |
| Flange and Gasket Thickness | 9.3 mm (0.37 in) |
| Net Weight | 1.3 kg (2.9 lb) |
| Shipping Box (Single Carton Box) |
202 x 202 x 134 mm (8.0 x 8.0 x 5.3 in) |
| Shipping Weight | 2.8 kg (6.2 lb) |
Faital PRO 6HX150
| Coaxial: | JA |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 6" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
