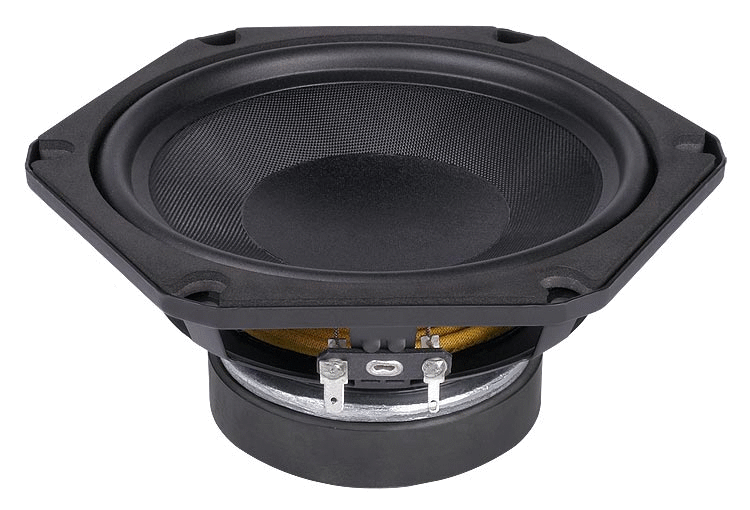

Faital PRO 6FE100 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
51,00 €*
|
| Bis 4 |
50,75 €*
|
| Bis 6 |
50,50 €*
|
| Ab 7 |
50,00 €*
|
Versandfertig in 10 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11894
Produktinformationen "Faital PRO 6FE100 8 Ohm"
6FE100 - 6" - 100 W - 91 dB - 8 Ohm - 6FE100
Technische Daten Faital PRO 6FE100 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 5.9 Ohm |
| AES Power Handling | 100 W |
| Sensitivity (1W/1m) | 91 dB |
| Frequency Range | 63÷5000 Hz |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | Aluminum Ring |
| Fs | 61 Hz |
| Re | 5.4 Ohm |
| Qes | 0.60 |
| Qms | 6.0 |
| Qts | 0.55 |
| Vas | 15.1 dm^3 (0.53 ft^3) |
| Sd | 149 cm^2 (23.10 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 13.15 mm |
| Mms | 14.0 g |
| Bl | 6.8 N/A |
| Le | 0.5 mH |
| Mmd | 11.9 g |
| Cms | 0.48 mm/N |
| Rms | 0.90 kg/s |
| Eta Zero | 0.53 % |
| EBP | 102 Hz |

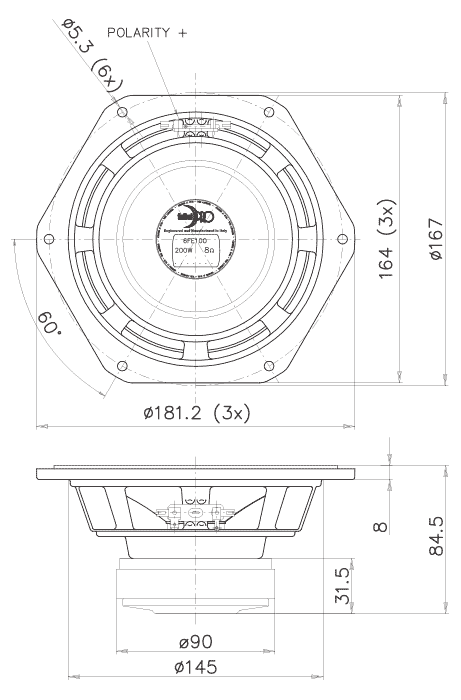

Mechanische Daten 6FE100
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 181.2/164 mm (7.13/6.46 in) |
| Bolt Circle Diameter | 167 mm (6.57 in) |
| Baffle Cutout Diameter | 147 mm (5.79 in) |
| Depth | 84.5 mm (3.33 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Net Weight | 1.2 kg (2.6 lb) |
| Shipping Box (Single Carton Box - 4 units) |
393 x 380 x 128 mm (15.5 x 15.0 x 5.0 in) |
| Shipping Weight (4 units) | 5.6 kg (12.3 lb) |
Faital PRO 6FE100
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
| TSP Qts: | 0,501 - 0,60 |
| TSP X-MAX (mm): | 5,1 - 10,0 mm |
