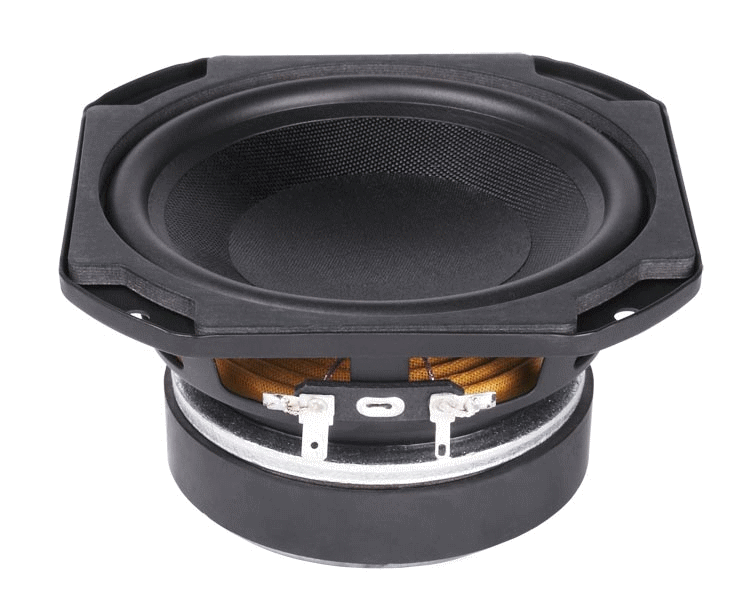

Faital PRO 5FE120 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
57,00 €*
|
| Bis 4 |
56,40 €*
|
| Bis 6 |
55,80 €*
|
| Ab 7 |
55,30 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11902
Produktinformationen "Faital PRO 5FE120 8 Ohm"
5FE120 - 5" - 80 W - 88 dB - 8 Ohm - 5FE120
Technische Daten Faital PRO 5FE120 8 Ohm

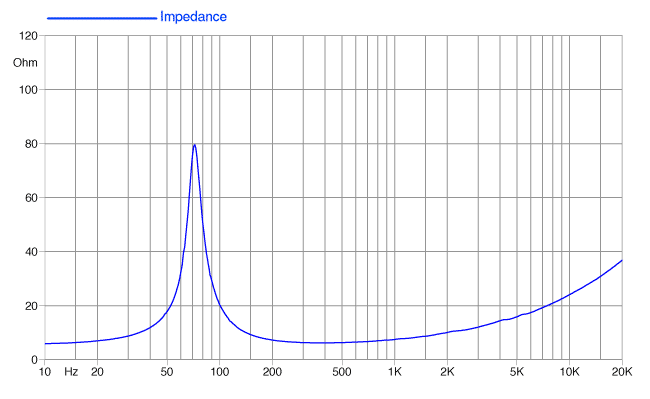

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.2 Ohm |
| AES Power Handling | 80 W |
| Sensitivity (1W/1m) | 88 dB |

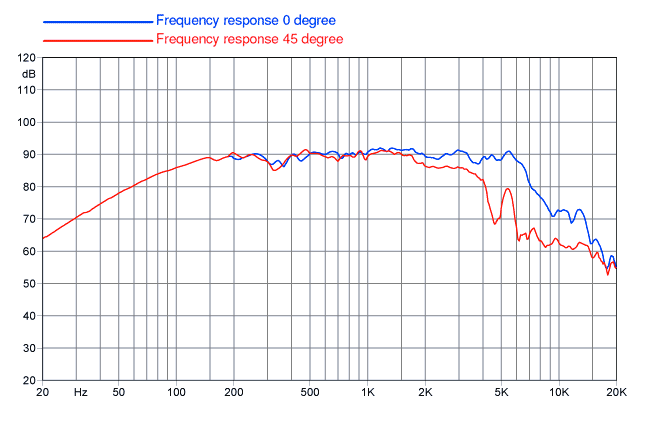

| Frequency Range | 63÷6300 Hz |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | Aluminum Ring |
| Fs | 65 Hz |
| Re | 5.4 Ohm |
| Qes | 0.51 |
| Qms | 7.4 |
| Qts | 0.48 |
| Vas | 5.4 dm^3 (0.19 ft^3) |
| Sd | 84 cm^2 (13.07 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 9.5 mm |
| Mms | 11.0 g |
| Bl | 6.9 N/A |
| Le | 0.41 mH |
| Mmd | 10.1 g |
| Cms | 0.55 mm/N |
| Rms | 0.6 kg/s |
| Eta Zero | 0.28 % |
| EBP | 127 Hz |

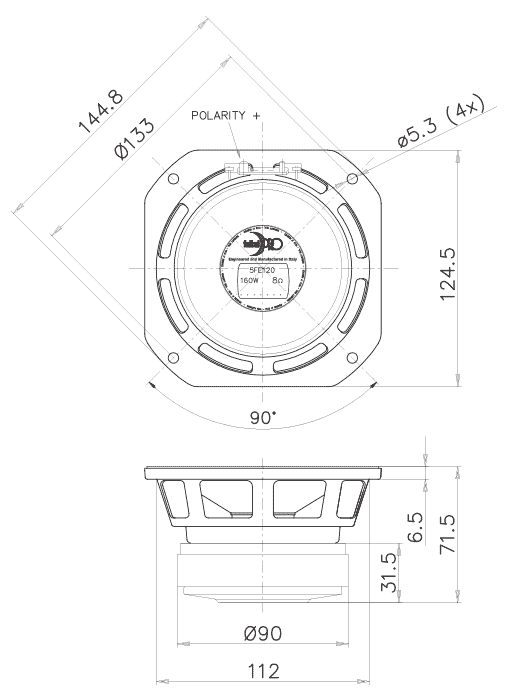

Mechanische Daten 5FE120
| Nominal Diameter | 130 mm (5 in) |
| Overall Diameter | 144.8/124.5 mm (5.7/4.9 in) |
| Bolt Circle Diameter | 133 mm (5.24 in) |
| Baffle Cutout Diameter | 114 mm (4.49 in) |
| Depth | 71.5 mm (2.81 in) |
| Flange and Gasket Thickness | 6.5 mm (0.25 in) |
| Net Weight | 1.1 kg (2.5 lb) |
| Shipping Box (Single Carton Box - 8 units) |
302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in) |
| Shipping Weight (8 units) | 9.6 kg (21.2 lb) |
Faital Pro 5FE120
| Coaxial: | NEIN |
|---|---|
| Größe: | 5" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,41 - 0,50 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
