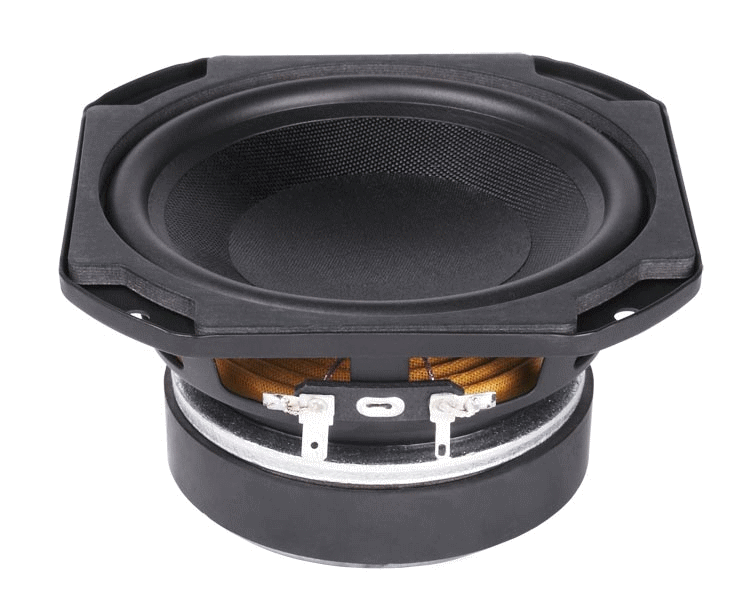

Faital PRO 5FE100 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
46,00 €*
|
| Bis 4 |
45,60 €*
|
| Bis 6 |
45,20 €*
|
| Ab 7 |
44,80 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11901
Produktinformationen "Faital PRO 5FE100 8 Ohm"
5FE100 - 5" - 80 W - 88 dB - 8 Ohm - 5FE100
Technische Daten Faital PRO 5FE100 8 Ohm

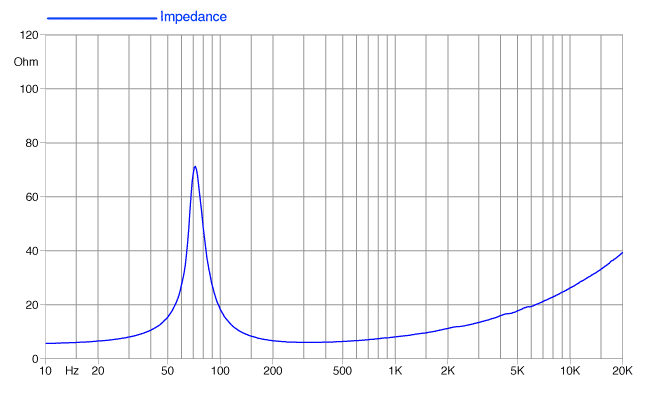

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.8 Ohm |
| AES Power Handling | 130 W |
| Sensitivity (1W/1m) | 95 dB |

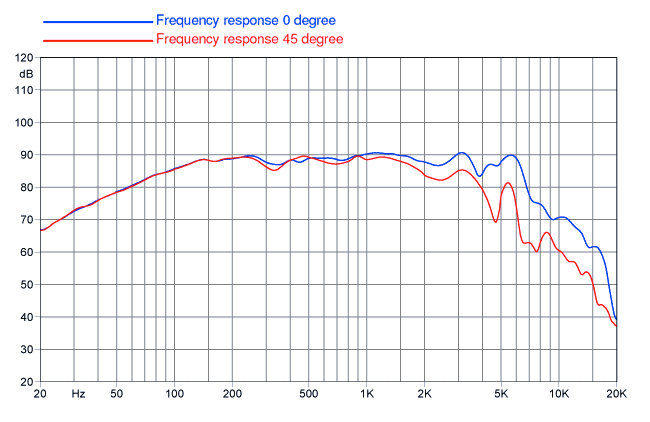

| Frequency Range | 85÷6000 Hz |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | M-Roll |
| Fs | 120 Hz |
| Re | 5.9 Ohm |
| Qes | 0.75 |
| Qms | 6.2 |
| Qts | 0.67 |
| Vas | 3.6 dm^3 (0.13 ft^3) |
| Sd | 131 cm^2 (20.23 in^2) |
| Xmax | 4.67 mm |
| Xdamage | 10.4 mm |
| Mms | 11.5 g |
| Bl | 8.2 N/A |
| Le | 0.4 mH |
| Mmd | 9.8 g |
| Cms | 0.15 mm/N |
| Rms | 1.4 kg/s |
| Eta Zero | 0.80 % |
| EBP | 160 Hz |
Mechanische Daten 5FE100
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 167.4 mm (6.59 in) |
| Bolt Circle Diameter | 154 mm (6.06 in) |
| Baffle Cutout Diameter | 144 mm (5.67 in) |
| Depth | 77 mm (3.03 in) |
| Flange and Gasket Thickness | 8 mm (0.31 in) |
| Net Weight | 2 kg (4.4 lb) |
| Shipping Box (Single Carton Box) |
190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) |
| Shipping Weight | 2.2 kg (4.9 lb) |
Faital Pro 5FE100
| Coaxial: | NEIN |
|---|---|
| Größe: | 5" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,41 - 0,50 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
