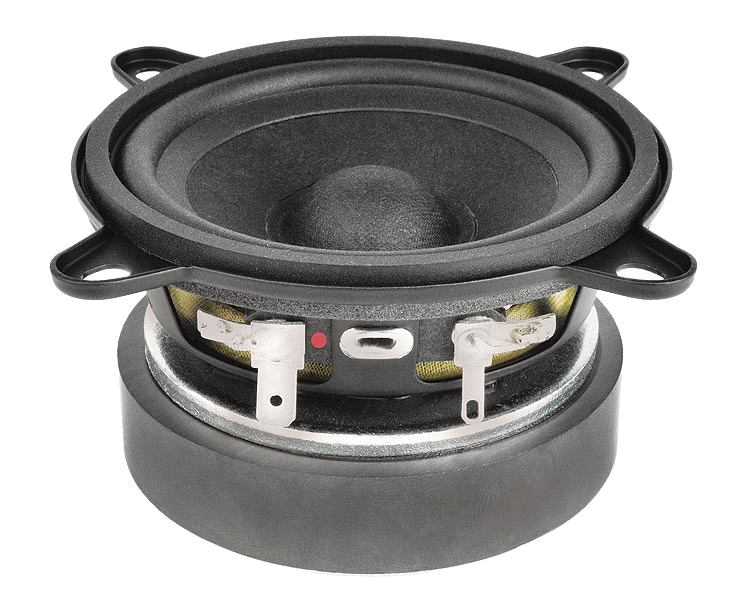

Faital PRO 3FE25 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
29,00 €*
|
| Bis 4 |
28,60 €*
|
| Bis 6 |
28,20 €*
|
| Ab 7 |
27,70 €*
|
Versandfertig in 10 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11904
Produktinformationen "Faital PRO 3FE25 8 Ohm"
3FE25 - 3" - 20 W - 91 dB - 8 Ohm - 3FE25
Technische Daten Faital PRO 3FE25 8 Ohm

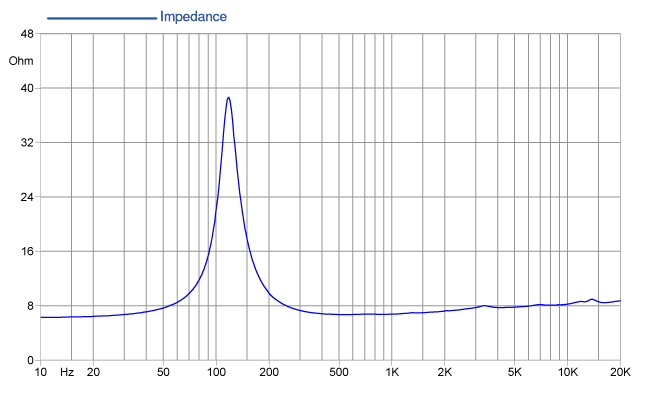

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.2 Ohm |
| AES Power Handling | 20 W |
| Sensitivity (1W/1m) | 91 dB |

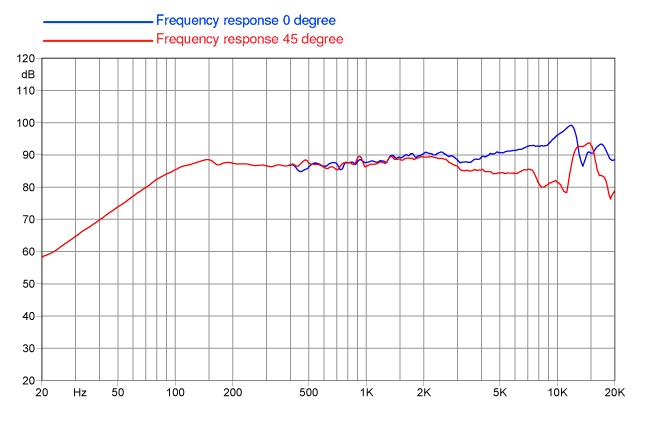

| Frequency Range | 100÷20000 Hz |
| Flux Density | 1.1 T |
| Magnet | Ferrite Ring |
| Demodulation | Copper Cap |
| Fs | 110 Hz |
| Re | 6.2 Ohm |
| Qes | 0.79 |
| Qms | 4.1 |
| Qts | 0.66 |
| Vas | 1.3 dm^3 (0.05 ft^3) |
| Sd | 33 cm^2 (5.12 in^2) |
| Xmax | 1.83 mm |
| Xdamage | 7.9 mm |
| Mms | 2.4 g |
| Bl | 3.6 N/A |
| Le | 0.07 mH |
| Mmd | 2.2 g |
| Cms | 0.87 mm/N |
| Rms | 0.4 kg/s |
| Eta Zero | 0.22 % |
| EBP | 139 Hz |

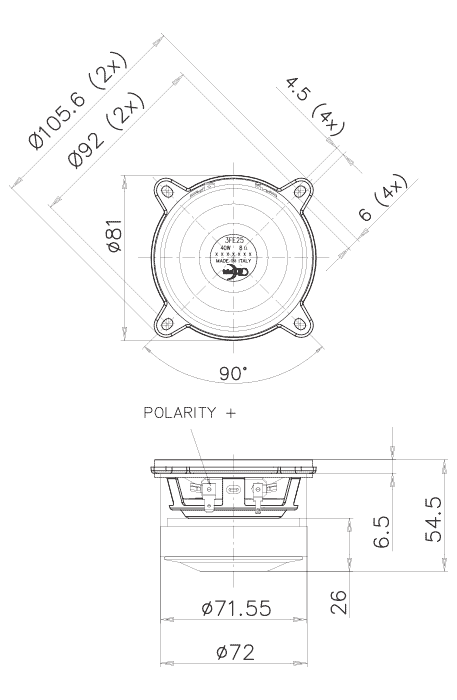

Mechanische Daten 3FE25
| Nominal Diameter | 80 mm (3 in) |
| Overall Diameter | 105.6/81 mm (4.16/3.19 in) |
| Bolt Circle Diameter | 92 mm (3.62 in) |
| Baffle Cutout Diameter | 73.6 mm (2.90 in) |
| Depth | 54.5 mm (2.15 in) |
| Flange and Gasket Thickness | 6.5 mm (0.26 in) |
| Net Weight | 545 g (1.20 lb) |
| Shipping Box (Single Carton Box - 36 units) |
285 x 285 x 255 mm (11.2 x 11.2 x 10.0 in) |
| Shipping Weight (36 units) | 20.8 kg (45.9 lb) |
Faital PRO 3FE25
| Coaxial: | NEIN |
|---|---|
| Größe: | 3" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
| TSP Qts: | 0,601 - 0,99 |
| TSP X-MAX (mm): | 0,1 - 5,0 mm |
