Faital PRO 18HP1060 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
686,00 €*
|
| Bis 4 |
680,00 €*
|
| Bis 6 |
674,00 €*
|
| Ab 7 |
668,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11859
Produktinformationen "Faital PRO 18HP1060 8 Ohm"
Technische Daten Faital PRO 18HP1060 8 Ohm:
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.3 Ohm |
| AES Power Handling | 1200 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 35÷1600 Hz |
| Flux Density | 1.22 T |
| Magnet | Neodymium Ring |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 35 Hz |
| Re | 5 Ohm |
| Qes | 0.38 |
| Qms | 11.1 |
| Qts | 0.37 |
| Vas | 200.3 dm^3 (7.07 ft^3) |
| Sd | 1212 cm^2 (187.86 in^2) |
| Xmax | 12.45 mm |
| Xdamage | 21 mm |
| Mms | 211.8 g |
| Bl | 24.8 N/A |
| Le | 1.26 mH |
| Mmd | 164.1 g |
| Cms | 0.10 mm/N |
| Rms | 4.2 kg/s |
| Eta Zero | 2.20 % |
| EBP | 92 Hz |

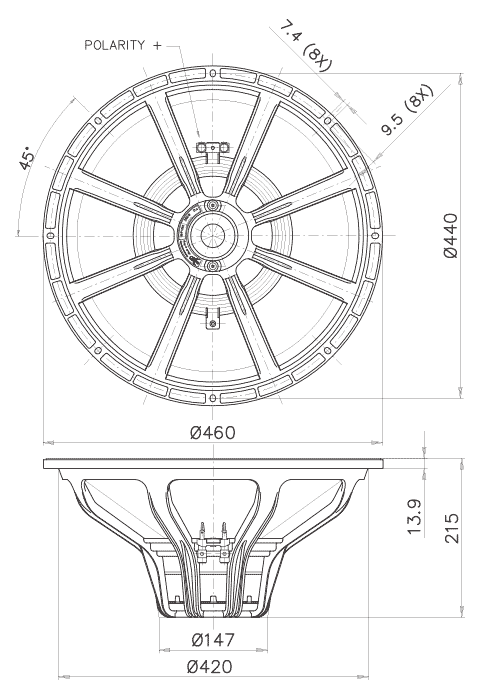

Mechanische Daten:
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 215 mm (8.46 in) |
| Flange and Gasket Thickness | 13.9 mm (0.55 in) |
| Net Weight | 7.3 kg (16.1 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 8.7 kg (19.2 lb) |
Faital Pro 18HP1060
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,36 - 0,40 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
