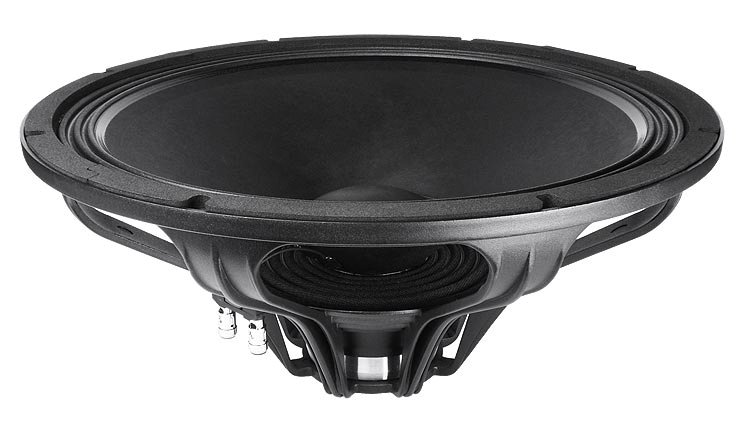

Faital PRO 18FH500 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
424,00 €*
|
| Bis 4 |
420,00 €*
|
| Bis 6 |
417,00 €*
|
| Ab 7 |
413,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11855
Produktinformationen "Faital PRO 18FH500 8 Ohm"
18FH500 - 18" - 600 W - 99 dB - 8 Ohm - 18FH500
Technische Daten Faital PRO 18FH500 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6 Ohm |
| AES Power Handling | 600 W |
| Sensitivity (1W/1m) | 99 dB |
| Frequency Range | 30÷3150 Hz |
| Flux Density | 1.2 T |
| Magnet | Neodymium Slug |
| Demodulation | No |
| Cone Surround | Triple Roll |
| Fs | 30 Hz |
| Re | 5.1 Ohm |
| Qes | 0.36 |
| Qms | 12.5 |
| Qts | 0.35 |
| Vas | 417.9 dm^3 (14.76 ft^3) |
| Sd | 1207 cm^2 (187.09 in^2) |
| Xmax | 9.25 mm |
| Xdamage | 18 mm |
| Mms | 137.0 g |
| Bl | 19 N/A |
| Le | 1.35 mH |
| Mmd | 89.6 g |
| Cms | 0.21 mm/N |
| Rms | 2.1 kg/s |
| Eta Zero | 3.00 % |
| EBP | 83 Hz |
Mechanische Daten 18FH500
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 424 mm (16.7 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 13.9 mm (0.55 in) |
| Net Weight | 4.6 kg (10.1 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 6 kg (13.2 lb) |
Faital Pro 18FH500
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
