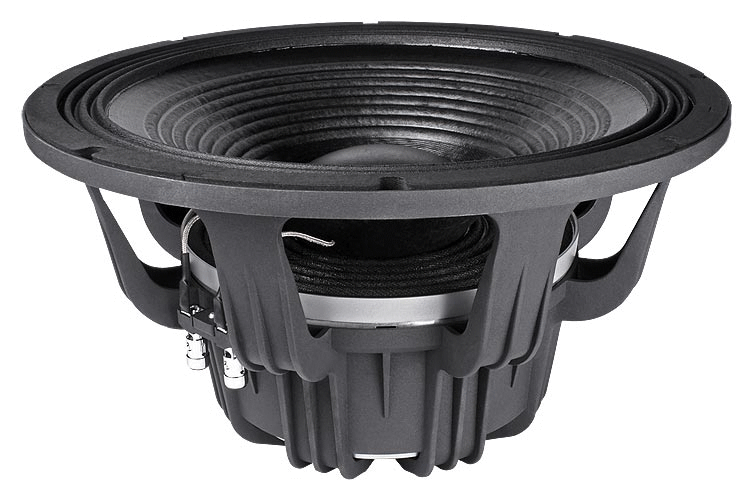

Faital PRO 15XL1400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
752,00 €*
|
| Bis 4 |
745,00 €*
|
| Bis 6 |
739,00 €*
|
| Ab 7 |
732,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11871
Produktinformationen "Faital PRO 15XL1400 8 Ohm"
Technische Daten Faital PRO 15XL1400 8 Ohm:
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7.4 Ohm |
| AES Power Handling | 1400 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 40÷2500 Hz |
| Flux Density | 1.05 T |
| Magnet | Neodymium Slug Crown |
| Demodulation | Triple Al Dem. Ring |
| Cone Surround | Triple Roll |
| Fs | 38 Hz |
| Re | 5.4 Ohm |
| Qes | 0.34 |
| Qms | 10.4 |
| Qts | 0.33 |
| Vas | 91.2 dm^3 (3.22 ft^3) |
| Sd | 841 cm^2 (130.36 in^2) |
| Xmax | 12.92 mm |
| Xdamage | 28 mm |
| Mms | 190.0 g |
| Bl | 26.7 N/A |
| Le | 1.6 mH |
| Mmd | 162.4 g |
| Cms | 0.09 mm/N |
| Rms | 4.4 kg/s |
| Eta Zero | 1.41 % |
| EBP | 112 Hz |

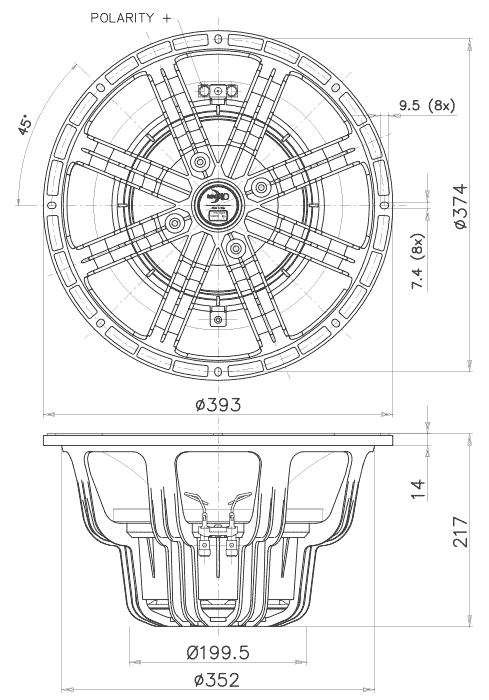

Mechanische Daten:
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Depth | 217 mm (8.54 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 11.8 kg (25.9 lb) |
| Shipping Box (Single Carton Box) |
422 x 417 x 264 mm (16.6 x 16.4 x 10.4 in) |
| Shipping Weight | 13.5 kg (29.8 lb) |
Faital Pro 15XL1400
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
