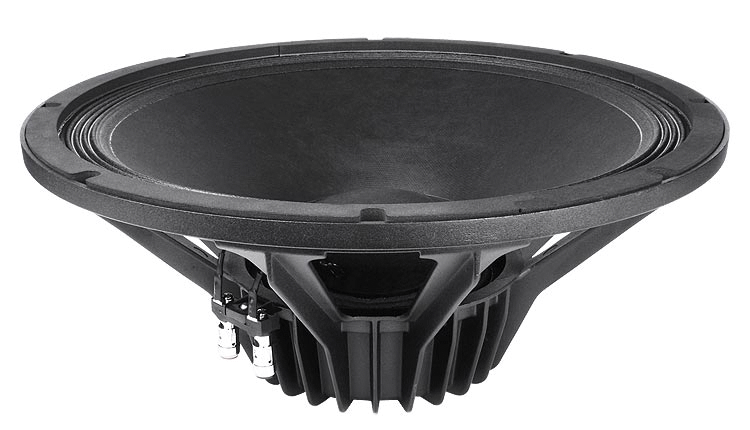

Faital PRO 15PR400 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
343,00 €*
|
| Bis 4 |
340,00 €*
|
| Bis 6 |
337,00 €*
|
| Ab 7 |
334,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11870
Produktinformationen "Faital PRO 15PR400 8 Ohm"
Technische Daten Faital PRO 15PR400 8 Ohm:

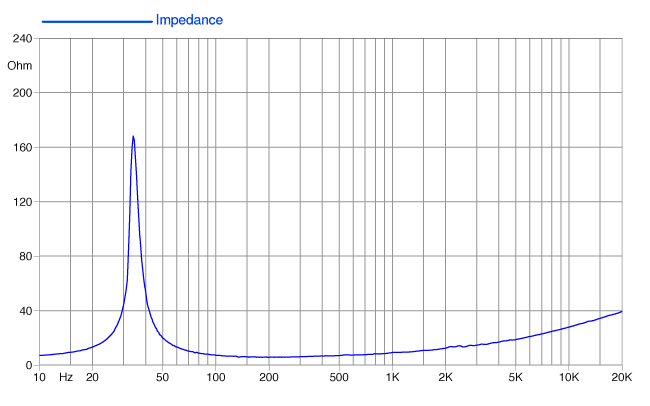

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 5.9 Ohm |
| AES Power Handling | 400 W |
| Sensitivity (1W/1m) | 99 dB |

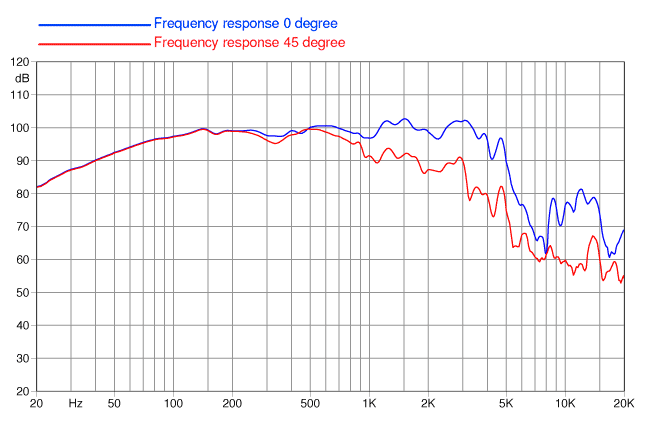

| Frequency Range | 35÷4000 Hz |
| Flux Density | 1.15 T |
| Magnet | Neodymium Slug |
| Demodulation | No |
| Cone Surround | Accordion (4 waves) |
| Fs | 35 Hz |
| Re | 5.1 Ohm |
| Qes | 0.34 |
| Qms | 6.0 |
| Qts | 0.32 |
| Vas | 248.9 dm^3 (8.79 ft^3) |
| Sd | 857 cm^2 (132.84 in^2) |
| Xmax | 5.75 mm |
| Xdamage | 15.5 mm |
| Mms | 85.2 g |
| Bl | 16.7 N/A |
| Le | 0.72 mH |
| Mmd | 56.8 g |
| Cms | 0.24 mm/N |
| Rms | 3.1 kg/s |
| Eta Zero | 3.02 % |
| EBP | 103 Hz |

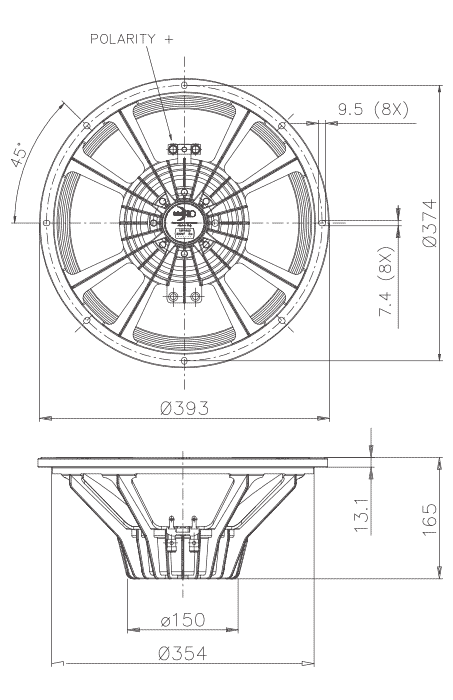

Mechanische Daten:
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 356 mm (14.02 in) |
| Depth | 165 mm (6.50 in) |
| Flange and Gasket Thickness | 13.1 mm (0.52 in) |
| Net Weight | 3.6 kg (7.9 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 4.7 kg (10.4 lb) |
Faital Pro 15PR400
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
