Faital PRO 15HP1060 4 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
606,00 €*
|
| Bis 4 |
601,00 €*
|
| Bis 6 |
595,00 €*
|
| Ab 7 |
590,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11869
Produktinformationen "Faital PRO 15HP1060 4 Ohm"
15HP1060 - 15" - 1000 W - 97 dB - 4 Ohm - 15HP1060
Technische Daten Faital PRO 15HP1060 4 Ohm
| Nominal Impedance | 4 Ohm |
| Minimum Impedance | 3.8 Ohm |
| AES Power Handling | 1000 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 40÷2000 Hz |
| Flux Density | 1.22 T |
| Magnet | Neodymium Ring |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 40 Hz |
| Re | 2.9 Ohm |
| Qes | 0.35 |
| Qms | 10.3 |
| Qts | 0.34 |
| Vas | 76.3 dm^3 (2.69 ft^3) |
| Sd | 842 cm^2 (130.51 in^2) |
| Xmax | 12.45 mm |
| Xdamage | 21 mm |
| Mms | 205.4 g |
| Bl | 20.7 N/A |
| Le | 1.25 mH |
| Mmd | 177.8 g |
| Cms | 0.08 mm/N |
| Rms | 5.0 kg/s |
| Eta Zero | 1.36 % |
| EBP | 114 Hz |

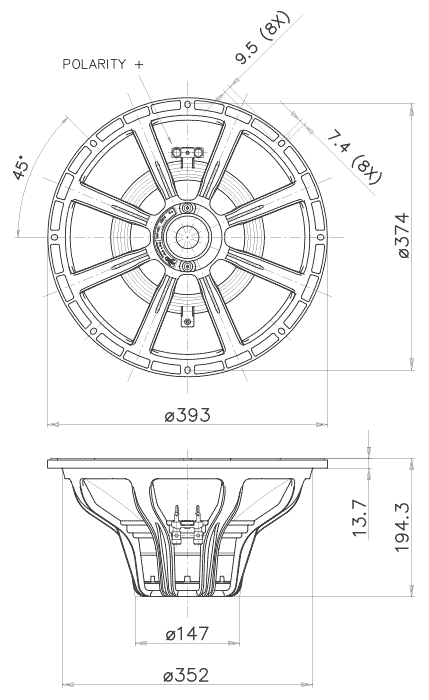

Mechanische Daten 15HP1060
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Depth | 194.3 mm (7.65 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 7.1 kg (15.7 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 8.4 kg (18.5 lb) |
Faital Pro 15HP1060
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 4 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
| TSP Qts: | 0,301 - 0,35 |
| TSP X-MAX (mm): | 10,1 - 15,0 mm |
