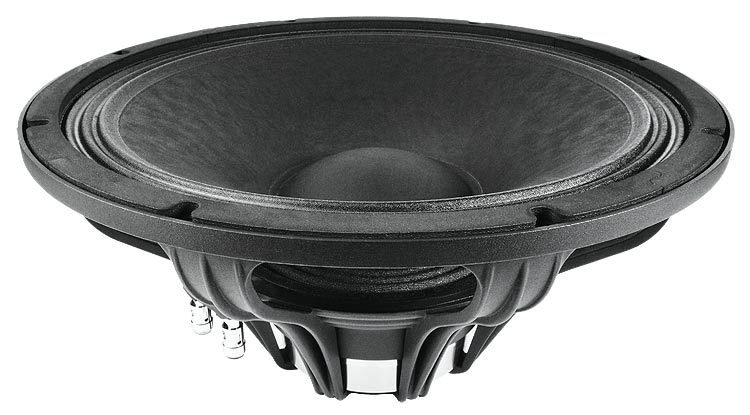

Faital PRO 15HP1020 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
502,00 €*
|
| Bis 4 |
497,50 €*
|
| Bis 6 |
493,00 €*
|
| Ab 7 |
489,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11866
Produktinformationen "Faital PRO 15HP1020 8 Ohm"
15HP1020 - 15" - 700 W - 98 dB - 8 Ohm - 15HP1020
Technische Daten Faital PRO 15HP1020 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling | 700 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 40÷4000 Hz |
| Flux Density | 1.3 T |
| Magnet | Neodymium Slug |
| Demodulation | No |
| Cone Surround | Triple Roll |
| Fs | 40 Hz |
| Re | 5.5 Ohm |
| Qes | 0.28 |
| Qms | 10.2 |
| Qts | 0.27 |
| Vas | 126.6 dm^3 (4.47 ft^3) |
| Sd | 822 cm^2 (127.41 in^2) |
| Xmax | 9.00 mm |
| Xdamage | 16 mm |
| Mms | 118.0 g |
| Bl | 24.2 N/A |
| Le | 1.2 mH |
| Mmd | 91.4 g |
| Cms | 0.13 mm/N |
| Rms | 2.9 kg/s |
| Eta Zero | 2.82 % |
| EBP | 143 Hz |

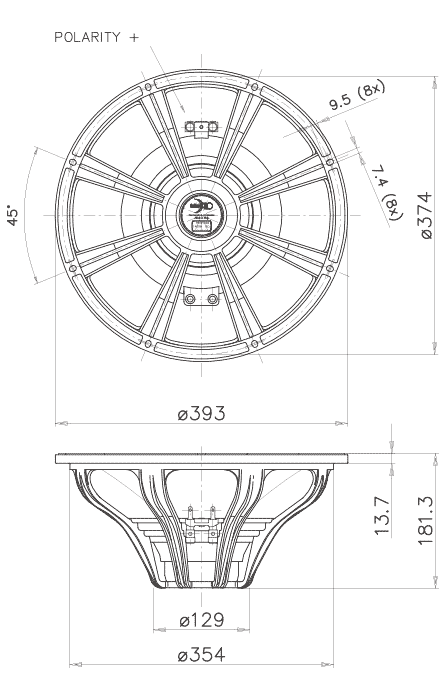

Mechanische Daten 15HP1020
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 356 mm (14.02 in) |
| Depth | 181.3 mm (7.14 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 6.2 kg (13.6 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 7.2 kg (15.9 lb) |
Faital Pro 15HP1020
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
