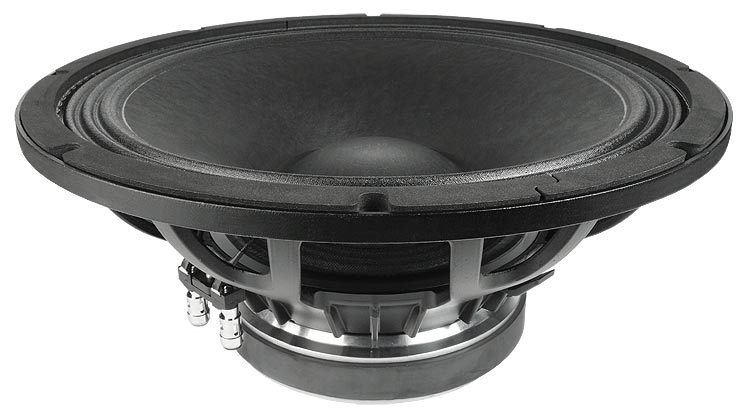

Faital PRO 15HP1010 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
332,00 €*
|
| Bis 4 |
329,00 €*
|
| Bis 6 |
326,00 €*
|
| Ab 7 |
323,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11865
Produktinformationen "Faital PRO 15HP1010 8 Ohm"
15HP1010 - 15" - 700 W - 96 dB - 8 Ohm - 15HP1010
Technische Daten Faital PRO 15HP1010 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling | 700 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 40÷2500 Hz |
| Flux Density | 1.05 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | Triple Roll |
| Fs | 40 Hz |
| Re | 5.3 Ohm |
| Qes | 0.38 |
| Qms | 10.0 |
| Qts | 0.37 |
| Vas | 107.5 dm^3 (3.80 ft^3) |
| Sd | 822 cm^2 (127.41 in^2) |
| Xmax | 9.75 mm |
| Xdamage | 21.9 mm |
| Mms | 138.9 g |
| Bl | 22 N/A |
| Le | 1.8 mH |
| Mmd | 112.3 g |
| Cms | 0.11 mm/N |
| Rms | 3.5 kg/s |
| Eta Zero | 1.75 % |
| EBP | 105 Hz |

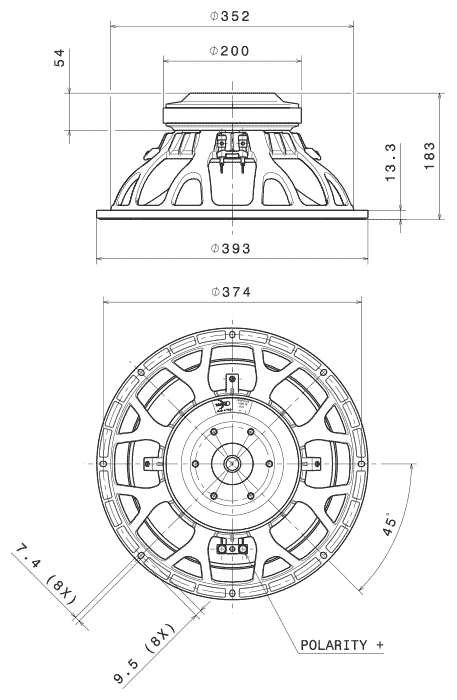

Mechanische Daten 15HP1010
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Depth | 183 mm (7.20 in) |
| Flange and Gasket Thickness | 13.3 mm (0.52 in) |
| Net Weight | 9.8 kg (21.5 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 10.8 kg (23.8 lb) |
Faital Pro 15HP1010
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,36 - 0,40 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
