Faital PRO 12HP1010 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
310,00 €*
|
| Bis 4 |
307,50 €*
|
| Bis 6 |
305,00 €*
|
| Ab 7 |
302,50 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11875
Produktinformationen "Faital PRO 12HP1010 8 Ohm"
12HP1010 - 12" - 700 W - 96 dB - 8 Ohm - 12HP1010
Technische Daten Faital PRO 12HP1010 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 7 Ohm |
| AES Power Handling | 700 W |
| Sensitivity (1W/1m) | 96 dB |
| Frequency Range | 45÷3150 Hz |
| Flux Density | 1.05 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | M-Roll |
| Fs | 45 Hz |
| Re | 5.5 Ohm |
| Qes | 0.35 |
| Qms | 9.4 |
| Qts | 0.34 |
| Vas | 56.5 dm^3 (1.99 ft^3) |
| Sd | 531 cm^2 (82.31 in^2) |
| Xmax | 9.25 mm |
| Xdamage | 21.9 mm |
| Mms | 87.2 g |
| Bl | 19.8 N/A |
| Le | 1.33 mH |
| Mmd | 73.4 g |
| Cms | 0.14 mm/N |
| Rms | 2.6 kg/s |
| Eta Zero | 1.44 % |
| EBP | 129 Hz |

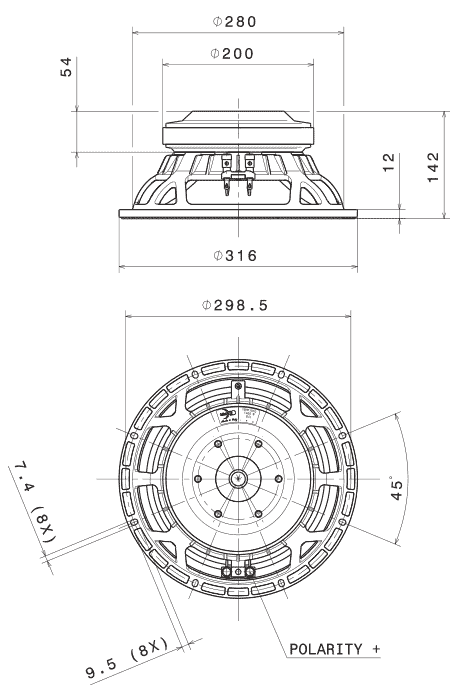

Mechanische Daten 12HP1010
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 282 mm (11.10 in) |
| Depth | 142 mm (5.59 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 9.2 kg (20.3 lb) |
| Shipping Box (Single Carton Box) |
350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) |
| Shipping Weight | 10 kg (22.0 lb) |
Faital Pro 12HP1010
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
